Xrnm 3.6/7.2/12kv/40.5kv Hrc Fuse Hhbm High Voltage Motor Application
Model meaning:
XRNM 3.6/7.2/12kV/40.5kV HHBM High voltage MOTOR Application hrc fuse:
The product is used in the power supply system of indoor AC 50Hz,rated voltage 12KV,24KV,40.5KV,cooperated with other protective appliances(I.E. load break switch,vacuum contactor),to protect power transformer and other electric equipment against overloading or short circuit fault.
Rated current and voltage:
| Model | Rated voltage(kV) | Rated current (A) | Fuse size( ΦD*L ) | Rated breaking current (kA) |
| XRNM1-3.6(WFFDJ) | 3.6 | 50, 63, 80, 100 | Φ51*255 | 50 |
| 125, 160, 200, 250, 315, 355, 400 | Φ76*255 | |||
| XRNM1-7.2(WFLDJ) | 7.2 | 25, 31.5, 40, 50, 63, 80, 100, 125 | Φ76*292 | |
| 160, 200 , 250 | Φ88*292 | |||
| XRNM1-12 | 12 | 25, 31.5, 40, 50, 63, 80, 100, 125, 160 | Φ76*403 | |
| 160, 200, 225, 250 | Φ88*403 |
Fuse Dimension(mm):
| Model | Rated voltage(kV) | Rated current (A) | Fuse size( ΦD*L ) | Rated breaking current (kA) |
| XRNM1-3.6(WFFDJ) | 3.6 | 50, 63, 80, 100 | Φ51*255 | 50 |
| 125, 160, 200, 250, 315, 355, 400 | Φ76*255 | |||
| XRNM1-7.2(WFLDJ) | 7.2 | 25, 31.5, 40, 50, 63, 80, 100, 125 | Φ76*292 | |
| 160, 200 , 250 | Φ88*292 | |||
| XRNM1-12 | 12 | 25, 31.5, 40, 50, 63, 80, 100, 125, 160 | Φ76*403 | |
| 160, 200, 225, 250 |
Φ88*403 |
Busbar Fuse Dimension(mm):
| Model | International model | Rated current(A) | Fuse size(mm) | Rated breaking current |
| XRNM1-7.2 | WDNHO | 25, 31.5, 40, 50, 63 | Φ51*403 | 50KA |
| WFNHO | 80, 100, 125, 160, 200 | Φ76*403 | ||
| WKNHO | 224, 250, 315 | Φ76*403 | ||
| 355, 400 | Φ88*403 | |||
| XRNM1-12 | 25, 31.5, 40, 50 | Φ76*403 | ||
| 63, 80, 100, 125, 160 | ||||
| 200, 224, 250 | Φ88*403 |

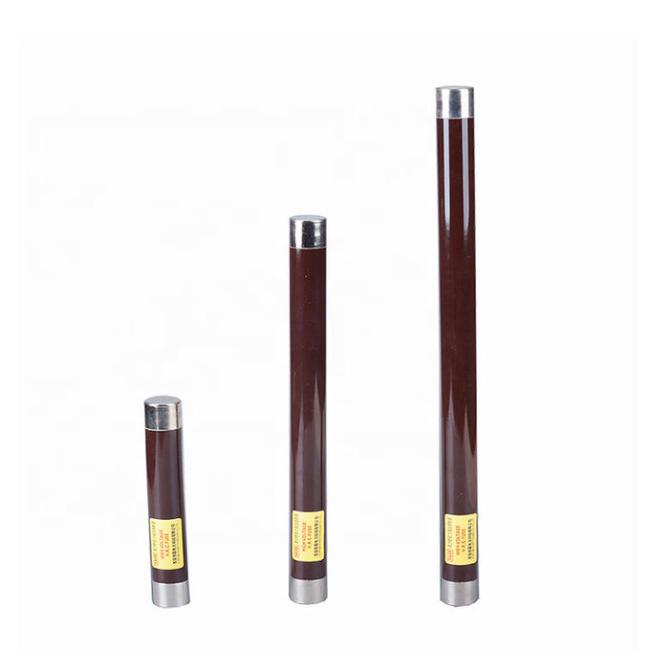

Product photos:
Related fuse link:
Company:
1Q:What can I do if I got a broken product from DONGGUAN TIANRUI?
A:First of all please tell us as soon as possible after we send a new one to you immediately but please send the broken product to us.You don't have to worry about the carriage charge we will pay for that.
2Q:Are we a trader or manufacturer?
A:Both
3Q:Why do you have choose us?
A:High quality. Competive price. Fast shipping.
4Q:Any approvals?
A:ROHS of XRNM 3.6/7.2/12kV/40.5kV HHBM High voltage MOTOR Application hrc fuse
