PTF30 5x20MM Glass Ceramic Black Insurance Tube Socket Panel Mounting Fuse Holder

The PTF30 is a panel mount fuse holder for use with 5x20mm glass fuses. This panel mount fuse holder has a convenient 16 mm diameter finger grip cap that makes installation and removal of 5 X 20mm Glass fuses quick and easy. This short body panel mount fuse holder mounts through a 13mm hole and is secured with a locknut. This panel mount fuse holder is ideal for mounting through 0.8mm to 2.8mm panel walls, is UL rated at 10 amps at 250 volts and has solder connectors. The finger grip cap holds the 5x20mm glass fuses. Fuses are sold separately.

Specification

For 5X20mm

Current: 10A

Voltage: 250V AC

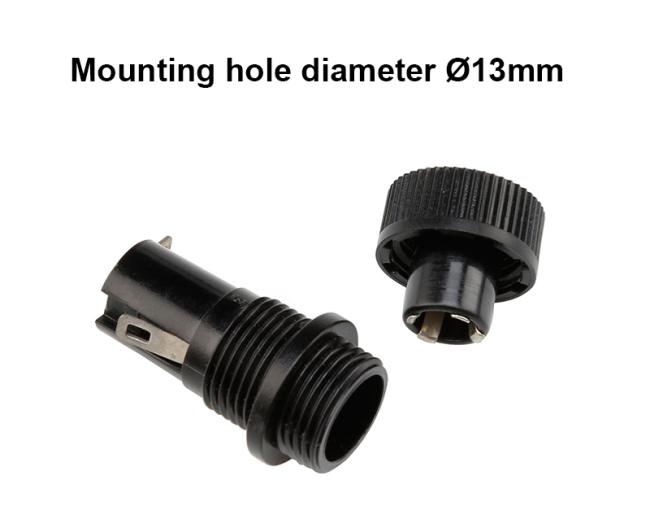

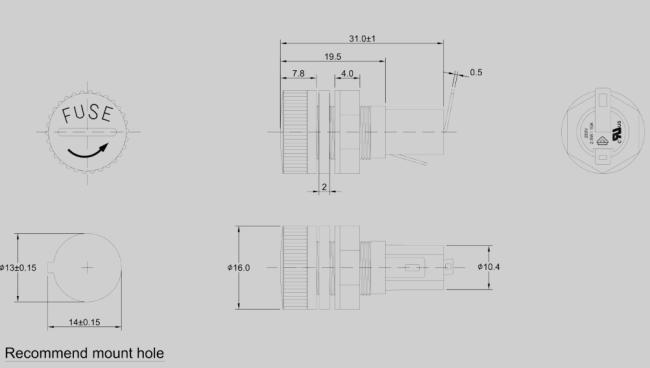

Opening: 13mm

Mounting way: Screw mount

Operation temperature:-30C to +85C

Certificate: UL

Protection against electric shock: I-II

Impulse withstand between terminals: > 4.0 kV

Housing: High temperature resisting flame-retarded plastic

Note: This item is suitable for 5 x 20mm Glass Tube Fuse, but the fuse is not included.

Fearures

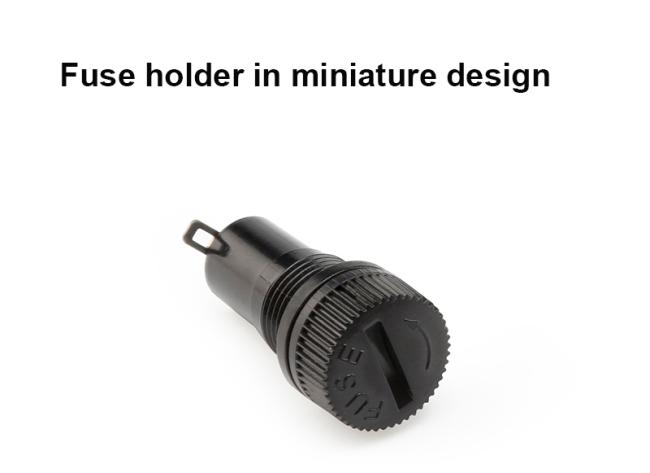

•Fuse holder in miniature design

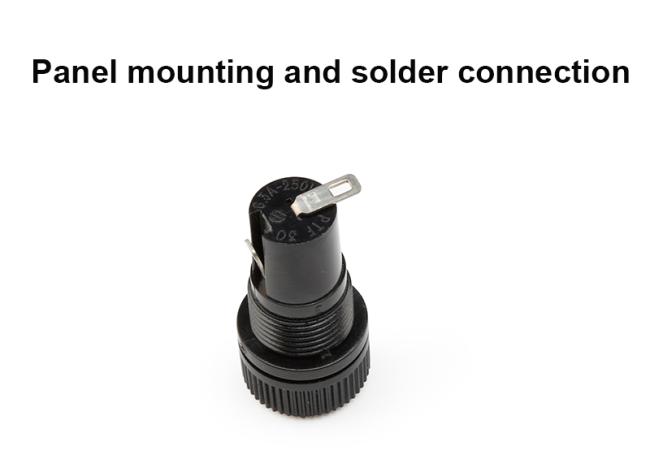

•Panel mounting and solder connection

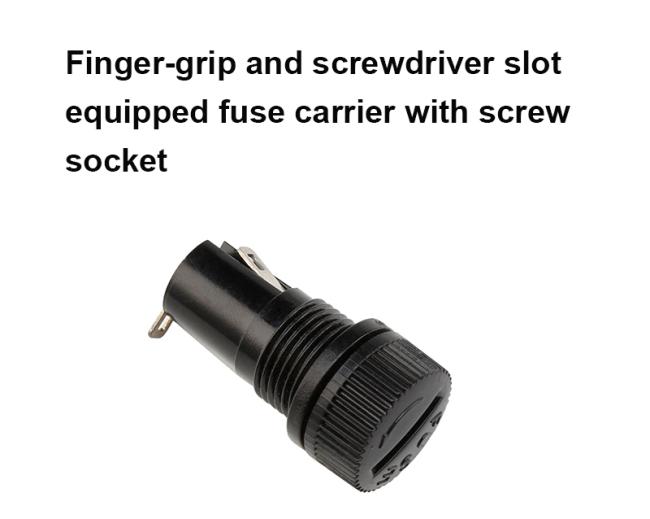

•Finger-grip and screwdriver slot equipped fuse carrier with screw socket

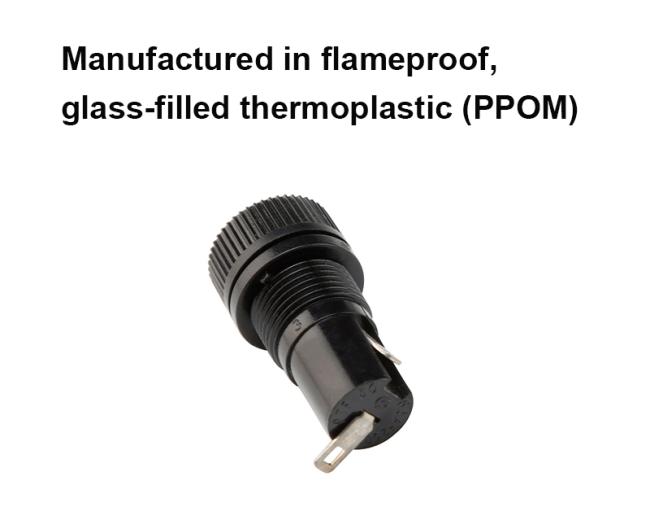

•Manufactured in flameproof, glass-filled thermoplastic (PPOM)
•Length in front of panel 13 mm

Application

Electrical equipment, such as power amplifiers, DVDs, speakers, massage chairs and other electrical equipment
