PBT Housing Brass Terminal PCB Mounted Fuse Holder 10A 250VAC 5X20mm H3-56A
PBT Housing Brass Terminal PCB Mounted Fuse Holder 10A 250VAC 5X20mm H3-56A
H3-56A fuse holder is a simple device that do an extremely important job. They provide a housing for a fuse to act as safety device within a wiring circuit for when power loads exceed the safe level for electronic components.

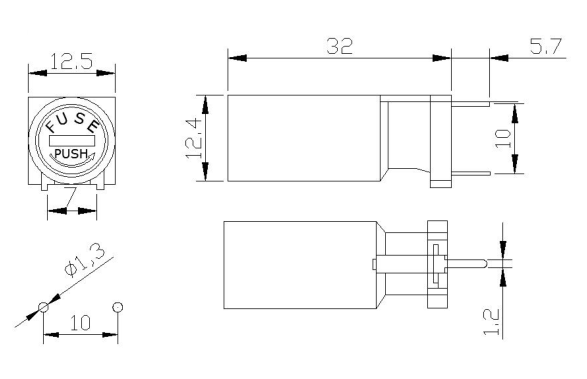

Specification
| Model | H3-56A |
| Type | PCB mount fuse holder |
| Rated Current | 10A |
| Rated Voltage | 250V |
| Fuse Size | 5x20mm |
| Material | PBT |
| Colour | Black |
Product features
1. Fuse holder installed on PCB board;

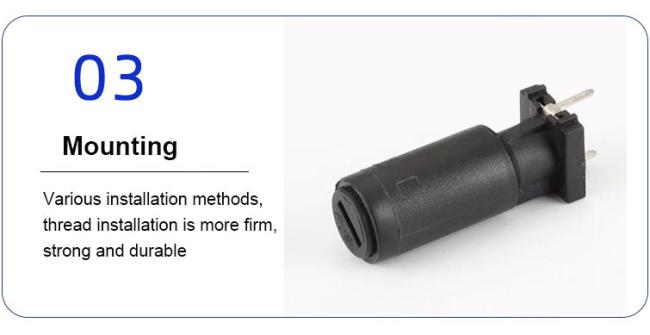

2. Used in horizontal and vertical directions;
3. Suitable for 5x20mm ring fuse or 1/4 "x 1-1/4" fuse.
4. Fuse holder is interchangeable.This is the RoHS compliant fuse fitting.
It's time to make it easier, safer and cheaper to install glass fuses on printed circuit boards.
Welcome to use hinew's h3-56 PCB fuse holder, suitable for 5x20mm glass fuse.
Advantage
1. Adopt unique one-piece design, eliminate all problems related to using fuse clip on PCB.
2, easier to install, lower cost, easy to install and remove glass fuse, more secure.
3. The rated value of the PCB mounting fuse holder is 10A and 250Vac

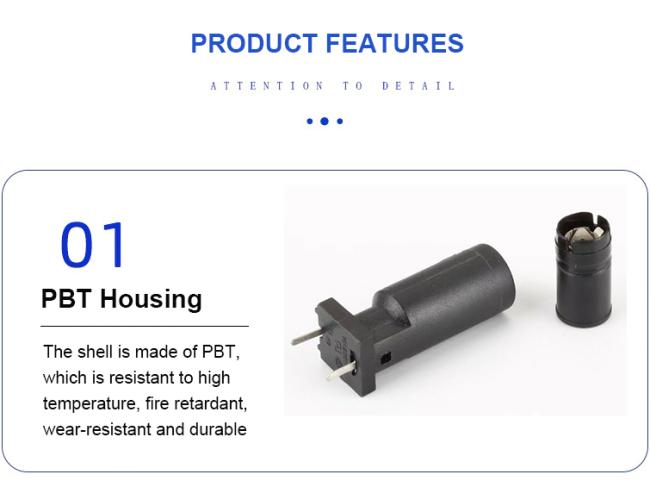

4. This PCB fuse holder is made of hot silicone PBT and brass material. They can provide :-20 ° c-150 ° C.
Application
Electrical equipment, such as power amplifiers, DVDs, speakers, massage chairs and other electrical equipment
