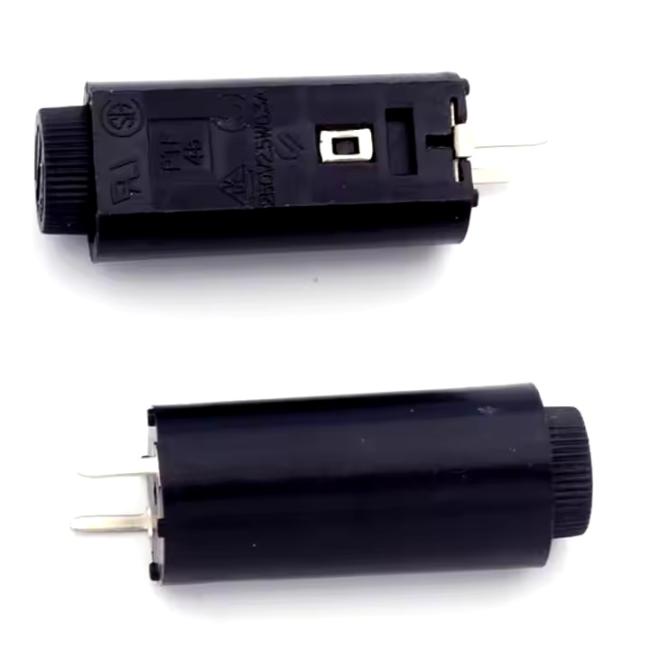

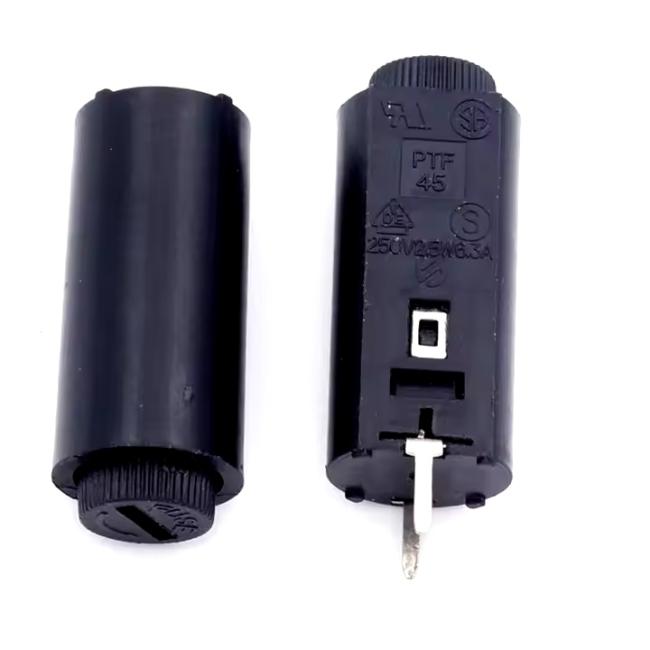

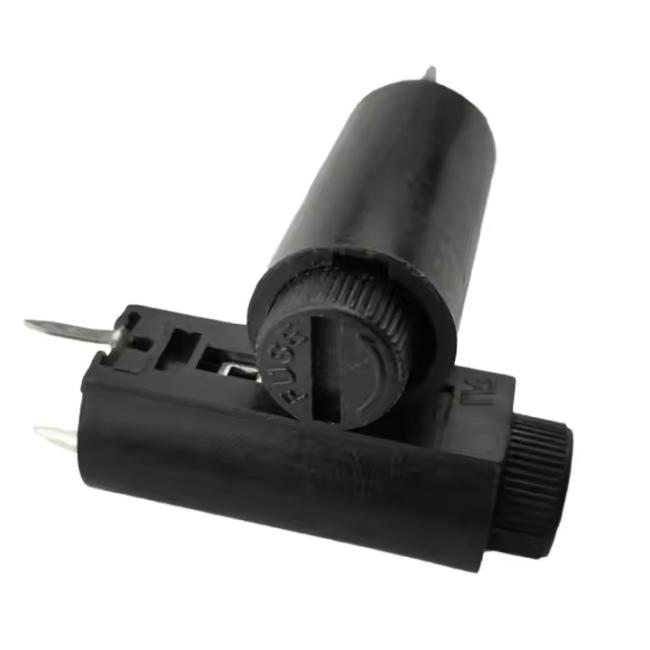

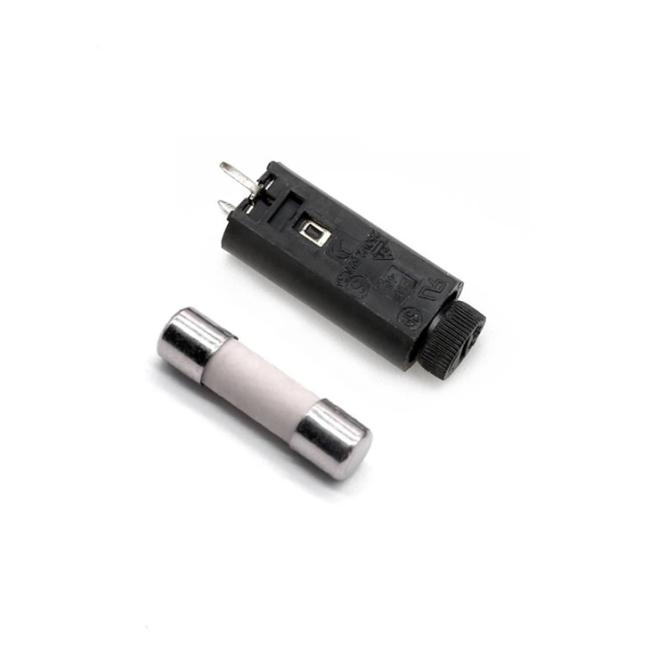

Photos of PTF-45 Bayonet 5.2x20mm PCB Mount Fuse Holder 6.3A 250V Insulation Resistance

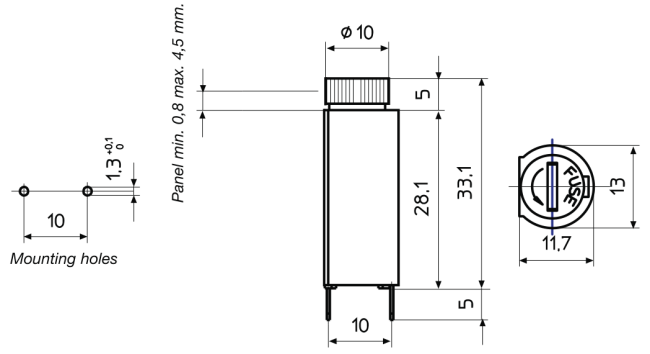

Size(mm) of PTF-45 Bayonet 5.2x20mm PCB Mount Fuse Holder 6.3A 250V Insulation Resistance

Product features

1. Fuse holder installed on PCB board;

2. Used in horizontal and vertical directions;

3. Suitable for 5*20mm fuse .

4. Fuse holder is interchangeable.This is the RoHS compliant fuse fitting.

It's time to make it easier, safer and cheaper to install glass fuses on printed circuit boards.

Advantage

1. Adopt unique one-piece design, eliminate all problems related to using fuse clip on PCB.

2, easier to install, lower cost, easy to install and remove glass fuse, more secure.

3. The rated value of the PCB mounting fuse holder is 16A and 250Vac

4. This PCB fuse holder is made of hot silicone PBT and brass material. They can provide :-20 ° c-150 ° C.

Application

Electrical equipment, such as power amplifiers, DVDs, speakers, massage chairs and other electrical equipment
