Yellow Orange Plastic Waterproof Inline Glass Fuse holder For 6 X 30mm Fuse

Photos

Features

Housing: PVC, flame retardant 94 V0, environmental protection,heat dissipation.

Terminal: H62 brass nickel plating

UL standard wire 8~14AWG is exposed at both ends (can be adapted according to customer requirements).

Lead Pull Strength 200N for 10±1 Seconds

The waterproof seat is repeatedly pulled out and tested 1000 times, and the sealing strength is always maintained. The waterproof grade meets the waterproof requirement of IP67.

Unplug the fuse holder, put the 10*38 fuse into the fuse box, press the upper and lower cover tightly, and then install the buckle. Connect the fuse box with the fuse leads at both ends in series in the circuit that needs protection.

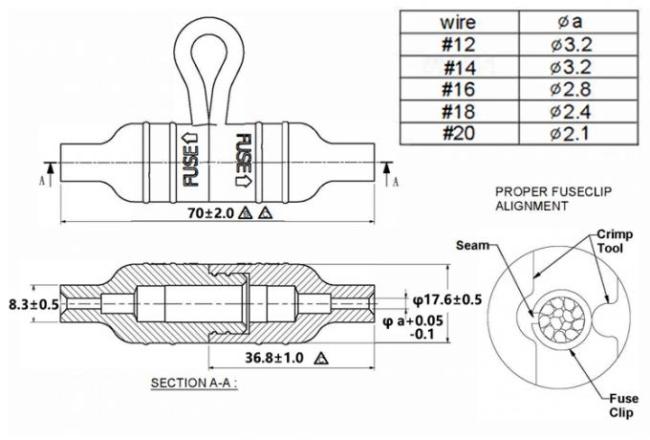

Size

Related types

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we can offer free sample if small amount but do not pay the cost of freight.
