XRNT current limiting high-voltage fuses 40.5KV 3.15A 6.3A 10A 16A 20A 25A 31.5A 40A 50A 63A 80A 100A 125A 160A 200A

XRNT High Voltage HRC Fuse with Striker

This product can be used in indoor electrical system of ac 50HZ and rated voltage of 3.6~40.5KV for over-loading or short circuit protection for transformers and other appliance. XRNT high voltage fuses are designed with the plug-in structure and to be inserted into the holder, which is easy for replacement.

**Key Characteristics of High-Voltage Current-Limiting Fuses**
1. **Rated Voltage**:
- These fuses are designed for high-voltage systems, typically ranging from a few kilovolts (kV) to tens of kilovolts, depending on the transformer's voltage rating.

2. **Current Rating**:
- The fuse is selected based on the transformer's rated current and the expected fault current levels in the system.

3. **Breaking Capacity**:
- High-voltage fuses have a high breaking capacity to interrupt large fault currents safely.

4. **Current-Limiting Ability**:
- They limit the peak current during a fault, reducing the thermal and mechanical stress on the transformer and other equipment.

5. **Time-Current Characteristics**:
- The fuse operates within a specific time frame based on the magnitude of the overcurrent, ensuring fast operation during severe faults.

6. **Construction**:
- High-voltage fuses are typically filled with silica sand to absorb the energy of the arc and quench it quickly.

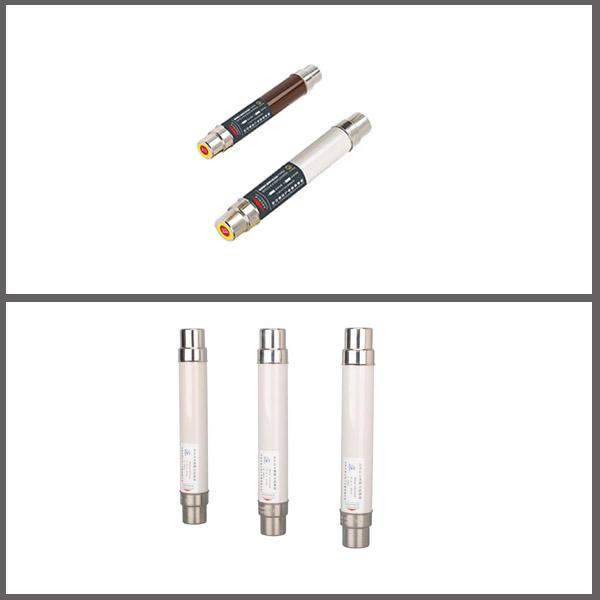

Pictures of XRNT HRC fuses

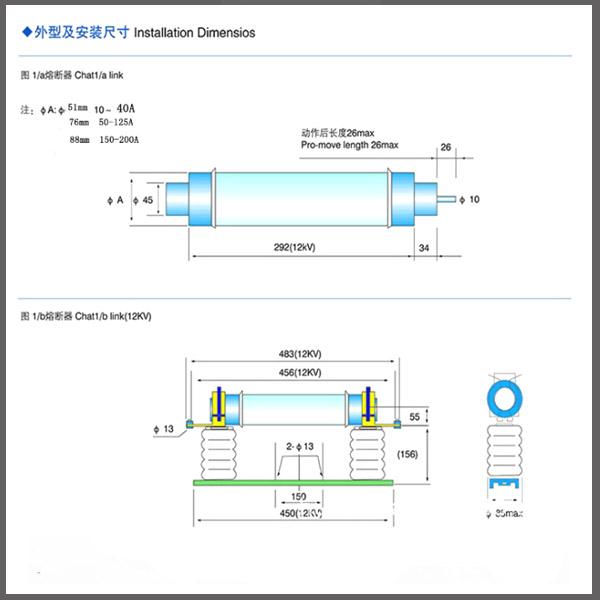

3.15A 6.3A 10A 16A 20A 25A 31.5A 40A

Diameter: 51mm

50A 63A 80A 100A 125A

Diameter: 76mm

160A 200A 250A

Diamter: 88mm

12KV

Length: 292mm

24KV

Length: 442mm

36KV/ 40.5KV

Length: 537mm

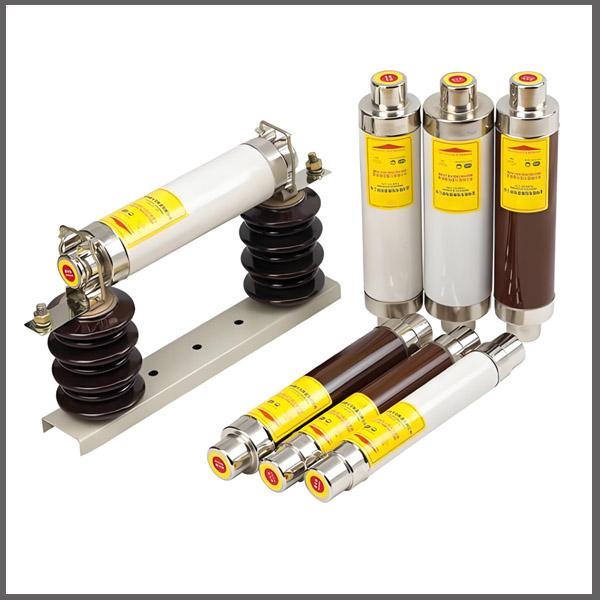

XRNT High Voltage HRC Fuse with Striker

**Applications**
- Power transformers in substations.
- Distribution transformers in industrial and commercial facilities.
- Renewable energy systems (e.g., wind or solar farms).
