XRNP1 XRNP2 XRNP3 XRNP6 7.2V 0.2A 0.3A 0.5A 1A 2A 3.15A 4A 5A 6.3A 50kA H.R.C. High Voltage Fuse Tube
| Type | Rated Voltage | Rated Current(A) |
Diameter (mm) |
Length (mm) |
Breaking Capacity |
| XRNP1 | 3.6KV | 0.2A,0.3A,0.5A,1A,2A,3.5A,4A,5A,6.3A | 25mm | 195 | 31.5KA 50KA |
| XRNP1 | 7.2KV |
0.2A,0.3A,0.5A,1A,2A,3.5A,4A,5A,6.3A |
25mm | 195 | 31.5KA 50KA |
| XRNP1 | 12KV |
0.2A,0.3A,0.5A,1A,2A,3.5A,4A,5A,6.3A |
25mm | 195 | 31.5KA 50KA |
| XRNP1 | 24KV | 0.2A,0.3A,0.5A,1A,2A,3.5A,4A,5A,6.3A | 25mm | 354 | 31.5KA 50KA |
| XRNP1 | 40.5KV | 0.2A,0.3A,0.5A,1A,2A,3.5A,4A,5A,6.3A | 25mm | 465 | 31.5KA 50KA |
| XRNP2 | 3.6KV | 0.5A,1A,2A,3.15A,4A,5A,6.3A,10A | 51mm | 192 | 31.5KA 50KA |
| XRNP2 | 7.2KV | 0.5A,1A,2A,3.15A,4A,5A,6.3A,10A | 51mm | 192 | 31.5KA 50KA |
| XRNP2 | 12KV | 0.5A,1A,2A,3.15A,4A,5A,6.3A,10A | 51mm | 192 | 31.5KA 50KA |
| XRNP2 | 24KV |
0.5A,1A,2A,3.15A,4A,5A,6.3A |
51mm | 367 | 31.5KA 50KA |
| XRNP2 | 40.5KV | 0.5A,1A,2A,3.15A,4A,5A,6.3A | 51mm | 442 | 31.5KA 50KA |
| XRNP3 | 40.5KV | 0.5A,1A,2A,3.15A,4A,5A,6.3A | 41mm | 440 | 31.5KA 50KA |
| XRNP6 | 40.5KV | 0.5A,1A,2A,3.15A,4A,5A,6.3A | 40 | 440 | 31.5KA 50KA |
Basic Parameters
Function: current limiting
Placement: indoors
Applicable objects: inductor, transformer
Rated voltage : 3.6KV, 7.2KV, 12KV, 24KV, 40.5KV
Rated current : 0.2A, 0.3A, 0.5A, 1A, 2A, 3.15A, 5A, 6.3A
Breaking Capacity: 31.5KA, 50KA
Length of fuse link: 192mm,195mm, 354mm, 367mm,440mm, 442mm, 465mm
Diameter of fuse link: Φ25mm, Φ40mm,Φ51mm
Customized length and diameter are available.
Features
High breaking capacity and good current limiting effect.
Low power consumption and low temperature rise.
The action characteristics are fast, and the ampere-second characteristic error is less than ±10%.

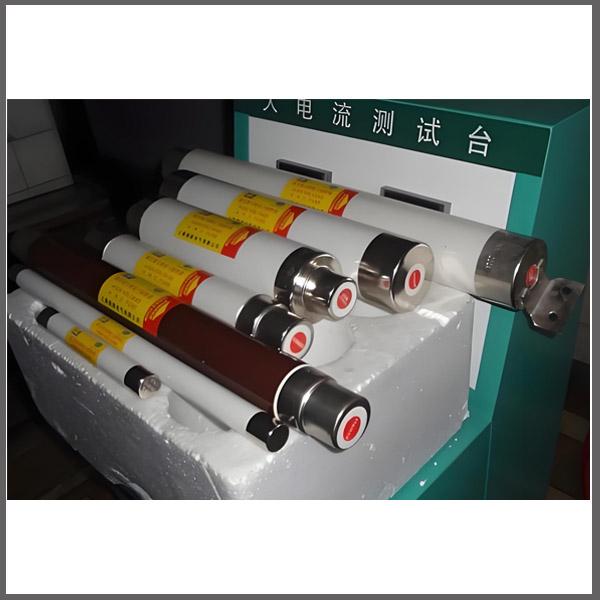

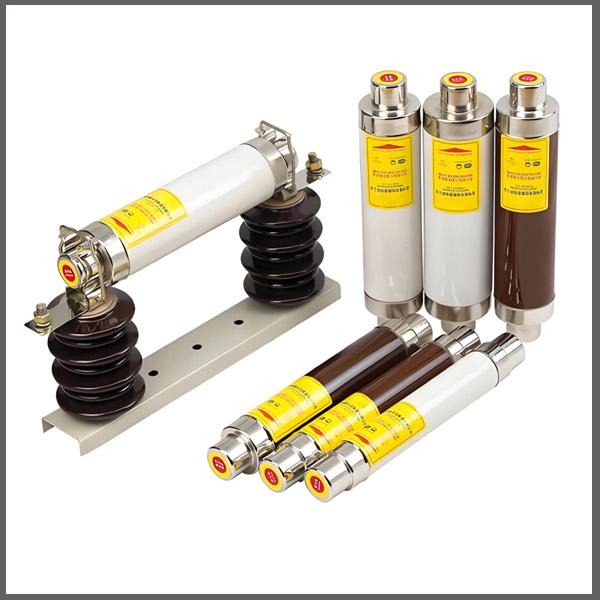

Pictures of XRNP HRC fuses
