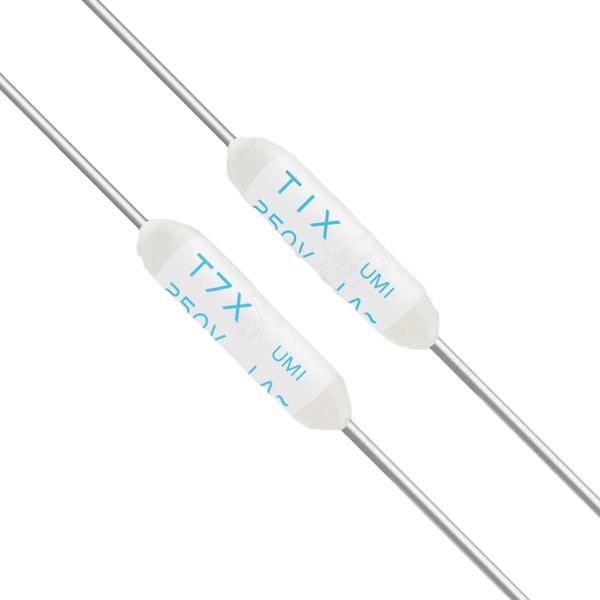

UMI TAM 1A 1.5A 2A 250V Thermal Cutoff Fuse T1X 86C T2X 102C T9X 126C T7X 145C
Price:
USD0.15~0.2/pc
MOQ:
1000
Delivery Time:
10 working days
Brand:
UMI
Product Description
UMI TAM 1A 1.5A 2A 250V Thermal Cutoff Fuse T1X 86C T2X 102C T9X 126C T7X 145C
Product Description:
This type of thermal fuse is a safety device designed to protect electrical appliances and equipment from overheating by interrupting the circuit when a specific temperature threshold is exceeded.
Features:
- The fuse is calibrated to respond to a specific temperature.
- Ceramic case, heating response quickly.
- Stable operation and high precision.
- Small and lightweight, making it easy to integrate into various devices.
- Free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant.
- Epoxy resin sealing.
- Very simple structure, the product is less affected by time changes, and the reliability is high.
UMI TAM 1A 1.5A 2A 250V Thermal Cutoff Fuse T1X 86C T2X 102C T9X 126C T7X 145C
| Wire length | Dimensions (mm) | ||||
| A | B | C | D | E | |
| Standard (TX) | 6.3±0.3 | 2.0±0.1 | 2.3 or below | 0.53±0.05 | 38±3.0 |
Specification:
| Model | Temperature rating Tf(℃) |
Operating temperature (℃) |
Maintain temperature Th(℃) |
Maximum operating temperature (℃) |
Maximum limit temperature Tm(℃) |
Current rating (A) |
Rated voltage (V) |
| T1X | 86 | 81±2 | 60 | 55 | 200 | 1.0 | AC250 |
| T2X | 102 | 98±3 | 73 | 70 | 200 | 2.0 | AC250 |
| T9X | 126 | 122±3 | 102 | 90 | 200 | 1.5 | AC250 |
| T7X | 145 | 140±2 | 125 | 115 | 200 | 1.0 | AC250 |
Certifications:
| Model | Get certified | |||||||
| PSE | UL | C-UL | VDE | Self-certification | KC | |||
| T1X | JET5823-32001-1002A-1 | E73591 | E73591 | 40009915 | 2020980205000110 | SU05028-10002E | ||
| T2X | JET5823-32001-1003A-1 | E73591 | E73591 | 40009915 | 2020980205000109 | SU05028-10001E | ||
| T9X | JET5823-32001-1004 | E73591 | E73591 | - | - | - | ||
| T7X | JET5823-32001-1005A-1 | E73591 | E73591 | 40009915 | 2020980205000110 | SU05028-10004F | ||
Working Principle
When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.
UMI TAM 1A 1.5A 2A 250V Thermal Cutoff Fuse T1X 86C T2X 102C T9X 126C T7X 145C
Various types of Thermal Fuse Links are available
