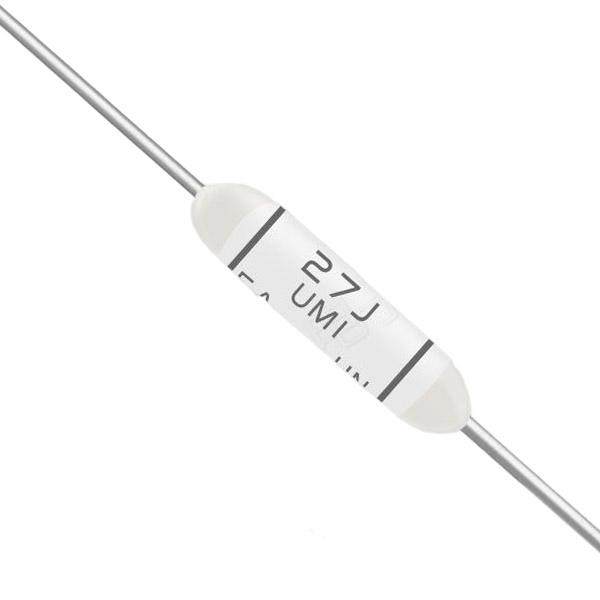

UMI TAM 27 Series Thermal Link Fuse 5A 5.5A 10A 250V 27R 27E 272 27T 27J Thermal Fuse
Price:
USD0.15~0.2/pc
MOQ:
1000
Delivery Time:
10 working days
Brand:
UMI
Product Description
UMI TAM 27 Series Thermal Link Fuse 5A 5.5A 10A 250V 27R 27E 272 27T 27J Thermal Fuse
Product Description:
A thermal fuse, also known as a thermal cutoff or thermal link, is a safety device used to protect electrical appliances and circuits from overheating. It operates by interrupting the electrical current when the temperature exceeds a predetermined threshold, thereby preventing potential fire hazards or damage to the equipment.
Features:
- ■It is a non-resettable thermal fuse, which uses a fusible alloy as a thermal element.
■It is free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant
■ Very simple structure to ensure reliability and sealing of the heat-sensitive element reduces deterioration with age.
■It has excellent thermal properties.
■ It uses an insulated container.
| Wire length | Dimensions (mm) | ||||
| A | B | C | D | E | |
| standard | 11.5±0.5 | 34.3±3.0 | 3.3±0.2 | 3.6 or below | 1.0±0.05 |
| Long | 11.5±0.5 | 67±3.0 | 3.3±0.2 | 3.6 or below | 1.0±0.05 |
Specification:
| Model | Temperature rating Tf(℃) |
Operating temperature (℃) |
Maintain temperature Th(℃) |
Maximum operating temperature (℃) |
Maximum limit temperature Tm(℃) |
Current rating (A) |
Rated voltage (V) |
| 27R | 102 | 98±3 | 54 | 48 | 200 | 10.0 | AC250 |
| 27E | 108 | 105±3 | 69 | 62 | 200 | 10.0 | AC250 |
| 272 | 115 | 112±3 | 78 | 71 | 200 | 10.0 | AC250 |
| 27T | 134 | 130±3 | 107 | 102 | 200 | 5.5 | AC250 |
| 27J | 145 | 141±3 | 123 | 118 | 200 | 5.0 | AC250 |
Certifications:
| Model | Get certified | |||||||
| PSE | UL | C-UL | VDE | Self-certification | KC | |||
| 27R | JET5267-32001-2006 | E50082 | E50082 | 40033538 | 2020980205000077 | SU05029-13001 | ||
| 27E | JET5267-32001-2006 | E50082 | E50082 | 40033538 | 2020980205000077 | SU05029-13001*1 | ||
| 272 | JET5267-32001-2006 | E50082 | E50082 | 40033538 | 2020980205000077 | SU05029-13001*1 | ||
| 27T | JET5267-32001-2003 | E50082 | E50082 | 40033538 | 2020980205000077 | SU05029-13002 | ||
| 27J | JET5267-32001-2004 | E50082 | E50082 | 40033538 | 2020980205000077 | SU05029-8001 | ||
Working Principle
When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.
UMI TAM 27 Series Thermal Link Fuse 5A 5.5A 10A 250V 27R 27E 272 27T 27J Thermal Fuse

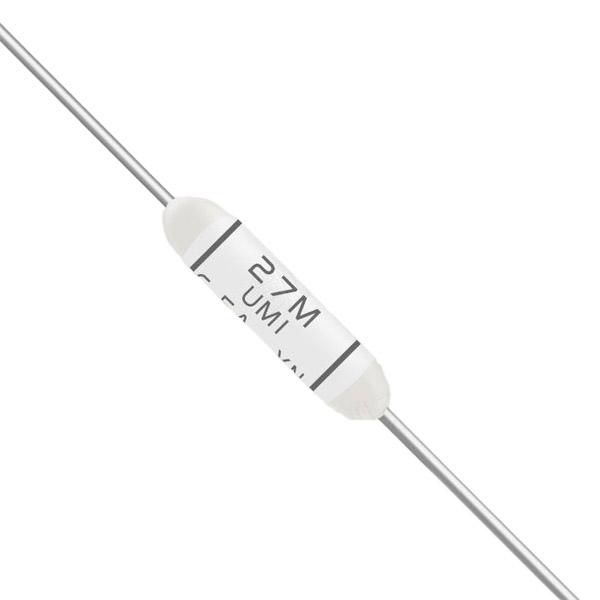

Various types of Thermal Fuse Links are available
