Uchihashi Tamura 36 Series Thermal Link Fuse 1.0A 1.3A 2.0A 250V Temperature Fuse 36R 362 36T 36M 36K
Price:
USD0.15~0.2/pc
MOQ:
1000
Delivery Time:
10 working days
Brand:
UMI
Product Description
Uchihashi Tamura 36 Series Thermal Link Fuse 1.0A 1.3A 2.0A Temperature Fuse 36R 362 36T 36M 36K
Product Description:
This type of thermal fuse is a non-resettable thermal protection device with ceramic casing, which is sensitive to the ambient temperature, accurate and stable operating temperature, small size and sealed structure.
This type of thermal fuse is a non-resettable thermal protection device with ceramic casing, which is sensitive to the ambient temperature, accurate and stable operating temperature, small size and sealed structure.
Peculiarity:
■It is a non-resettable thermal fuse, which uses a fusible alloy as a thermal element.
■It is free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant
■ Very simple structure to ensure reliability and sealing of the heat-sensitive element reduces deterioration with age.
■It has excellent thermal properties.
■ It uses an insulated container.
■It is free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant
■ Very simple structure to ensure reliability and sealing of the heat-sensitive element reduces deterioration with age.
■It has excellent thermal properties.
■ It uses an insulated container.
| Wire length | Dimensions (mm) | ||||
| A | B | C | D | E | |
| standard | 6.0±0.5 | 37±3.0 | 2.0±0.1 | 2.3 or below | 0.53±0.02 |
| Long | 6.0±0.5 | 69±3.0 | 2.0±0.1 | 2.3 or below | 0.53±0.02 |
Specification:
| Model | Temperature rating Tf(℃) |
Operating temperature (℃) |
Maintain temperature Th(℃) |
Maximum operating temperature (℃) |
Maximum limit temperature Tm(℃) |
Current rating (A) |
Rated voltage (V) |
| 36R | 102 | 98±3 | 78 | 71 | 200 | 2.0 | AC250 |
| 362 | 115 | 112±3 | 97 | 90 | 200 | 2.0 | AC250 |
| 36T | 134 | 130±3 | 117 | 117 | 200 | 1.3 | AC250 |

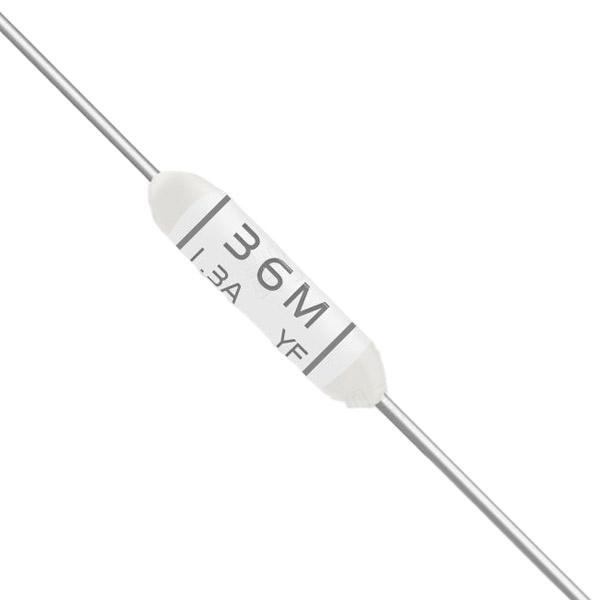

| 36M | 139 | 135±3 | 123 | 117 | 200 | 1.3 | AC250 |

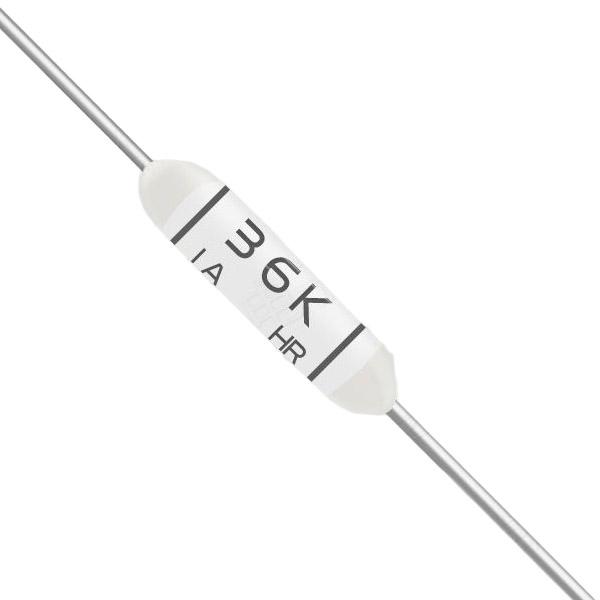

| 36K | 150 | 141±3 | 126 | 117 | 200 | 1.0 | AC250 |
Certifications:
| Model | Get certified | |||||||
| PSE | UL | C-UL | VDE | Self-certification | KC | |||
| 36R | JET5267-32001-1004 | E50082 | E50082 | 40033570 | 2020980205000078 | SU05029-8003*1 | ||
| 362 | JET5267-32001-1004 | E50082 | E50082 | 40033570 | 2020980205000078 | SU05029-8003*1 | ||
| 36T | JET5267-32001-1005 | E50082 | E50082 | 40033570 | 2020980205000078 | SU05029-8001 | ||
| 36M | JET5267-32001-1005 | E50082 | E50082 | 40033570 | 2020980205000078 | SU05029-8001 | ||
| 36K | JET5267-32001-2001 | E50082 | E50082 | 40033570 | 2020980205000078 | SU05029-8001 | ||
Working Principle
When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.
Uchihashi Tamura 36 Series Thermal Link Fuse 1.0A 1.3A 2.0A Temperature Fuse 36R 362 36T 36M 36K

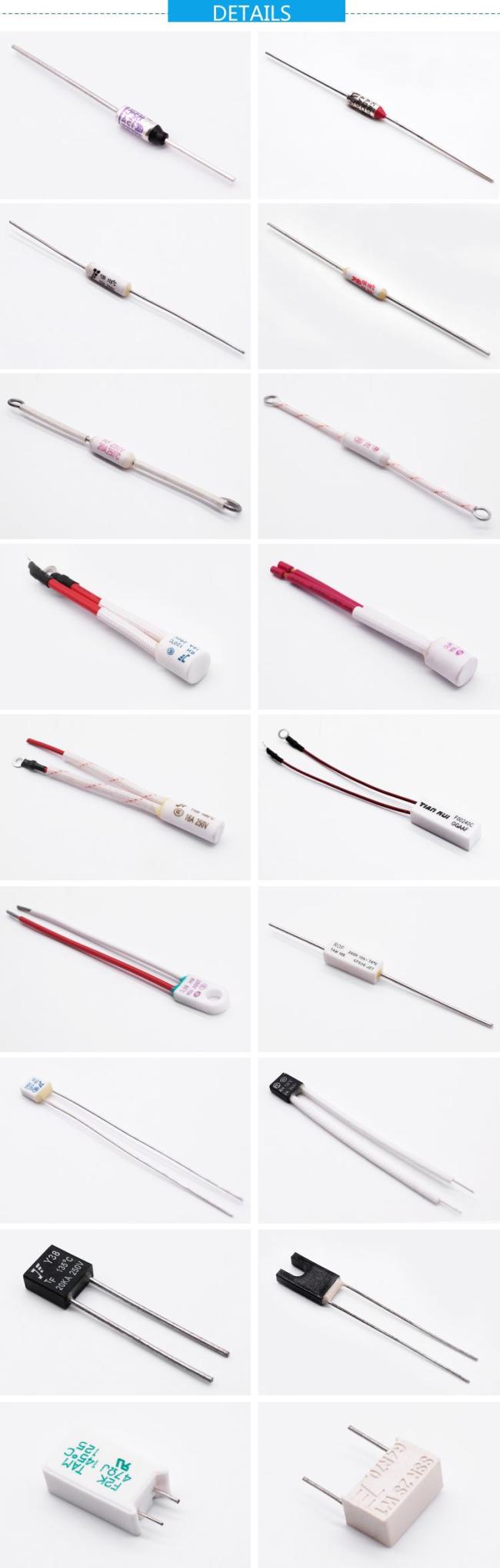

Various types of Thermal Fuse Links are available
