UMI TAM HX Series Thermal Cutoff Fuse 2A 3A 250V H3X H7X Temperature Fuse

Name: UMI TAM HX Series Thermal Cutoff Fuse 2A 3A 250V H3X H7X Temperature Fuse
Brand: Dongguan Reomax Electronics Technology Co., Ltd

Price Negotiable

Price: USD0.15~0.2/pc

MOQ: 1000

Delivery Time: 10 working days

Brand: UMI

Product Description

Uchihashi Tamura HX Series Thermal Cutoff Fuse 2A 3A 250V H3X H7X Temperature Fuse

Product Description:
This type of thermal fuse is a non-resettable thermal protection device with ceramic casing, which is sensitive to the ambient temperature, accurate and stable operating temperature, small size and sealed structure.

Peculiarity:

■A non-recoverable thermal fuse consisting of a soluble alloy as a heat-sensitive element

■It is free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant

■Very simple structure, the product is less affected by time changes, and the reliability is high

■It has excellent thermal performance

■I use an insulated container

Wire length	Dimensions (mm)
Wire length	A	B	C	D	E
Standard (H□X)	5.9±0.1	6.7±0.1	2.5±0.1	0.55±0.05	36±3.0

Specification:

Model	Temperature rating Tf(℃)	Operating temperature (℃)	Maintain temperature Th(℃)	Maximum operating temperature (℃)	Maximum limit temperature Tm(℃)	Current rating (A)	Rated voltage (V)

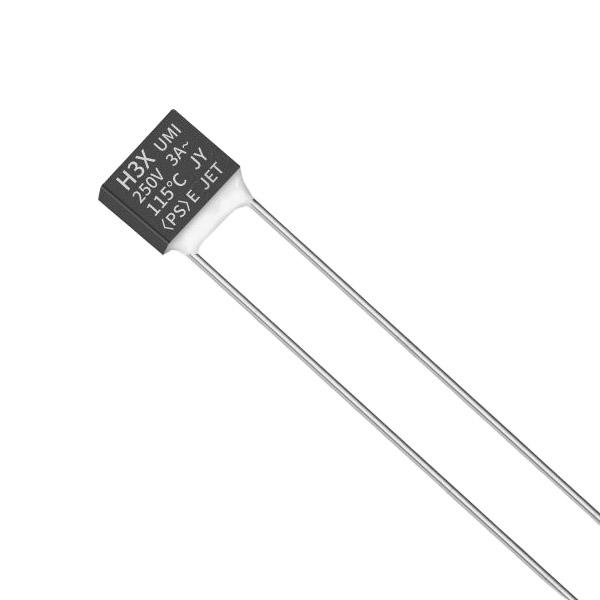

H3X	115	111±2	74	69	200	3.0	AC250

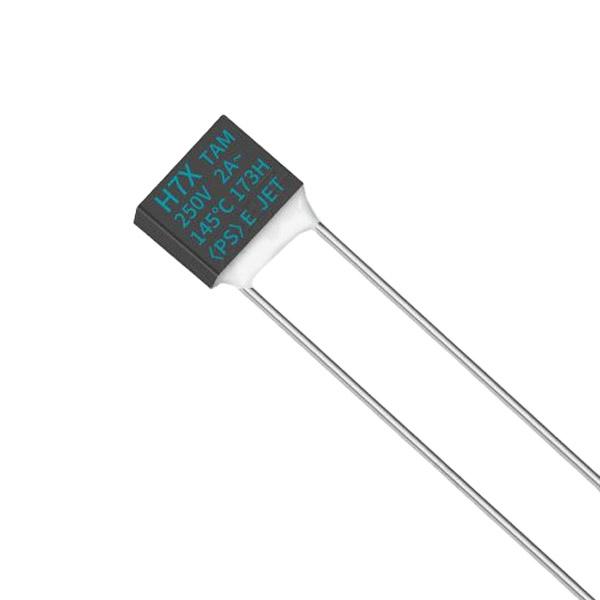

H7X	145	140±2	115	115	200	2.0	AC250

Certifications:

Model	Get certified
	PSE	UL	C-UL	VDE	Self-certification	KC
H3X	JET5823-32001-1003A-1	E73591	E73591	40009806	2020980205000123	SU05028-10001E
H7X	JET5823-32001-1005A-1	E73591	E73591	40009806	2020980205000121	SU05028-10004F

Working Principle:

When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.
