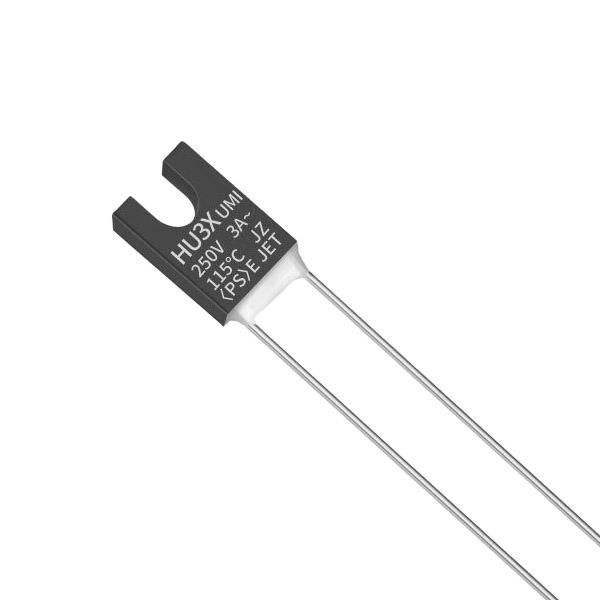

Uchihashi Tamura HU-X Series Temperature Fuse HU3X HU4X 3A 250V Thermal Cutoff Fuse
Price:
USD0.15~0.2/pc
MOQ:
1000
Delivery Time:
10 working days
Brand:
UMI
Product Description
Uchihashi Tamura HU-X Series Temperature Fuse HU3X HU4X 3A 250V Thermal Cutoff Fuse
Product Description:
This type of thermal fuse is a non-resettable thermal protection device with ceramic casing, which is sensitive to the ambient temperature, accurate and stable operating temperature, small size and sealed structure.
This type of thermal fuse is a non-resettable thermal protection device with ceramic casing, which is sensitive to the ambient temperature, accurate and stable operating temperature, small size and sealed structure.
Peculiarity:
■A non-recoverable thermal fuse consisting of a soluble alloy as a heat-sensitive element
■It is free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant
■Very simple structure, the product is less affected by time changes, and the reliability is high
■It has excellent thermal performance
■I use an insulated container
■Improved heat resistance for welding, suitable for flow welding
■Improved heat resistance for welding, suitable for flow welding
| Wire length | Dimensions (mm) | ||||||
| A | B | C | D | E | F | G | |
| Standard (HUX) | 11±0.1 | 6.7±0.1 | 2.5±0.1 | 0.55±0.05 | 36±3.0 | 4.6±0.1 | 3.2±0.1 |
Specification:
| Model | Temperature rating Tf(℃) |
Operating temperature (℃) |
Maintain temperature Th(℃) |
Maximum operating temperature (℃) |
Maximum limit temperature Tm(℃) |
Current rating (A) |
Rated voltage (V) |
| HU3X | 115 | 111±2 | 74 | 69 | 200 | 3.0 | AC250 |
| HU4X | 127 | 123±2 | 90 | 90 | 200 | 3.0 | AC250 |
Certifications:
| Model | Get certified | |||||||
| PSE | UL | C-UL | VDE | Self-certification | KC | |||
| HU3X | JET5823-32001-1003A-1 | E73591 | E73591 | 40009806 | 2020980205000123 | SU05028-10001E | ||
| HU4X | JET5823-32001-1004A-1 | E73591 | E73591 | 40009806 | 2020980205000123 | SU05028-10004F | ||
Working Principle:
When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.
Uchihashi Tamura HU-X Series Temperature Fuse HU3X HU4X 3A 250V Thermal Cutoff Fuse
Various types of Thermal Fuse Links are available
