Uchihashi Tamura U2E U22 U2X U2J Thermal Fuse 2A 2.5A 250V Temperature Fuse
Price:
USD0.15~0.2/pc
MOQ:
1000
Delivery Time:
10 working days
Brand:
UMI
Product Description

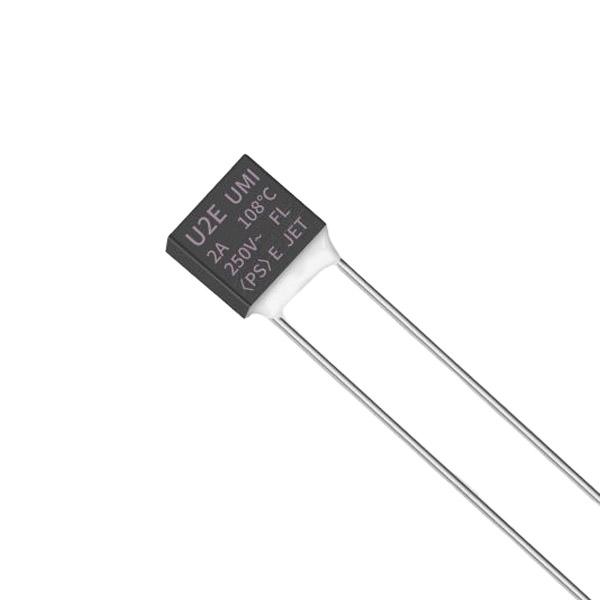

Uchihashi Tamura U2 Series Thermal Fuse U2E U22 U2X U2J Temperature Fuse 2A 2.5A 250V
Product Description:
This type of thermal fuse is a non-resettable thermal protection device with ceramic casing, which is sensitive to the ambient temperature, accurate and stable operating temperature, small size and sealed structure.
This type of thermal fuse is a non-resettable thermal protection device with ceramic casing, which is sensitive to the ambient temperature, accurate and stable operating temperature, small size and sealed structure.
Peculiarity:
■It is a non-resettable thermal fuse, which uses a fusible alloy as a thermal element.
■It is free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant
■ Very simple structure to ensure reliability and sealing of the heat-sensitive element reduces deterioration with age.
■It has excellent thermal properties.
■ It uses an insulated container.
■It is free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant
■ Very simple structure to ensure reliability and sealing of the heat-sensitive element reduces deterioration with age.
■It has excellent thermal properties.
■ It uses an insulated container.
| Wire length | Dimensions (mm) | ||||
| A | B | C | D | E | |
| standard | 55±3 | 5.7±0.5 | 6.6±0.5 | 2.5±0.3 | 0.53±0.02 |
| Long | 70±3 | 5.7±0.5 | 6.6±0.5 | 2.5±0.3 | 0.53±0.02 |
Specification:
| Model | Temperature rating Tf(℃) |
Operating temperature (℃) |
Maintain temperature Th(℃) |
Maximum operating temperature (℃) |
Maximum limit temperature Tm(℃) |
Current rating (A) |
Rated voltage (V) |
| U2E | 108 | 104±3 | 88 | 81 | 200 | 2.0 | AC250 |
| U22 | 115 | 112±3 | 89 | 89 | 200 | 2.5 | AC250 |
| U2X | 133 | 129±3 | 112 | 102 | 200 | 2.5 | AC250 |
| U2J | 145 | 141±3 | 120 | 115 | 200 | 2.5 | AC250 |
Certifications:
| Model | Get certified | |||||||
| PSE | UL | C-UL | VDE | Self-certification | KC | |||
| U2E | JET5267-32001-1004 | E50082 | E50082 | 40010818 | 2020980205000083 | SU05029-9007 | ||
| U22 | JET5267-32001-1004 | E50082 | E50082 | 40007526 | 2020980205000082 | SU05029-9007 | ||
| U2X | JET5267-32001-1005 | E50082 | E50082 | 40010818 | 2020980205000082 | SU05029-9005 | ||
| U2J | JET5267-32001-1006 (AC250V) |
E50082 | E50082 | 40010818 |
2020980205000082
(AC250V)
|
SU05029-9005 (AC250V) |
||
Working Principle:
When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.
Uchihashi Tamura U2 Series Thermal Fuse U2E U22 U2X U2J Temperature Fuse 2A 2.5A 250V
Various types of Thermal Fuse Links are available
