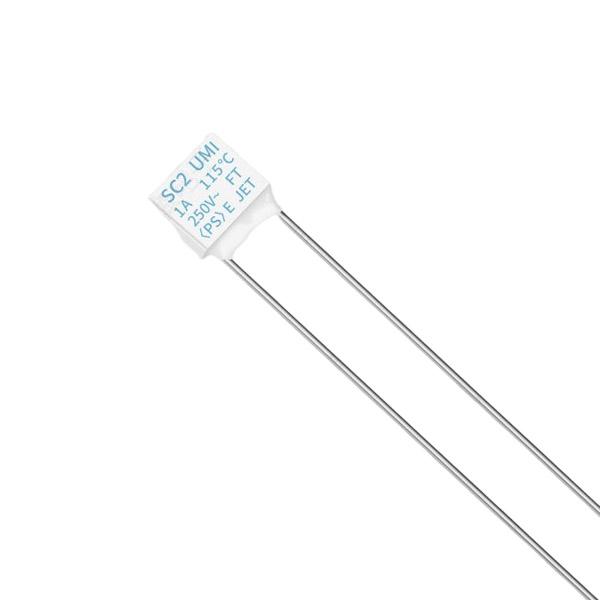

UMI TAM SC2 Thermal Fuse 1A 250V Thermal Cutoff Fuse

Name: UMI TAM SC2 Thermal Fuse 1A 250V Thermal Cutoff Fuse
Brand: Dongguan Reomax Electronics Technology Co., Ltd

Price Negotiable

Price: USD0.15~0.2/pc

MOQ: 1000

Delivery Time: 10 working days

Brand: UMI

Product Description

UMI TAM SC2 Thermal Fuse 1A 250V Thermal Cutoff Fuse

Product Description:

A thermal fuse, also known as a thermal cutoff or thermal link, is a safety device used to protect electrical appliances and circuits from overheating. It operates by interrupting the electrical current when the temperature exceeds a predetermined threshold, thereby preventing potential fire hazards or damage to the equipment.

Peculiarity

■It is a non-resettable thermal fuse, which uses a fusible alloy as a thermal element.
■ The use of ceramic containers to improve its thermal performance.
■Tinned iron wire is used to improve soldering heat resistance, and it is suitable for wave soldering.
■It is free of lead (Pb) and cadmium (Cd) and is RoHS and REACH compliant
■ Very simple structure to ensure reliability and sealing of the heat-sensitive element reduces deterioration with age.
■It has excellent thermal properties.
■ It uses an insulated container.

Wire length	Dimensions (mm)
Wire length	A	B	C	D	E
standard	55±3	4.0±0.5	5.2±0.5	2.2±0.3	0.53±0.02

Specification:

Model	Temperature rating Tf(℃)	Operating temperature (℃)	Maintain temperature Th(℃)	Maximum operating temperature (℃)	Maximum limit temperature Tm(℃)	Current rating (A)	Rated voltage (V)

SC2	115	112±3	95	89	200	1.0	AC250

Certifications:

Model	Get certified
	PSE	UL	C-UL	VDE	Self-certification	KC
SC2	JET5267-32001-1004 (AC250V)	E50082	-	40027707	2020980205000090 (AC250V)	-

Working Principle:

When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.
