UMI TAM LE Series Thermal Link Fuse LE073 LE080 LE090 LE095 LE108 LE117 LE128 LE138 LE152 LE169 LE189 Temperature Fuse 15A 250V
Price:
USD0.15~0.2/pc
MOQ:
1000
Delivery Time:
10 working days
Brand:
UMI
Product Description
UMI TAM LE Series Thermal Link Fuse LE073 LE080 LE090 LE095 LE108 LE117 LE128 LE138 LE152 LE169 LE189 Temperature Fuse 15A 250V
Product Description:
A thermal fuse, also known as a thermal cutoff or thermal link, is a safety device used to protect electrical appliances and circuits from overheating. It operates by interrupting the electrical current when the temperature exceeds a predetermined threshold, thereby preventing potential fire hazards or damage to the equipment.
Peculiarity
■RoHS and REACH compliant
■Made of metal shell and organic composite particle temperature-sensitive material.
■Non-reversible thermal fuse. When the thermal fuse is dissolved, it will not turn on even if the ambient temperature drops.
| Wire length | Dimensions (mm) | ||||
| A | B | C | D | E | |
| Standard (LE□) | 4.0±0.1 | 20±3 | 10.1±3 | 35±3 | 1.0±0.1 |
| Long (LE□-L) | 4.0±0.1 | 38±3 | 10.1±3 | 35±3 | 1.0±0.1 |
Specification:
| Model | Temperature rating Tf(℃) |
Operating Temperature (°C) | Holding Temperature Th(°C) | Maximum operating temperature (°C) | Maximum limit temperature Tm(℃) |
Rated Current (A) | Rated voltage (V) |
| LE073 | 77 | 74±2 | 48 | 45 | 150 | 15.0 | AC250 |
| LE080 | 84 | 80±2 | 50 | 50 | 150 | 15.0 | AC250 |
| LE090 | 94 | 91+3/-2 | 65 | 60 | 150 | 15.0 | AC250 |
| LE095 | 99 | 95±2 | 69 | 65 | 150 | 15.0 | AC250 |
| LE108 | 113 | 109±3 | 83 | 80 | 150 | 15.0 | AC250 |
| LE117 | 121 | 117±3 | 90 | 90 | 160 | 15.0 | AC250 |
| LE128 | 133 | 129+3/-2 | 103 | 95 | 160 | 15.0 | AC250 |
| LE138 | 142 | 138±3 | 110 | 100 | 160 | 15.0 | AC250 |
| LE152 | 157 | 152±2 | 126 | 120 | 175 | 15.0 | AC250 |

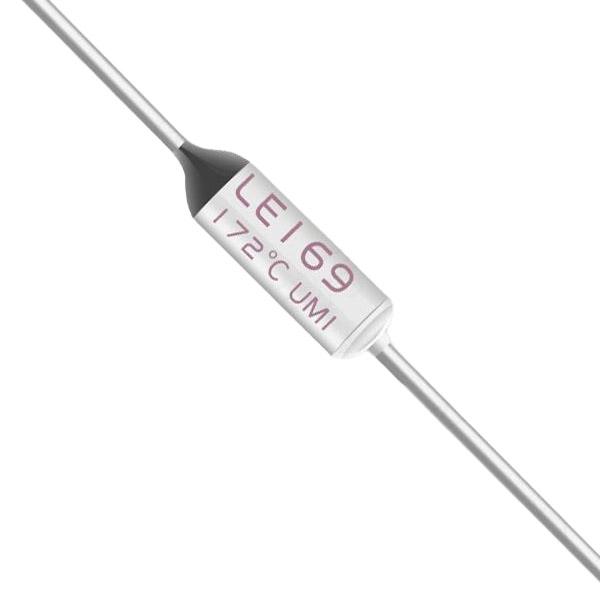

| LE169 | 172 | 167±2 | 141 | 135 | 190 | 15.0 | AC250 |

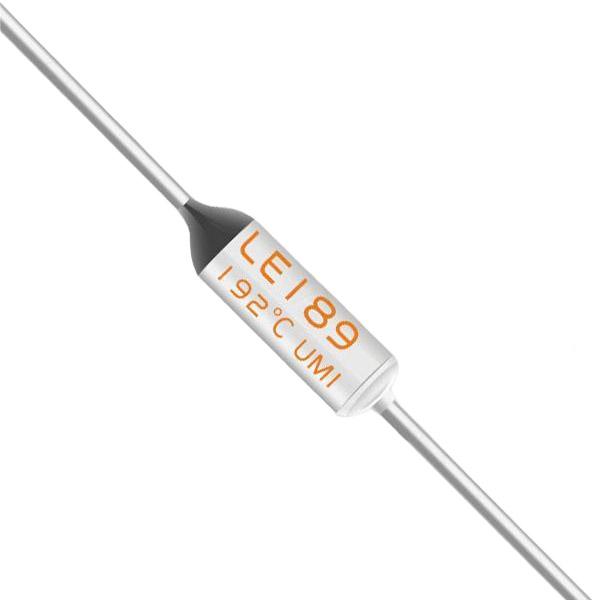

| LE189 | 192 | 189±3 | 162 | 135 | 300 | 15.0 | AC250 |
Certifications:
| Model | Get certified | |||||
| PSE | UL | C-UL | VDE | CCC | KC | |
| LE073 | JET5823-32001-2001 | E73591 | E73591 | 40010594 | 2020980205000120 | SU05028-8032B |
| LE080 | JET5823-32001-2002 | E73591 | E73591 | 40010594 | 2020980205000120 | SU05028-8032B |
| LE090 | JET5823-32001-2002 | E73591 | E73591 | 40010594 | 2020980205000120 | SU05028-8032B |
| LE095 | JET5823-32001-2002 | E73591 | E73591 | 40010594 | 2020980205000120 | SU05028-8032B |
| LE108 | JET5823-32001-2003 | E73591 | E73591 | 40010594 | 2020980205000120 | SU05028-8033B |
| LE117 | JET5823-32001-2004 | E73591 | E73591 | 40010594 | 2020980205000120 | SU05028-8034B |
| LE128 | JET5823-32001-2004 | E73591 | E73591 | 40010594 | 2020980205000120 | SU05028-8034B |
| LE138 | JET5823-32001-2005 | E73591 | E73591 | 40010594 | 2020980205000120 | SU05028-8034B |
| LE152 | JET5823-32001-2005 | E73591 | E73591 | 40010594 | 2020980205000120 | SU05028-8034B |
| LE169 | JET5823-32001-2006 | E73591 | E73591 | 40010594 | 2020980205000120 | SU05028-8035B |
| LE189 | JET5823-32001-2007 | E73591 | E73591 | 40010594 | 2020980205000120 | SU05028-8035B |
Working Principle
When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.
UMI TAM LE Series Thermal Link Fuse LE073 LE080 LE090 LE095 LE108 LE117 LE128 LE138 LE152 LE169 LE189 Temperature Fuse 15A 250V
Various types of Thermal Fuse Links are available
