KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector

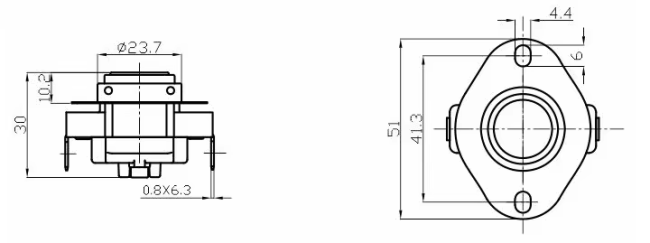

Size(mm)
Working Principle of KSD302R 25A 45A High ampere current SPST Snap Action Trip Bimetal Thermostat thermal protector
the principle of instantaneous beating, through the role of mechanical structure, so that the two groups of contacts quickly
action to achieve the same time to disconnect or turn on the purpose of bipolar circuit.
2. The thermostat should work in the general indoor environment where the relative humidity of the air is not greater than 90%,
non -corrosive gas, flammable gas and electric conductive dust exist.
3. When the thermostat uses contact with the temperature, the cover should be covered with the heating part of the charged
appliance, and the thermal conductivity of the heating silicon grease or other performance should be applied on the cover of the
temperature.
4. The top of the cover cannot be crushed or deformed to avoid changing the temperature or other performance.
5. Do not let the liquid penetrate inside the thermostat! The shell must avoid excessive power to prevent cracks; the shell should
be kept clean to prevent pollution of conductive substances, so as to avoid short -circuit penetration due to the reduction of
insulation performance.
6. The use process cannot bend the wiring terminal, otherwise it will affect the reliability of electrical connection.
Related types of Bimetal Thermostat Thermal Protector
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown carton.
Q2. What is your terms of payment?
A: T/T 50% deposit, and 50% balance before delivery.
Q3. What is your trade terms?
A: EXW, FOB, CIF, DDU, DDP, etc.
Q4. What is your approval?
A: ROHS/UL of KSD302R 25A 45A High Ampere Current SPST Snap Action Trip Bimetal Thermostat Thermal Protector
