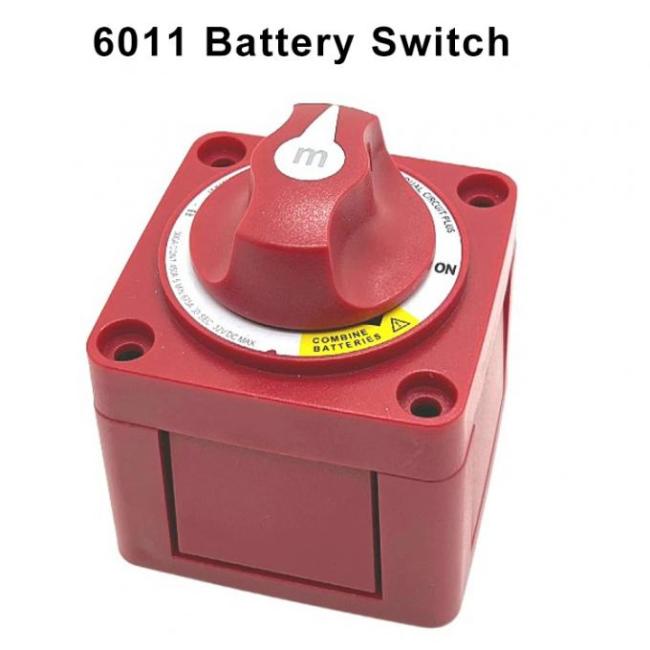

6011 M Series 300A Main Battery Power Switch for RV Yacht Marine

Price Negotiable

Price: Negotiable

MOQ: 100pcs

Delivery Time: 10-14 days

Brand: Tianrui

Product Description

Specification

Product Name	Boat Marine RV Battery Switch
Color	Red

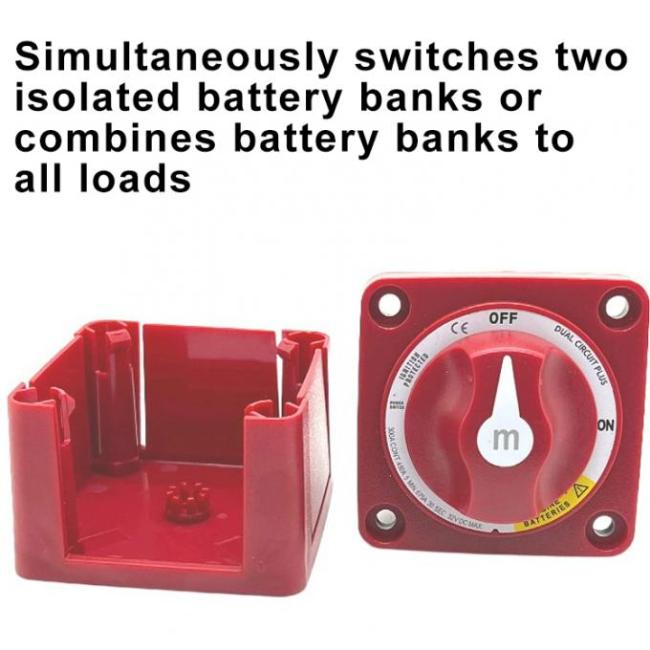

Switch Type	Dual Circuit Plus
Switch Positions	3
Battery Combine	Yes

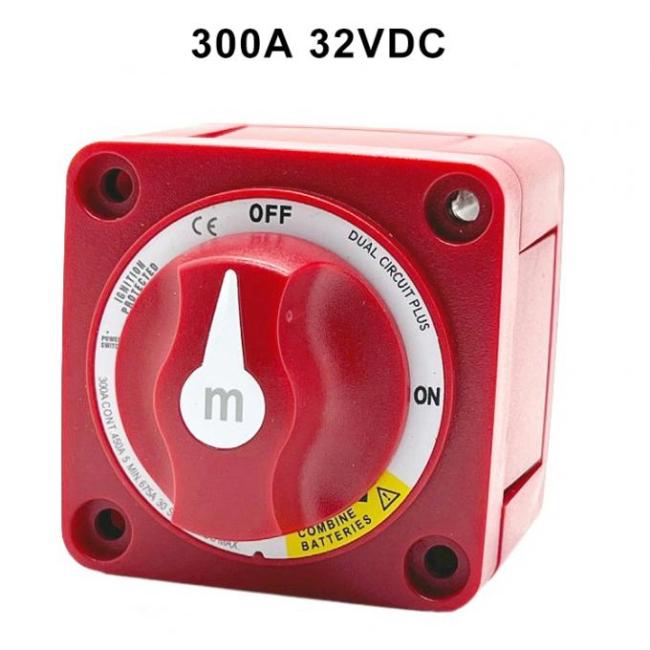

Continuous Rating	300A
Intermittent Rating	450A (5 min)
Starting Rating 30 sec	675A per circuit
Maximum Voltage	32VDC
Stud Size	3/8"
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Battery Inputs	2
Terminal Stud Size	3/8" - 16 (M10)
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept #10 Screw
Weight	0.80lb (0.36 kg)

Features

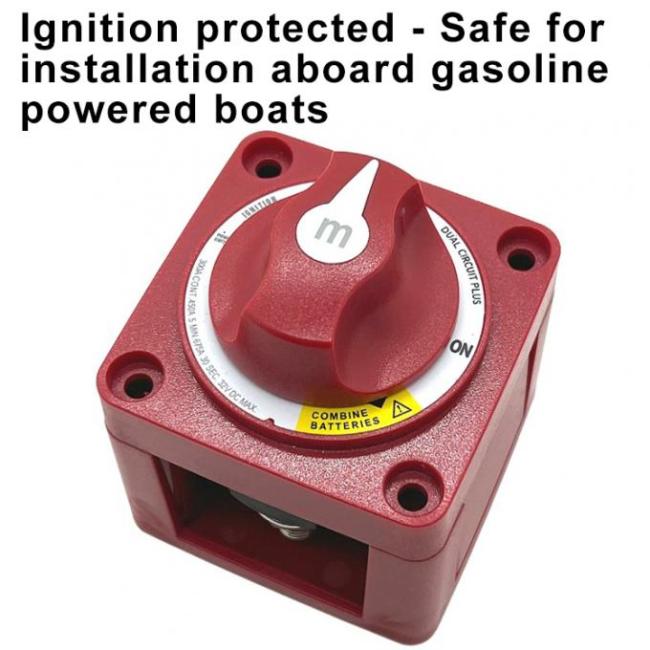

•Ignition protected - Safe for installation aboard gasoline powered boats
•Case design allows surface, front panel, or rear panel mounting
•Isolating cover with snap-on sections protects rear contacts

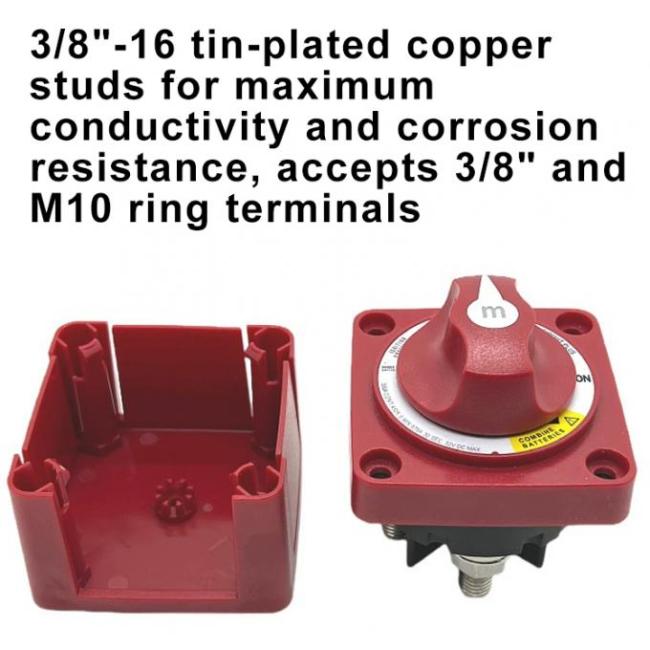

•3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals

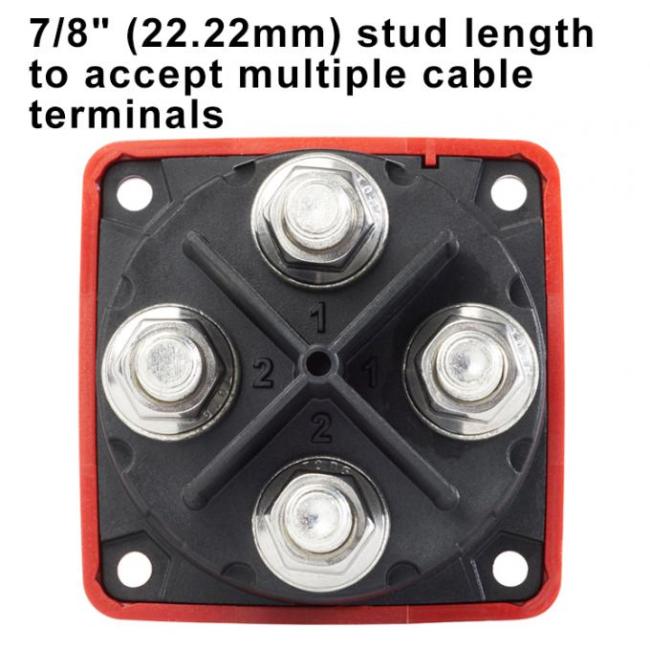

•7/8" (22.22mm) stud length to accept multiple cable terminals
•Ideal for marine or RV applications
•All non-corrosive marine grade metals
•Molded in durable reinforced polycarbonate
•Tactile textures indicate knob position by feel only
•Label with international ON/OFF legends
•Removable key or knob remains positively retained
•ICON label set included for circuit identification

Photos

Application

This battery master switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and other 0-48V Devices.
