15 Amp 5.2x20mm PCB Mount Fuse Holder 250V Bakelite With Faston Terminal
JEF-518A 5*20 Fuse Holder 250V 15A PCB Mount 5.2x20mm UL 94V-0 Fuse Block with 6.5mm Faston Terminal
Product Description
| Item Name | Fuse Holder |
| Mounting Type | PCB |
| Body Color | Black |
| Body Material | Bakelite/Phenolic |
| Terminal Material | tinned brass |
| Clip Material | tinned brass |
| Body Length | 27mm |
| Bottom Length | 22.3mm |
| Bottom Width | 10mm |
| Hole Diameter | 6.5mm |
| Height | 14.2mm |
| Terminal Width | 6.5mm |
| Terminal Thickness | 0.7mm |
| Clip thickness | 0.5mm |
This 5x20 pcb mount fuse holder is compatible with 5.2x20mm glass or ceramic fuses for overcurrent protection in electronic equipments, appliances, and lighting circuits.
They're used with 6.5mm faston terminals.
They are easy to be installed on the printed circuit boards.

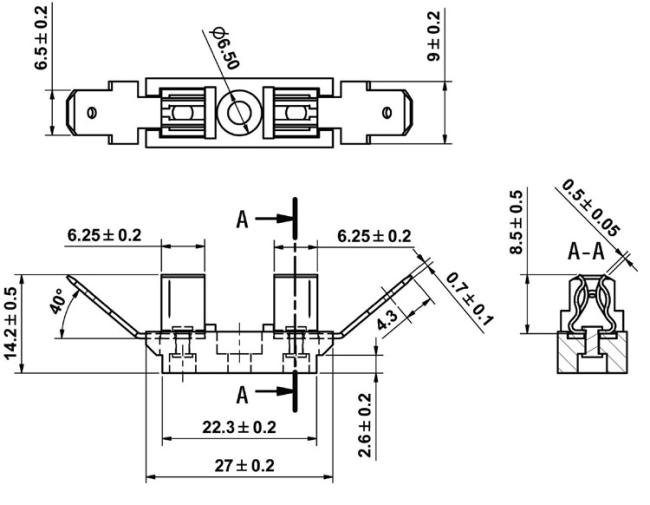

Drawing of the JEF-518A fuse holder
Please allow 1-3mm tolerance due to manual measurement.
KEY WORDS: JEF-518A FUSE HOLDER. PCB FUSE HOLDER, 5x20 FUSE HOLDER, 5.2x20 FUSE HOLDER, FUSE BLOCK
6x30 glass fuses
6x30 ceramic fuses
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
Express, By Air, By Sea
Selection of the Fuse and Holder Solution
The first step is to answer the following questions:
- Will the fuse need to accessible for replacement?
- How often will the fuse need to be replaced?
- Should the end customer of the appliance have access to change the fuse?
- Should the fuse only be accessible from outside the appliance?
- How much is available to spend on safety and reliability?
Q: Are you trading company or manufacturer ?
A: We are a fuse product factory.
Q: How long is your delivery time?
A: 3 days if in stock, 10 days if not in stock
Q: Do you provide samples ? is it free ?
A: Yes, we could offer the samples for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
| Item Name | Fuse Holder |
| Mounting Type | PCB |
| Body Color | Black |
| Body Material | Bakelite/Phenolic |
| Terminal Material | tinned brass |
| Clip Material | tinned brass |
| Body Length | 27mm |
| Bottom Length | 22.3mm |
| Bottom Width | 10mm |
| Hole Diameter | 6.5mm |
| Height | 14.2mm |
| Terminal Width | 6.5mm |
| Terminal Thickness | 0.7mm |
| Clip thickness | 0.5mm |
