UMI TAM T1F 250V 1A 86C Cutoff Fuse Thermal Link
Price:
USD $0.1~$0.25 per piece
MOQ:
5000
Delivery Time:
15 days
Brand:
UMI
Product Description
UMI TAM T1F 250V 1A 86C Cutoff Fuse Thermal Link
Specifications
| P/N |
Tf (℃) |
Ta (℃) |
Th (℃) |
Tm (℃) |
Ir |
Ur |
|---|---|---|---|---|---|---|
| T0F | 76 | 72±3 | 55 | 200 | 1A | AC 250V |
| T1F | 86 | 81±2 | 60 | 200 | 1A | AC 250V |
| T2F | 102 | 98±3 | 75 | 200 | 2A | AC 250V |
| T3F | 115 | 111±2 | 95 | 200 | 2A | AC 250V |
| T4F | 127 | 123±2 | 110 | 200 | 2A | AC 250V |
| T7F | 145 | 140±2 | 125 | 200 | 1A | AC 250V |
-
Temperature Rating (Tf
) : Rated opening temperature -
Action Temprature (Ta): Actual measured opening temperature
- Holding temperature (Th
) : Maximum temperature measured at the case end of the thermal cutoff at which the thermal cutoff can be maintained for a period for 168 hours without opening. - Maximum temperature (Tm):The maximum temperature at which a thermal cutoff can
be maintained for 1 0 minutes as an open circuit and can then be maintained at twice rated voltage for a period of 2 minutes during which its mechanical and electrical properties will not be impaired
Product Description
| Item | thermal fuse, thermal cutoff, thermal link |
| Brand | UMI |
| P/N | T1F |
| Lead Dia | 0.7mm |
| Lead Length | 68+68mm |
| Voltage Rating | 250V AC |
| Current Rating | 1A |
| Opening Temp | 86C |
| Mounting Type | axial leaded |
| Body Dia | 2mm |
| Body Length | 6.3mm |
| Certifications | UL cUL VDE CCC KC |
Dimension
| Leads Type | Length(mm) | ||||
| A | B | C | D | E | |
| T-F | 6.3±0.3 | 2.0±0.1 | 2.3 | 0.53±0.05 | 68±3.0 |
| T-F(C) | 6.3±0.3 | 2.0±0.1 | 2.3 | 0.53±0.05 | 38±3.0 |

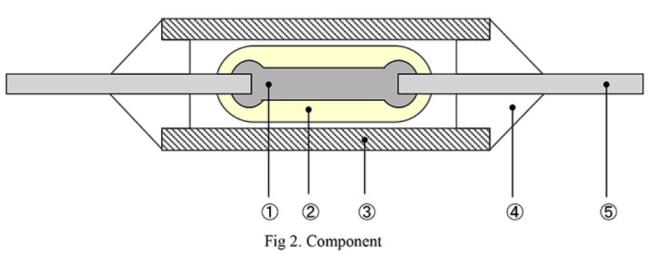

Materials
① Low melting point alloy
② Special resin
③ Epoxy resin
④ Ceramics
⑤ Tin plated copper wire
Standard Package
1000pcs per box, 20000pcs per carton
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
