PEC BFSL Fuse 32V ELV Blade Fuse
PEC BFSL Fuse 32V ELV blade Fuse
Product Features
| Product Name | PEC BFSL Blade Fuse |
| Material | PC , zinc alloy plated with silver |
| Volt Rating | DC32V |
| Amp Rating | 3A 4A 5A 7.5A 10A 15A 20A 25A 30A |
| Blow Types | standard |
| Environmental | Lead and Ph free |
| Package | 1000pcs per bag |
Easily identified by their color-coded plastic housings, and the marked amp rating figures on the top
Used for cars and trucks, It can be mounted in fuse blocks, in-line fuse holders, or fuse clips
PEC BFSL Fuse 32V ELV blade Fuse specification:
| Specification | Parameters |
| Interrupting Capability | 1000A |
| Component Level Temperature Range: | -40°C to +105°C |
| System Level Temperature Range: | -40°C to +80*C |
| Terminals: | zinc alloy |
| Housing Material: | PC |
| Complies with: | SAE J1284,ISO 8820-3 |

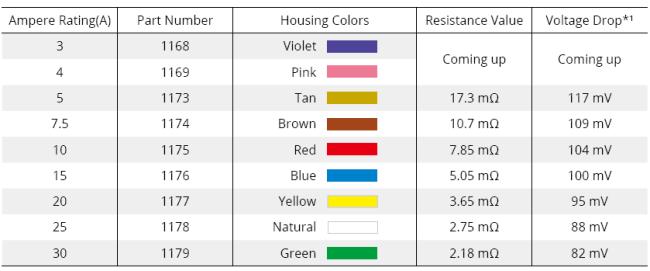

1168-3A violet
1169-4A pink
1173-5A tan
1174-7.5A brown
1175-10A red
1176-15A blue
1177-20A yellow
1178-25A transparent
1179-30A green
Blowing Time Characteristics
| % of Rating | Opening Time Min/Max |
| 110 | 360.000s/- |
| 135 | 750ms/120s |
| 160 | 250ms/ 50s |
| 200 | 150ms/5.0s |
| 350 | 40ms/500ms |
| 600 | 20ms/100ms |
Dimension of PEC BFSL Fuse 32V ELV blade Fuse
Time-Current Characteristics
Standard Package
1000pcs per bag, 20000pcs per carton
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
-
Company warehouse
-
![]()
-
PEC BFSL Fuse 32V ELV blade Fuse--
-
This state-of-the-art blade fuse was realized by reducingthe width of the BFMN to offer space reduction
