AC DC 125V 62mA Epoxy Axial Leaded Fuse Halogen Free One Time Blow
Littelfuse 251 Series 0261.062MXL 125V 62mA Axial leaded fuse
Features
- Very fast-acting
- Small size
- Wide current rating range
- Halogen-free available
- Wide operating temperature range
- Low temperature re-rating
Applications
- Flat–panel display TV
- LCD monitor
- LCD backlight inverter
- Office machines
- Power supply
- Audio/Video system
- Lighting system
- Medical equipment
Materials
Epoxy Coated body
Tinned copper leads
Electrical Characteristics
Rated Current: 62mA
Rated Voltage: AC/DC 125V
Breaking Capacity: 300A @125VDC, 50A@125VAC
OperatingTemperature: –55ºC to +125ºC (Consider re-rating)
Insulation Resistance:10,000 ohms minimum at 100 volts
AC DC 125V 62mA Epoxy Fuse with Axial Leads IN STOCK

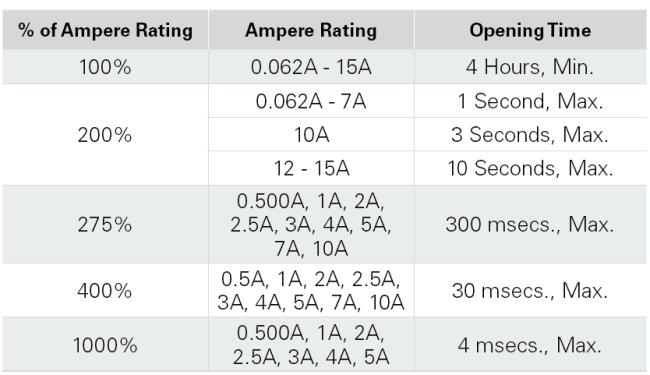

Blowing Time

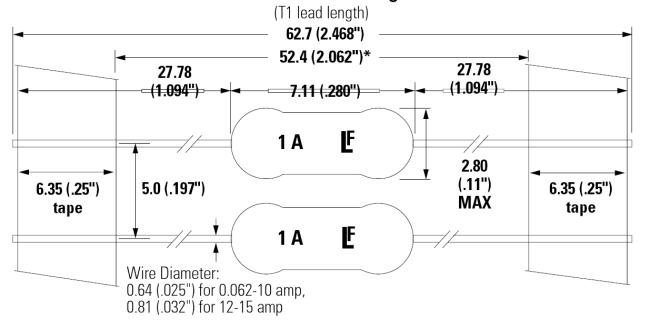

Dimension

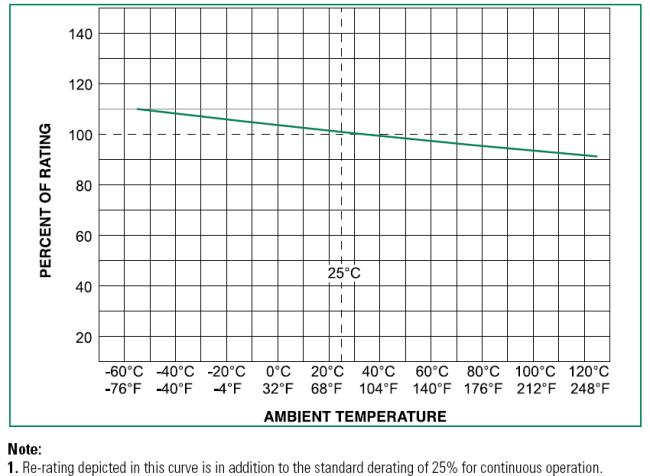

Temperature Re-rating Curve
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
Express, By Air, By Sea
-
![]()
-
Company warehouse
-
![]()
Q: Are you trading company or manufacturer ?
A: We are a fuse product factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay for the shipping cost.
Q: What are your terms of payment ?
A: 100% in advance, T/T.
AC DC 125V 62mA Epoxy Fuse with Axial Leads
