Bolt Down 58V PPA House material ANM Fuse 40A With M8 Holes
Bolt Down 58V ANM Fuses with M8 bolt holes
Description of Bolt Down 58V ANM Fuses with M8 bolt holes
| Product Name | MEGA Fuse |
| Types | Bolt Down |
| Volt Rating | 58V |
| Amp Rating | 40A~500A |
| Blow Types | Time Delay |
| Standard | ISO8820-5/UL248 special purpose fuses; |
| Package | 100pcs per bag |
Application of Bolt Down 58V ANM Fuses with M8 bolt holes
Suitable for new energy electricvehicles, forklifts, motor controllers,charging piles,
| Specification | Parameters |
| Interrupting Rating: | 2000A @ 58V |
| Voltage Rating: | 58V |
| Temperature Range: | -40°C to +125°C |
| Terminals: | Cu/Zn Alloy |
| Housing Material: | PPA |
| Complies with: | IS08820-5/UL248 |
| Mounting Torque | 8-14 Nm M6,12-18 Nm M8 |
ANM-40A
ANM-60A
ANM-100A
ANM-80A
ANM-175A
ANM-200A
ANM-150A
ANM-125A
ANM-250A
ANM-150A
ANM-400A
ANM-350A
ANM-450A
ANM-500A
Electrical Performance
| TESTING CURRENT | BLOW TIME LIMIT |
| 100% | 4 Hr. minimum |
| 135% | 120s--- 1800s |
| 200% | 1s --- 15s |
| 350% | 0.3s-5s |
| 600% | 0.1s- 1s |
Pictures of Bolt Down 58V ANM Fuses with M8 bolt holes

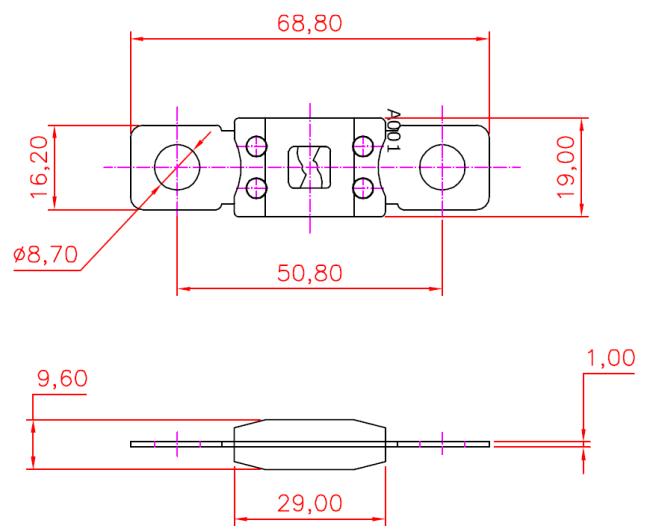

Drawing of Bolt Down 58V ANM Fuses with M8 bolt holes
Standard Package
100pcs per bag, 5000pcs per carton
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
-
Company warehouse
-
![]()
Q: Are you trading company or manufacturer ?
A: We are a fuse product factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
