Halogen Free 6x32 1000V 2A Ceramic Cartridge Fuse With Axial Leads
Datasheet of Ceramic Cartridge Fuse with Axial Leads
Description of 6x32 1000V 2A Ceramic Cartridge Fuse with Axial Leads
| Item | Ceramic Cartridge Fuse with Axial Leads |
| Standard | UL |
| Blow Type | fast |
| Body Material | ceramic |
| Fusing Material | alloy |
| Cap Material | nickel plated brass |
| Voltage Rating | 1000V AC/DC |
| Current Rating | 2A |
| Mounting Type | cartridge or axial leaded |
| Breaking Capacity | 1KA |
| Size | 6x30 6x32 6.3x30 6.3x32 mm |
| Certifications | CUL UL CCC |
| Applications | home appliance, power supply, telecommunication, consuming electronics |
| Specification | |||
| Amperage No. | Rated Voltage | Rated Current | Breaking Capacity (A) |
| 0100 |
1000V AC/DC |
100mA | 1KA |
| 0160 | 160mA | ||
| 0200 | 200mA | ||
| 0250 | 250mA | ||
| 0300 | 300mA | ||
| 0315 | 315mA | ||
| 0350 | 350mA | ||
| 0400 | 400mA | ||
| 0500 | 500mA | ||
| 0630 | 630mA | ||
| 0750 | 750mA | ||
| 0800 | 800mA | ||
| 1100 | 1A | ||
| 1125 | 1.25A | ||
| 1150 | 1.5A | ||
| 1160 | 1.6A | ||
| 1200 | 2A | ||
| 1250 | 2.5A | ||
| 1300 | 3A | ||
| 1315 | 3.15A | ||
| 1400 | 4A | ||
| 1500 | 5A | ||
| 1630 | 6.3A | ||
| 1800 | 8A | ||
| 2100 | 10A | ||
| 2120 | 12A | ||
| 2150 | 15A | ||
| 2160 | 16A | ||
| 2200 | 20A | ||
| 2250 | 25A | ||
| 2300 | 30A | ||
Part No. of axial leaded type is suffixed with "P"
Breaking Capacity
| Amps(A) | Volts(V) | Interrupting Rating(A) |
| 0.1 - 30 | 1000 | 1000 |
Dimension of 6x32 1000V 2A Ceramic Cartridge Fuse with Axial Leads
| NO. | Part No. | Material |
| ① | Cap | Nickle plated brass |
| ② | Body | Ceramic |
| ③ | Fuse Element | Alloy |
| ④ | Filler(depends on amps or volts) | Silica |
| ⑤ | Leads | Tin plated copper |

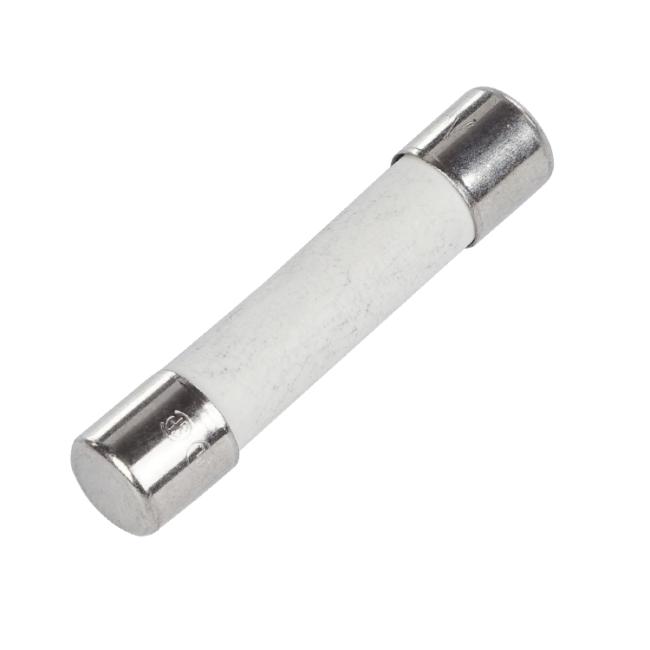

Pictures of 6x32 1000V 2A Ceramic Cartridge Fuse with Axial Leads
Standard Package of 6x32 1000V 2A Ceramic Cartridge Fuse with Axial Leads
100pcs per bag, 1000pcs per box, 4000pcs per carton
