HCA716S/HCA726S High Accuracy CANopen Tilt Sensor for Industrial Inclination Measurement
HCA716S/HCA726S is a small-sized single/dual axis tilt sensor designed for industrial field control, using CANopen communication interface. Built in high-precision 24 bit A/D differential converter, using a 5th order filtering algorithm, can measure the tilt and pitch angles of the sensor output relative to the horizontal plane. This product integrates high-tech MEMS tilt unit, with a measurement range of ± 180 degrees and a full range accuracy of 0.01 °, making it easy to achieve dual axis and single axis tilt measurement. The product is a truly industrial grade product with reliable and stable performance, good scalability, and a variety of outputs to choose from. Suitable for monitoring ancient buildings, dangerous buildings, ancient walls, and measuring industrial sites with high precision in large quantities.
- Single/dual Axis Tilt sensor
- Measuring Range :±1~±180° optional
- Accuracy: refer to the technical data
- Wide voltage input: DC9~36V
- Wide temperature working: -40~+85℃
- Resolution: 0.001°
- IP67 protection class
- Highly anti-vibration performance >100g
- Direct lead cable interface

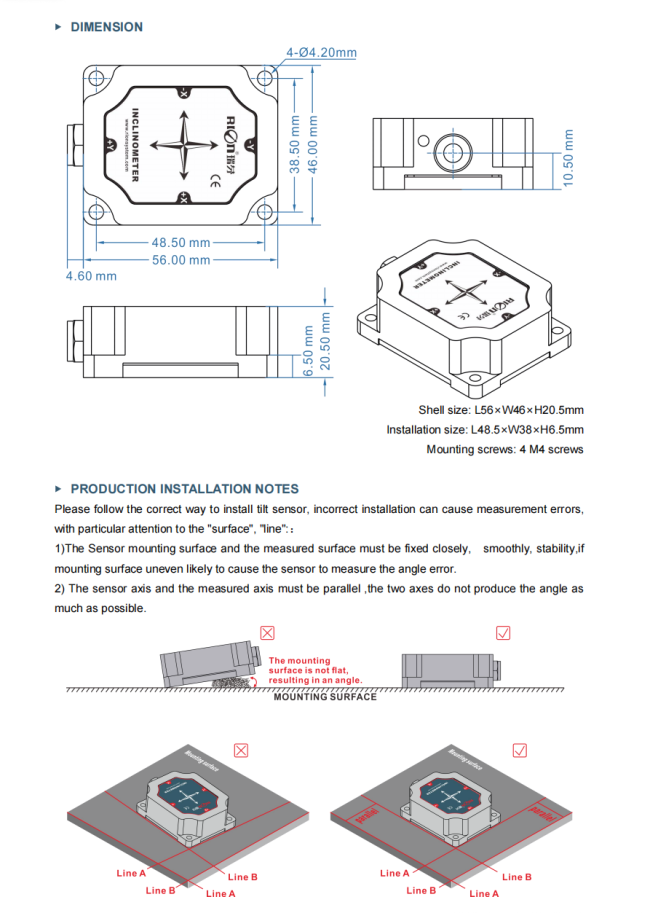

- Small size : 54*46*20.5mm(customized)
- Monitoring of bridges and large lands
- Leveling of construction vehicles
- Mining machinery, oil drilling equipment
- Medical equipment angle control
- Railway gauge ruler and gauge leveling
- Underground drilling rig attitude navigation
- Geological equipment tilt monitoring
- Monitoring of ancient buildings and dilapidated buildings
- Elevation angle measurement of directional satellite communication antenna
| HCA716/726-C1 | CONDITION | PARAMETER | UNIT | |||||
|---|---|---|---|---|---|---|---|---|
| Measure range | ±10 | ±30 | ±60 | ±90 | ±180 | ° | ||
| Measure axis | X Y | X Y | X Y | X Y | Vertical X axis | axis | ||
| Resolution | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | ° | ||
| Measure accuracy | MAXE | Room temp. | 0.008 | 0.01 | 0.01 | 0.02 | 0.02 | ° |
| RMSE | Room temp. | 0.004 | 0.005 | 0.005 | 0.006 | 0.006 | ° | |
| Long temp. stability | <0.02 | ° | ||||||
| Zero Temp.coefficient | -40~85℃ | ±0.0005 | °/℃ | |||||
| Sensitivity temp-coeffi | -40~85℃ | ≤0.01 | %/℃ | |||||
| Power on time | 0.5 | S | ||||||
| Response frequency | 20 | Hz | ||||||
| Interface | CANopen | |||||||
| EMC | According to EN61000 and GBT17626 | |||||||
| MTBF | ≥98000 Hours/times | |||||||
| Insulation Resistance | ≥100M | |||||||
| Shockproof | 100g@11ms, 3 Axial Direction (Half Sinusoid) | |||||||
| Anti-vibration | 10grms / 10~1000Hz | |||||||
| Protection grade | IP67 | |||||||
| Cables | Standard 1M length / wear proof / grease proofing / wide temperature, Shielded cables 4*0.2mm2 | |||||||
| Weight | ≤150g (including 1 meter cable) | |||||||

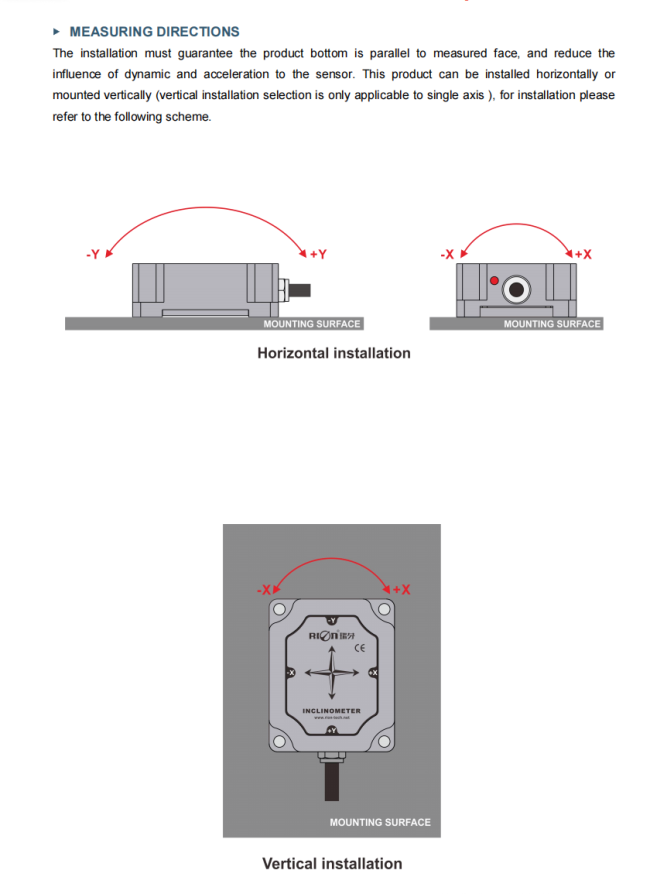

Resolution: Refers to the sensor in measuring range to detect and identify the smallest changed value.
MAXE: refers to the biggest error of the product within the range and at multiple angle points.
RMSE: refers to the root mean square difference between the measured value and the actual angle of the product within the range and for multiple times (more than 16 times).
Zero Temperature Drift Coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.
Sensitivity Temperature Drift Coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.
