LCA310T/LCA320T MEMS Tilt Sensor High-Accuracy Single & Dual Axis Inclinometer with 0-5V Analog Output for Industrial Angle Measurement
LCA310T/LCA320T is a small-volume low-cost single-axis tilt sensor developed by RION technology. The output voltage is internally quadratic linearity corrected. It is a linearity voltage output tilt sensor. It is mainly aimed at applications where volume and cost are highly restrictive. Due to the built-in tilting unit of the latest technology micro-electromechanical production process, the volume is small, the power consumption is low, and the consistency and stability of the micro-electromechanical process are very high. The working temperature reaches industrial level -40 ~ +85 ℃, which is a high cost performance Inclination module.
This product adopts the non-contact measurement principle, which can output the current inclination angle in real time. It is simple to use, small size, strong resistance to external electromagnetic interference, and strong ability to withstand shock and vibration; it is an ideal choice for industrial equipment and platform measurement attitude!
This product is mainly used for static and dynamic angle measurement with slow change, and has strong ability to resist external electromagnetic interference, and can adapt to long-term work in harsh industrial environment.
- Single and biaxial inclination measurement
- Any range within 360 ° is optional
- Accuracy: 0.1 °
- Wide voltage input 9～36V
- Output mode 0～5V
- Wide temperature operation -40～+ 85 ℃
- IP67 protection level
- High anti-vibration performance> 3500g
- Resolution 0.02 °

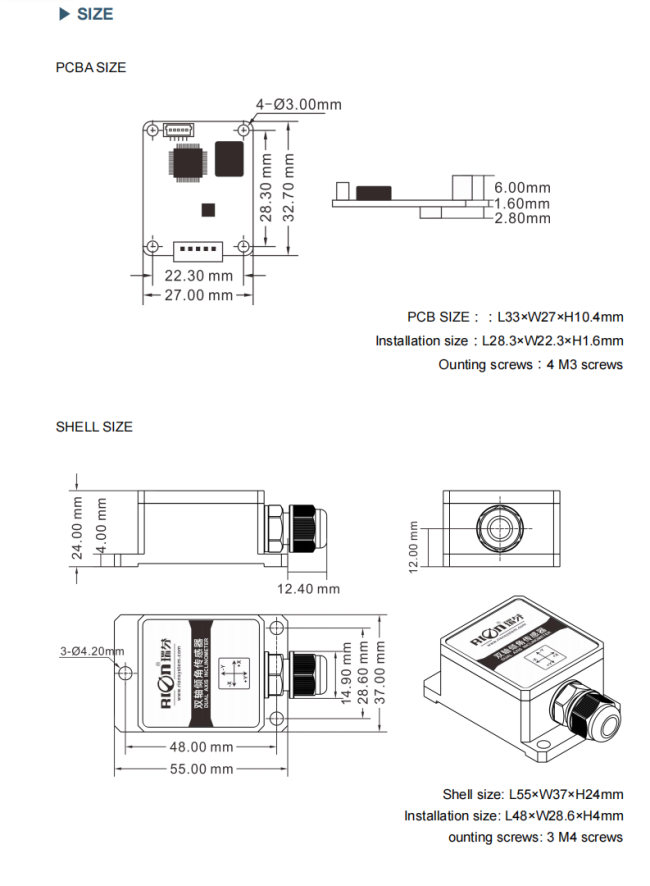

- Small size 55 * 37 * 24mm (customizable)
- Electric blind chair leveling
- Car chassis measurement
- Satellite antenna positioning
- Medical bed level
- Gimbal operation monitoring
- Four-wheel positioning system
- Various engineering machinery angle control
| LCA310T/LCA320T | CONDITION | PARAMETER | UNIT | |||
|---|---|---|---|---|---|---|
| Measure range | ±30 | ±60 | ±90 | 0~360 | ° | |
| Measure axis | X Y | X Y | X Y | X | Axis | |
| Zero output | 0° output | 2.5 | 2.5 | 2.5 | 2.5 | V |
| Resolution | 0.02 | 0.03 | 0.05 | 0.08 | ° | |
| Measure accuracy | @25℃ | 0.1 | 0.1 | 0.15 | 0.2 | ° |
| Long term. stability | <0.5 | <0.5 | <0.5 | <0.5 | ° | |
| Zero Temp.coefficient | -40～85℃ | ±0.02 | ±0.02 | ±0.02 | ±0.02 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤150 | ≤150 | ≤150 | ≤150 | ppm/℃ |
| Power-on start time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response frequency | 20 | 20 | 20 | 20 | Hz | |
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥98000 hours/times | |||||
| Insulation Resistance | ≥100 MΩ | |||||
| Impact resistance | 100g@11ms, 3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms,10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | standard configuration: 1 meter wearproof, grease proofing, wide temperature, Shielded cables 4*0.3mm2 | |||||
| Weight | ≤135g (including 1 meter cable) | |||||
Resolution: It refers to the smallest change value that the sensor can detect and distinguish in the measurement range.
Measure accuracy: Refers to the combined error of linearity, repeatability, hysteresis, zero deviation, and horizontal axis error of the sensor under normal temperature conditions. Long-term stability: refers to the deviation between the maximum value and the minimum value of the sensor under normal temperature conditions after a year of long-term work. Response time: It refers to the time required for the sensor output to reach the standard value when the sensor changes angle once.
