AKP342 High-Precision Vibration Sensor for Wind Turbine and Industrial Monitoring
APPLICATION

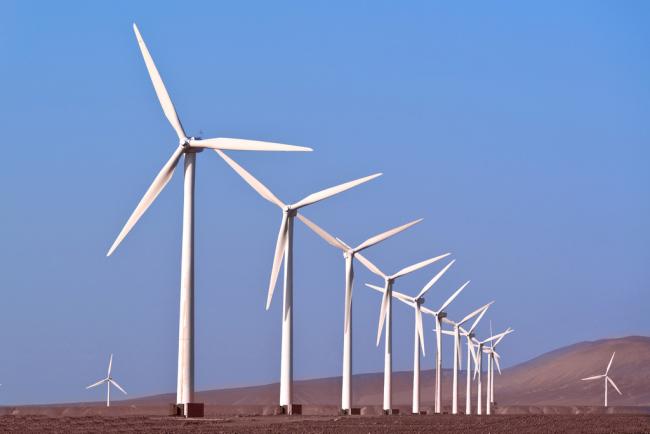

- Wind power generation monitoring
- Monitoring of bridges and dams
- Monitoring of ancient buildings
- High-speed rail monitoring
- Earth satellite communication vehicle
- Railway gauge, gauge leveling
- Satellite communication vehicle
- Geological equipment tilt monitoring
- Engineering vehicle leveling
FEATURES
- Size: L82 × W70 × H42mm
- DC 9 ~ 36V wide voltage input
- Resolution 1ug
- IP 67 protection class
- Wide temp operation -40 ~ + 85 ℃
- Triaxial measurement
- Output mode RS485, RS422, RS232 optional
SPECIFICATIONS
| AKP342 | Parameter | Unit |
| Range | ±2 | g |
| Deviation calibration | <1 | mg |
| Measure axial direction | X,Y,Z | Shaft |
| Repeatability of power-up/power-down | <2 | Mg (Max) |
| Temp coefficient of deviation | 0.15 | Mg/℃ (typical) |
| Resolution | 1 | ug |
| Nonlinearity | <1 | % FS (Max) |
| Bandwidth (3DB) | 0.1~10 | Hz |
| Cross-axis sensitivity | 1 | % |
| Transverse vibration sensitivity ratio | 1 | % |
| Noise density | 21 | μg/√Hz |
| Resonant frequency | 2.4 | kHz |
| Acceleration power-up settling time | 1S | |
| FFT power-up settling time | 30S | |
| Output rate | 5Hz,10Hz,25Hz,35Hz,50Hz,100Hz | |
| Output interface | RS232/TTL/S485 | |
| Communication protocol | 68 Protocol and MODBUS RTU Protocol | |
| Input (VDD _ VSS) | 9~36 VDC | |
| Operating current consumption | <16mA @ 12 VDC | |
| Weight | ≤ 400g (excluding cable) | |
MECHANICAL PARAMETERS
- CONNECTORS: Aviation plug connector
- Degree of protection: IP67
- Shell material: aluminum alloy anodized
- Installation: four M6 screws
1. What is the AKP342 triaxial vibration sensor?
AKP342 is a high-precision, low-noise triaxial vibration sensor designed for vibration and condition monitoring applications. It measures vibration along three axes and provides vibration data for industrial equipment and structural monitoring.
2. What is the frequency range of the AKP342 vibration sensor?
AKP342 can measure static vibration at 0 Hz and low-frequency vibration from 0.1 to 10 Hz. Its integrated FFT function can analyze vibration frequency and amplitude.
3. What data can the AKP342 vibration sensor measure?
AKP342 can calculate and provide RMS value, maximum value, minimum value, peak-to-peak value, dominant frequency and amplitude based on vibration measurement data.
4. Is AKP342 suitable for wind turbine vibration monitoring?
Yes. AKP342 is designed for applications such as wind turbine monitoring, where low-frequency vibration measurement and long-term stability are important for equipment condition monitoring.
5. What communication interfaces are available for AKP342?
AKP342 supports multiple communication interfaces, including RS485, RS422 and RS232, allowing integration with different industrial monitoring and control systems.
