Stein VOP RGB Ultra-Fine Color SorterDefining a New Standard of Purity in Fine Powder Sorting with Ultra-HD "Color" Vision
Sorting Fineness of 16-120 Mesh, Where Purity Lies in Every Detail
The Stein VOP RGB is designed for high-precision fine powder sorting. Equipped with an ultra-high-definition RGB camera system and a unique double-layer sorting structure, it accurately removes impurities such as iron spots and mica from quartz powder, significantly enhancing product purity and added value. Offering contamination-free operation, low energy consumption, and high returns, it is the ideal choice for purifying materials used in artificial stone, photovoltaic glass, and semiconductor-grade quartz.
| Model | VOP6 Ultra | VOP8 Ultra |
|---|---|---|
| Chute | 6 | 8 |
| Air Nozzle | 384 | 512 |
| Throughput | 16-26 mesh: 5-7t/h 26-40 mesh: 4-6t/h 40-70 mesh: 3-5t/h 70-120 mesh: 2-3t/h |
16-26 mesh: 8-10t/h 26-40 mesh: 7-8t/h 40-70 mesh: 5-7t/h 70-120 mesh: 3-5t/h |
| Voltage | 220V ~ 50/60Hz | 220V ~ 50/60Hz |
| Power (kW) | 7 | 8.4 |
| Air Pressure (MPa) | 0.6-0.8 | 0.6-0.8 |
| Air Consumption (L/min) | ≤3600 | ≤5000 |
| Unpacked Weight (kg) | 2350 | 3500 |
| Dimension (mm) | 2814×2029×2609 | 4053×2178×2661 |
- Ultra-HD RGB Vision System

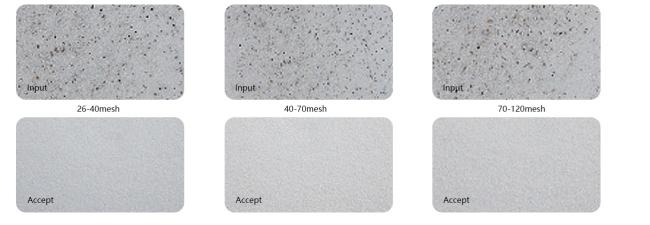

Accurately identifies iron spots, mica, and organic residues with a recognition accuracy rate exceeding 95%. - Dual-Layer Intelligent Sorting Structure
Features an innovative double-layer scanning and sorting design that enhances purity while minimizing mis-sorting. - Optimized for Fine Powders
Capable of stably sorting fine-particle quartz powder in the 16-120 mesh range, overcoming the limitations of traditional equipment in processing fine powders. - Non-Contact Air Jet Sorting
Utilizes clean air-jet technology to prevent secondary contamination of materials and preserve the original product quality.
- ✔ Artificial Stone Manufacturers
- ✔ Solar Photovoltaic Glass Producers
- ✔ High-Purity Quartz Material Processors for Semiconductors
- Significantly Enhances Product Value
Increases product added value by 30%–50% compared to traditional washing or acid-leaching processes. - Green, Low-Carbon Production
Reduces wastewater discharge by 90% compared to traditional processes; lowers energy consumption by 60% compared to electrostatic separation. - Efficient and Stable Operation
A single machine can replace an entire "washing-drying-magnetic separation" production line, with a sorting efficiency 100 times that of manual labor, ensuring consistent quality. - Fast Return on Investment
Typical payback period is under 12 months in high-purity quartz production.
Step into a Purer, Greener, More Efficient Manufacturing Future
The Stein VOP RGB offers more than just a machine; it provides a complete fine powder sorting solution characterized by high purity, sustainability, and high returns. Let us help you upgrade your process and gain a competitive edge in material purity.
