55m Telecommunication Steel Tube Lattice Tower 4 Legs Self Supporting
Price:
USD1880-2100
MOQ:
1set
Delivery Time:
20-30days
Brand:
Guangxin
Product Description

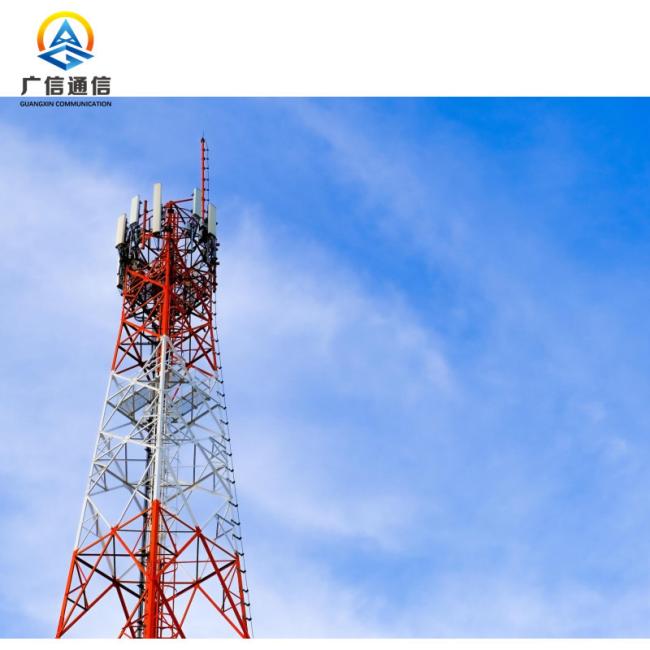

55m Telecommunication Steel Tube Lattice Tower
55m Telecommunication Steel Tube Lattice Tower
Specification:
| Material | Tubular Steel, Angle steel plates, flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
The 55m Telecommunication Steel Tube Lattice Tower is optimized for medium to heavy loads which is used for standard cellular sites.
Altai towers can be equipped with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,
obstruction lights, lightning protection kit and more. All of the accessories can be installed at any desired height and
orientation according to customer Specification.
Material:Q235,Q345 usually
Design Standard: AWS D 1.1; ASTM123, ANSI-TIA-222-H
Bolt Grade: 6.8, 8.8
Basic Wind Speed: 0-330km/h
Working and Rest Platform:height and quantity up to clients
Antenna Load:depends on clients
Steel Tube Tower Color:customized
Galvanized: according to ASTM A123 standard hot dip galvanized. We have our own galvanization plant.
Usage of Towers: GSM/CDMA Equipment
Payment: 30% deposit and 70% before shipment
Delivery Time:usually 30 days after deposit received
Design Standard: AWS D 1.1; ASTM123, ANSI-TIA-222-H
Bolt Grade: 6.8, 8.8
Basic Wind Speed: 0-330km/h
Working and Rest Platform:height and quantity up to clients
Antenna Load:depends on clients
Steel Tube Tower Color:customized
Galvanized: according to ASTM A123 standard hot dip galvanized. We have our own galvanization plant.
Usage of Towers: GSM/CDMA Equipment
Payment: 30% deposit and 70% before shipment
Delivery Time:usually 30 days after deposit received
Warranty: at least 25 years
