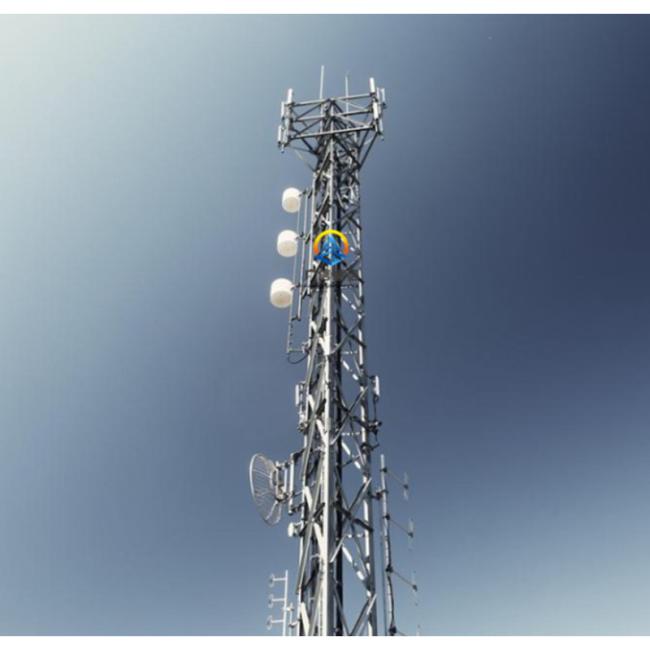

Signal Transmitting Antenna Radio Relay Galvanized Steel Towers
Signal Transmitting Antenna Radio Relay Galvanized Steel Towers
Specification:
| Material | Tubular Steel, Angle steel plates, flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Highlights of self-supporting tower
● Leading design concept.
● Versatility, modular design, flexible configuration of accessories.
● Tower group design, modification and adjustment.
● The tower section is universal, and the same tower section taken from the same mother tower is completely common in different tower types.
● Lower costs.
● Self-supporting tower light weight.
● Self-supporting tower installation cost is good.
● Self-supporting tower installation time is short.
● High reliability.
The tubular steel tower consists of up to four sections, joint by means of bolted flanges. The tower is built on the foundation using anchor bolts, which set into concrete at the foundation.
The tower can be climbed from the inside and is equipped with working platforms and a ladder with fall protection system. Optionally, a service lift or climbing assistance can be installed.
The bottom cabinet sections are arranged in the tower bottom. The cabinet sections are connected to the generator and the top cabinet in the nacelle via power and control cables.
At the tower top the cables are routed through a cable loop. It allows the nacelle to turn several times in each direction without damaging the cables. The power cables between WTG and grid are routed through conduits.
The tower is protected against corrosion with a special sandblasting procedure and by applying an epoxy resin coating to the tower surface.
The foundation is project-specific, depending on the ground conditions and the local rules and regulations.
