15m 45m Galvanized Steel Tubular Pole Hot Dip Monopole Cell Tower
15m 45m Galvanized Steel Tubular Pole Hot Dip Monopole Cell Tower
High Mast Landscape Tower, Galvanized Steel Light Pole and Communication Antenna Tower, 15m to 45m high steel Pole and Tower Customized to customer's designs, speficications, requirements and drawings.
As a professional manufacturer of steel poles and towers, we’re producing all kinds of steel poles for a vast range of applications such as communication macrocell and microcell stations, street/roadway/ highway lighting and traffic signal control and monitor, landscaping etc. In addition, we can also create new designs of steel poles, towers and gantry structures to meet your aesthetic and functional demands.
- Steel tower: 3 legs and 4 legs lattice tower (self-supporting tower or guyed wire tower)
- Steel pole: street light pole, high mast light tower, communication antenna monopole tower, landscape antenna/light tower
Specifications
| Descriptions | Steel poles and towers for mounting communication antennas, microwaves, RRUs etc. |
| HS Code | 7308900000 |
| Material | Weldable structural carbon steel |
| Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
| Yield Strength | 235-355MPa |
| Height | 5m to 55m or other specified height |
| Thickness | 4mm to 20mm, depending on height of pole. |
| Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
| Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
| Design | Single, dual or multiple platforms and brackets |
| Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
| Galvanization | 65-100 Microns |
| Coating | 35-80 Microns (optional) |
| Color | Silver, grey, black, white, blue, yellow etc. |
| Applications | GSM, radio, 3G/4G/5G microcell, macrocell and other communication purposes or power transmission and distribution. |
The steel high mast poles are designed with platforms or brackets for mounting antennas or other facilities as per requests. The designs of platforms and brackets are also customized to requirements for different connectors of antennas or other facilities. With custom special designs, the steel towers or poles are used for not only telecommunication or power transmission or distribution but also for landscape decorations.
Applicable Examples of Steel Tower and Pole
Communication/power transimission or distribution Tower
Street/Roadway/highway/stadium light pole
Traffic signal light pole,Traffic CCTV monitor camera and sign pole
Smart City Management System Light Pole
Signage/Advertising Billboard or LED display pole or gantry
High Mast Landscape/Lighting/Communication Steel Tower

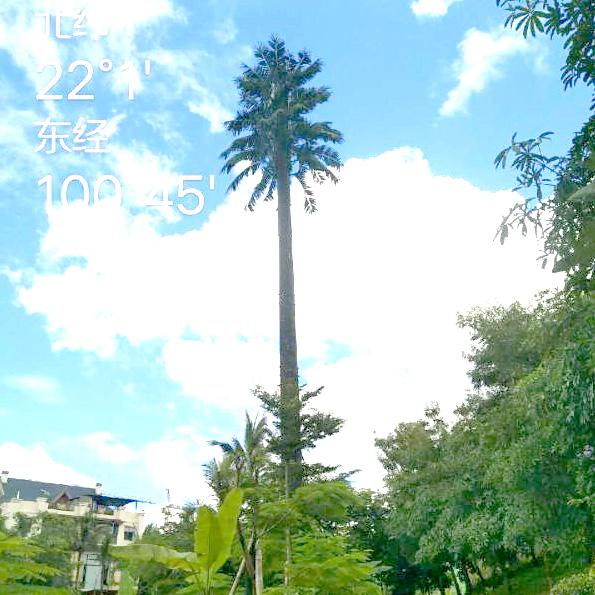

Artificial Tree Camouflaged Antenna Cell Tower
