Hot Dip Steel Rooftop Telecommunication Tower Q235 Microwave Towers
Hot Dip Steel Rooftop Telecommunication Tower Q235 Microwave Towers
Galvanized Steel Bipod Rooftop Communication Antenna Tower
Rooftop Telecommunication Tower Easy Constructed Self-supporting Rooftop Steel Tower for Mounting 5G Microcell Signal Transmission Stations
Bipod, Tripod or Lattice Rooftop Steel Tower
Free Standing Galvanized Steel Rooftop Towers
Rooftop Telecommunication Tower The rooftop steel tower is a small size tower for communication microcell station for enlarging the telecommunication signal coverage in the communities. It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 20m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as braces, connected by flanges, flat plates, bolts and nuts.
Specifications
| Material | Steel pipe/tubes, Angle steel plates, flat steel plates, bolts and nuts |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 5m to 20m, customized to requests |
| Design | 3 legs bipod, tripod self-supporting or free standing lattice tower |
| Structure | 1 to 2 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-2 platforms (optional), mounting brackets, ladder or steps, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations, TV signal transmission. |
How long can you deliver?
15-35 days after confirming shop drawings, depending on order quantity.
What’s your advantages comparing with other suppliers?
We have been specializing in this field for more than 10 years since 2009, we have professional engineers and designers, skilled workers, advanced production line equipped with CNC and laser cutting machines, welding machines, shaping machines, test instruments etc., we can produce the poles and towers or other steel frameworks according to customers’ designs, specifications, drawings, requirements. Our quality is very good but price is reasonable and competitive. We’re also providing excellent in-sales and after-sales services. We always provide good quality products and services beyond customers’ expectations.
Similar Steel Towers

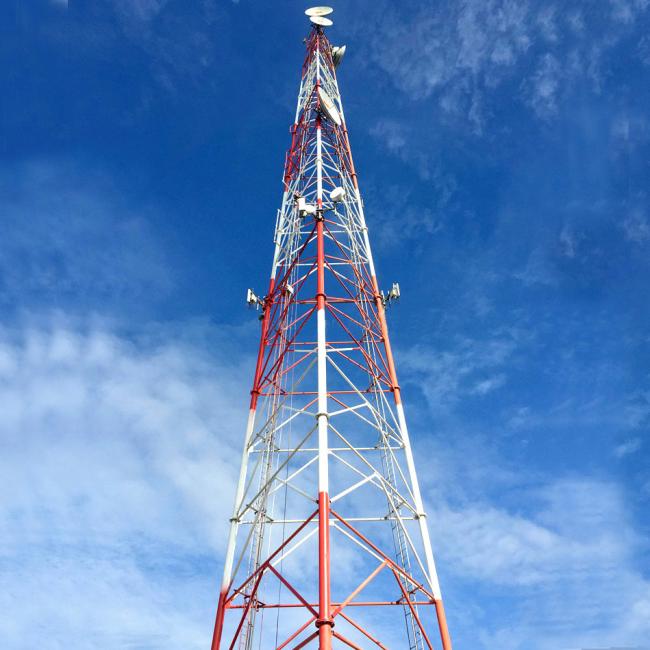

35m High Mast 3 legs tubular Galvanized Steel Lattice Antenna Tower
50m High 4 legs Self-supporting Angular Steel Communication Tower

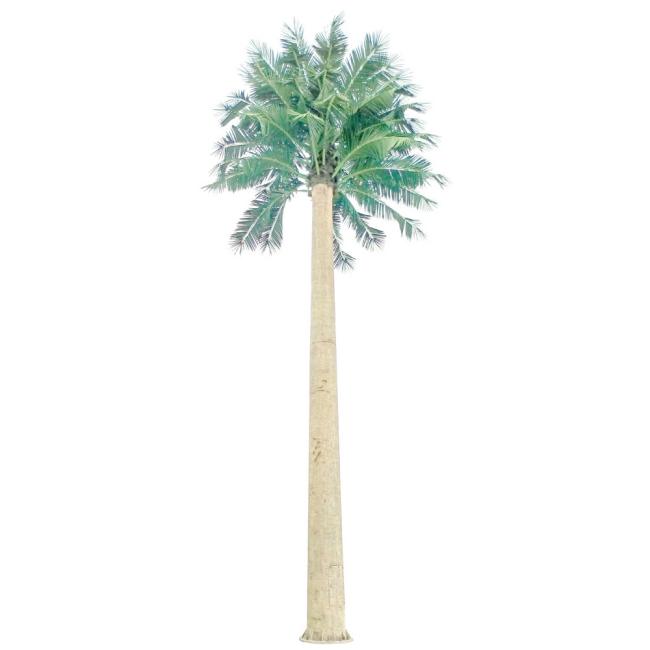

Articifial Palm Tree Camouflaged Communication Tower
