45m Tubular Steel Guyed Wire Towers Hot Dip Galvanized Towers
45m Tubular Steel Guyed Wire Towers Hot Dip Galvanized Towers
45m Guyed Wire Telescopic Lattice Tower For Communication Antenna Station
The structure of 3 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest or protection rod, ladder, earthing plates, anti-fall safety system (external cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.
Specifications
| Material | Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 3 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting flanges |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations |
Features
* Telescopic mast tower to match required heights.
* Custom designs and precise fabrication.
* Popular for Movable mobile communication transmission atenna station
* 3 or 4 legs lattice tower designs, flexible height from 10m to 70m.
* Motorized tower, easy for installation, transportation and moving.

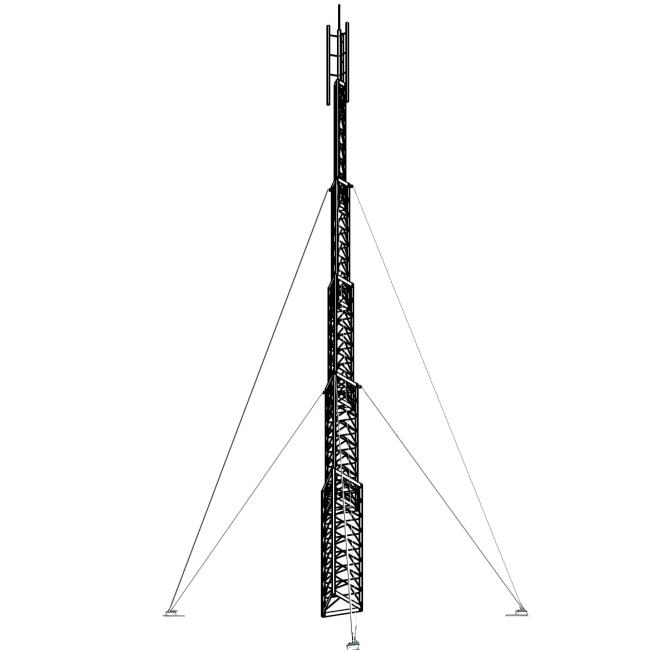

25m galvanized steel guyed wire telescopic Communication Tower
Similar Products
50m High Mast Angular Steel Lattice Communication Antenna Tower
Galvanized Steel Rooftop Bipod or Tripod or Lattice Microcell Antenna Tower
Communication Antenna Monopole Tower

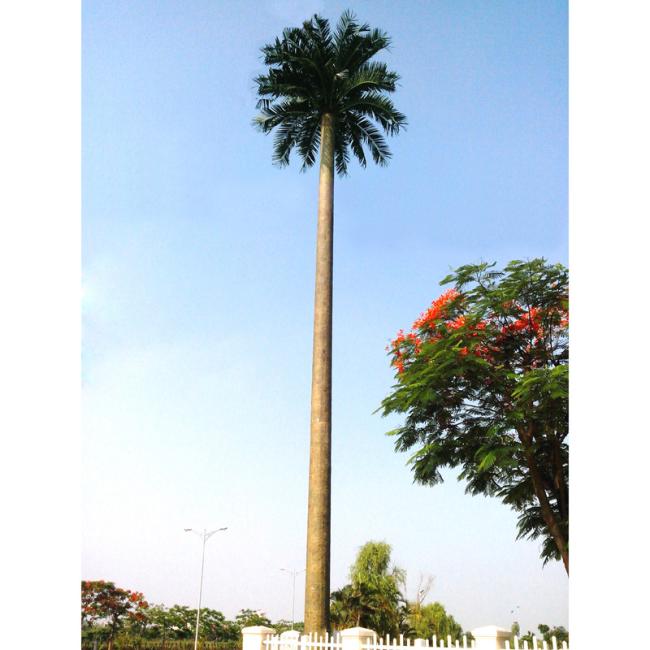

Artificial Palm Tree Camouflaged Communication Monopole Antenna Tower
