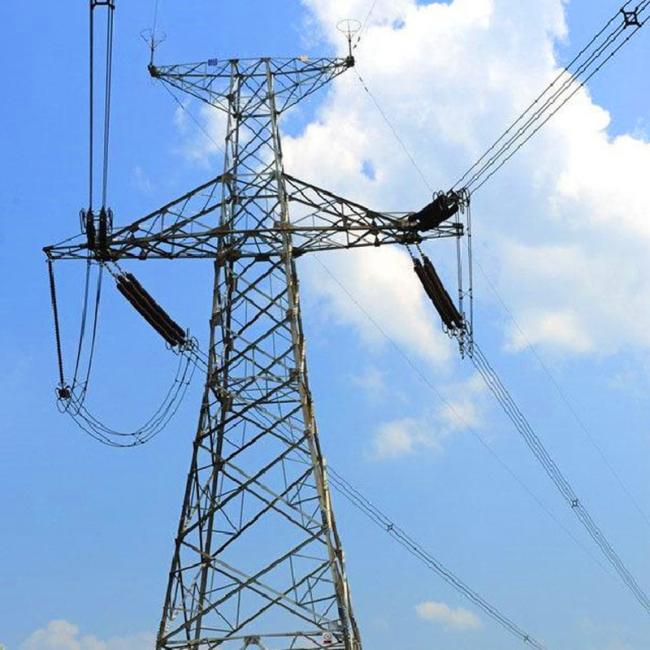

ODM Tubular Angular Multifunctional Transmission Steel Tower 50m Height
ODM Tubular Angular Multifunctional Transmission Steel Tower 50m Height
Description:
| Material | Steel pipes, Angle steel plates, flat steel plates, bolts and nuts distribution tower |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | Multiple platforms and brackets for mounting power cables or wires, customized to requests. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Electric Power Transmission Tower by their shapes is generally divided into the following types: glass type, cat head type, fonts on type, dry fonts type,bucket type, etc. By the uses, it can be divided into: tension tower, straight line tower, angle tower, terminal tower, etc.
Steel Tower Model: Steel tubular tower, Communication tower, Lighting rod tower, Radio and television tower, Electrified railway structure, Substation architecture Telecommunication tower.
Welding:
1.Welding complies with AWS D1.1 standard.
2. CO2 welding or submerged arc auto methods.
3. No fissure, scar, overlap, layer or other defects
4. Internal and external welding makes the pole more beautiful in shape
If customers need any other requirements of welding, we also can make adjustment as your request
