Monopole Antenna Communication Steel Tower 30-35 Meter DIN933

Price Negotiable

Price: USD1880-19990 per set

MOQ: 1 set

Delivery Time: 20-30 days

Brand: GUANGXIN

Product Description

30 Meter Towers Monopole Antenna Communication Steel Tower

Specification of Monopole Steel Tower:

Material	Angle steel plates, flat steel plate, bolts and nuts
Steel Type	Weldable low carbon structural steel
Steel Grade	GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength	Fy≥235MPa
Tensile Strength	Fu≥400MPa
Elongation	σ≥20%
Surface Finish	Hot dip galvanization
Galvanized layer	T≥65μm
Height	20m to 100m, customized to requests
Design	4 legs self-supporting or free standing lattice tower
Structure	1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode	CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening	Bolts and nuts, connecting plates
Configuration	Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load	0.35-1.0kN/sqm
Lifespan	20-50 years
Warranty	3 years
Applications	GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

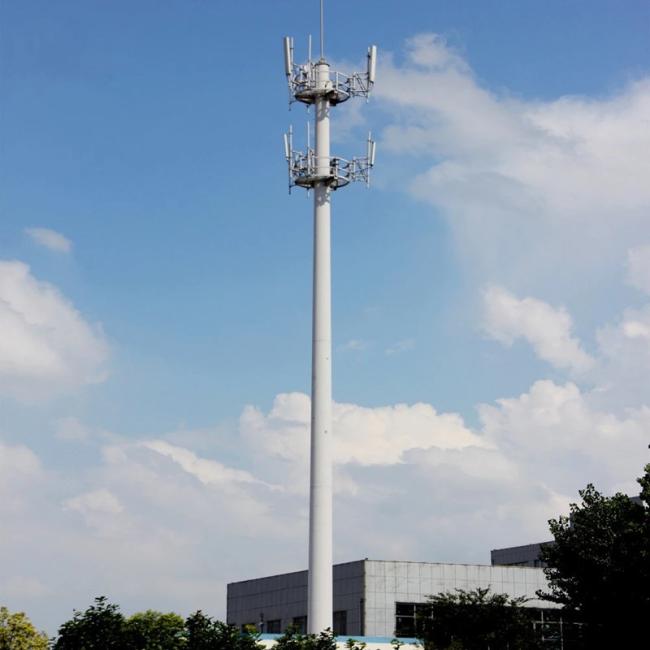

Monopole steel tower

Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance, covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the construction. Tower body adopt more reasonable section, which is connected through high strength bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.

Steel tower:
What is the Communication lattice tower? Communication Tower Product Description:
Communication tower is a kind of signal transmission tower, also called signal transmission tower or signal tower, main function support signal, support for signal transmission antenna, used for mobile, Unicom, telecommunication, traffic satellite positioning system (GPS) and other communications departments.

Why Choose Us:
1. You can save plenty of money. (Our products are high-quality, their survice life usually more than 50 years.)

2. You can save lots of time. (We try our best to serve customers and reply within 12 working hours.)

3. You don't have any worry. (We have our own producing and designing team, impeccable after-sales service.)

4. You are wise. (We can give you the most reasonable price without agent or intermediary.
