Single Tube 30m Telecom Monopole Tower Galvanized Steel Q235B

Price Negotiable

Price: USD1880-19990 per set

MOQ: 1 set

Delivery Time: 20-30 days

Brand: GUANGXIN

Product Description

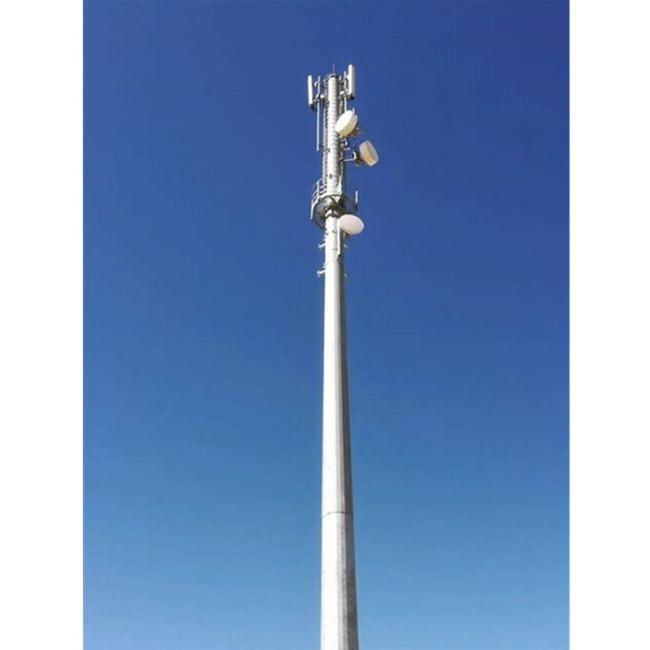

30m Telecom Monopole Tower

Specification:

Single tube tower,also called monopole tower, is a commonly used type. It belongs to the field of pipe tower technology, including tower body and working platform on top of the tower. At the bottom and on the working platform of the tower, there is a door opening respectively, antenna support is fixed on the fence of the platform. It can used for GSM, Microwave, Telephone, Wifi, Networking, Transmission.

Specificationi of Single Monopole Steel Pipe:

Material	Angle steel plates, flat steel plate, bolts and nuts
Steel Type	Weldable low carbon structural steel
Steel Grade	GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength	Fy≥235MPa
Tensile Strength	Fu≥400MPa
Elongation	σ≥20%
Surface Finish	Hot dip galvanization
Galvanized layer	T≥65μm
Height	20m to 100m, customized to requests
Design	4 legs self-supporting or free standing lattice tower
Structure	1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode	CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening	Bolts and nuts, connecting plates
Configuration	Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load	0.35-1.0kN/sqm
Lifespan	20-50 years
Warranty	3 years
Applications	GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

Monopole steel tubular tower

Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance, covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the construction. Tower body adopt more reasonable section, which is connected through high strength bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.

Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission and transmission.

Function:
1. Single tube towers are consisted of single tube and accessory, and main materials are generally made by steel plate bending.
2. The section of tower is circle or polygon, connected by inside flange, outside flange or plug-in.
3. The ladder and rest platform can be set inside the tower, and communication equipments can also be set there with high safety.
4. According to the customers' choice, the ladder can be placed inside or outside.
5. With advanced international design concept and calculation method, tower slope can be adjusted in accordance with geology and climate.
6. Convenient and safe to install, small area covering, and easy to select site.
