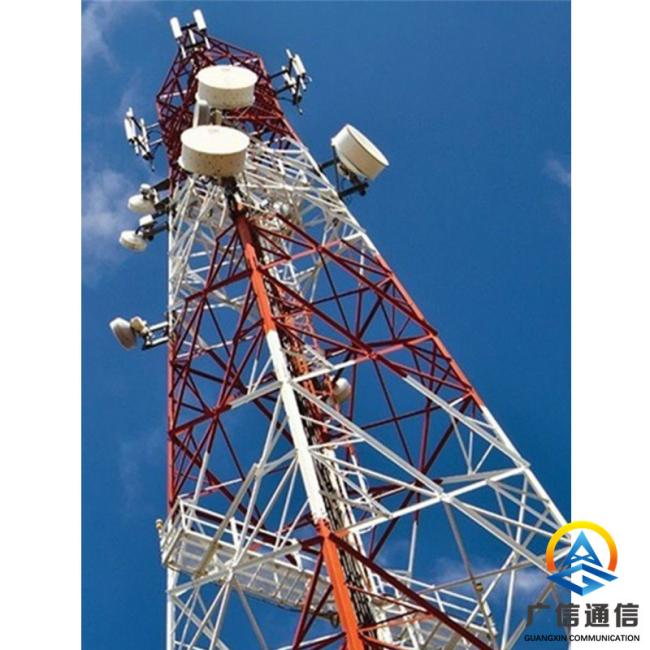

Galvanized Tubular Telecom Steel Tower With Radio Antennas Transmission
Galvanized Tubular Steel Telecom Towers with Radio Antennas Transmission
Specification:
| Material | Tubular Steel, Angle steel plates, flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Self-support Galvanized Tubular Steel Signal Transmission Tower Made of Steel Tubes and Plates
3 or 4 legs Self-supporting Galvanized Steel Lattice Communication Tower
Tubular Steel Lattice Telecommunication Tower with 3 legs, free standing fixed by steel frame concrete foundations
Steel Radio Tower, GSM and 4G/5G cellphone station tower, antenna tower, TV tower, radar tower, lighting tower and watching tower
High quality structural low carbon steel tower used for mounting telecom, radio and TV antennas
Professional factory of telecom towers, lighting towers and poles from Guangzhou, China
Tower Accessories
Anti-Climbing Device
Danger Plate
Tower Phase Plate
Tower Circuit Plate
Tower Number Plate
Features:
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.
