Micro High Torque Low Rpm 22mm 28mm 32mm Dc 6v 12v 24v Planetary Gear Motor
Micro high torque low rpm 22mm 24mm 28mm 32mm 36mm dc 6volt 12volt
24volt planetary gear motor with encoder
Product introduction
This is 28mm dc 12v-24v planetary gear motor,the planetary gearbox can withstand high
torque,it's can with carbon-brush motors and brushless motor,the voltage can be 6 v 7.2 v
8 v 9 v 12 v 24 v,the parameters and shaft can customized according requirement,the brush
motors can with 12ppr and 16ppr encoder.
Brand:Kind Motor
| Model | KPM32-395-EN |
| Gears Material | All Metal |
| Gearbox Reduction ratio | 1:5～1:2142 |
| Motor model | KRS385 brush motor,length is 38mm KRS395 brush motor,length is 47mm |
| Brush Type | Carbon-Brush/Brushless |
| Voltage | 4.5 v,5 v,6 v,7.4 v,9 v,12 v,24 v |
| Speed | 1rpm ～3300rpm |
| Rated Torque |
＜1.5Nm
|
| Shaft Size | 6mm D shaft(Can Customized) |
| Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

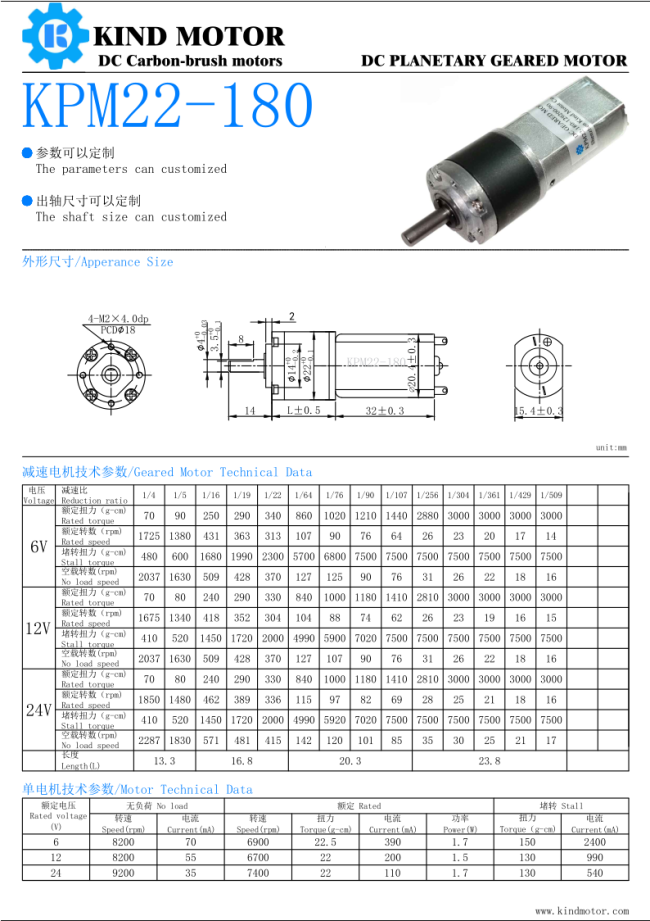

180 dc caron-brush motor with 22mm planetary gearbox

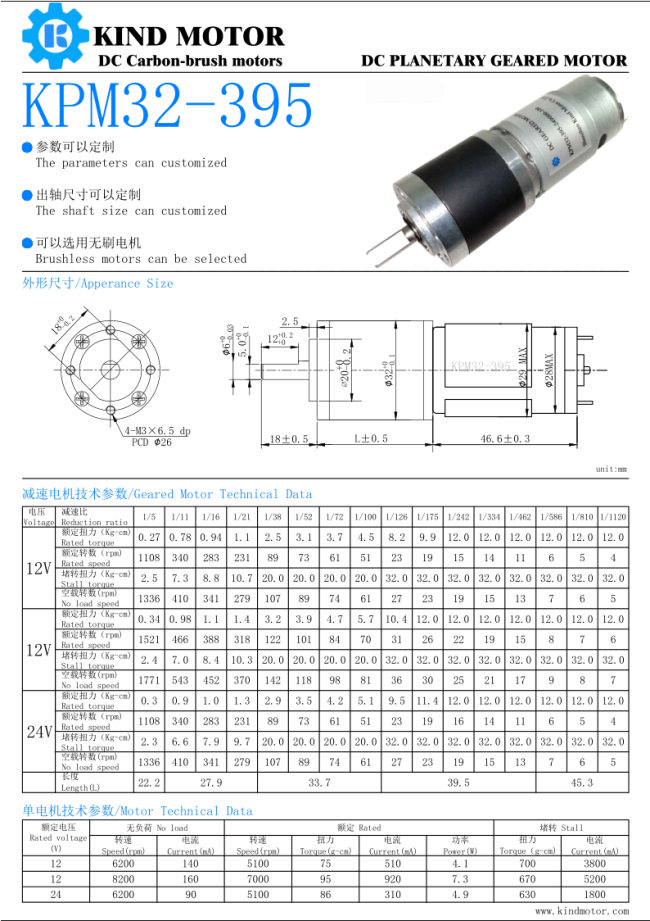

RS395 dc caron-brush motor with 28mm planetary gearbox

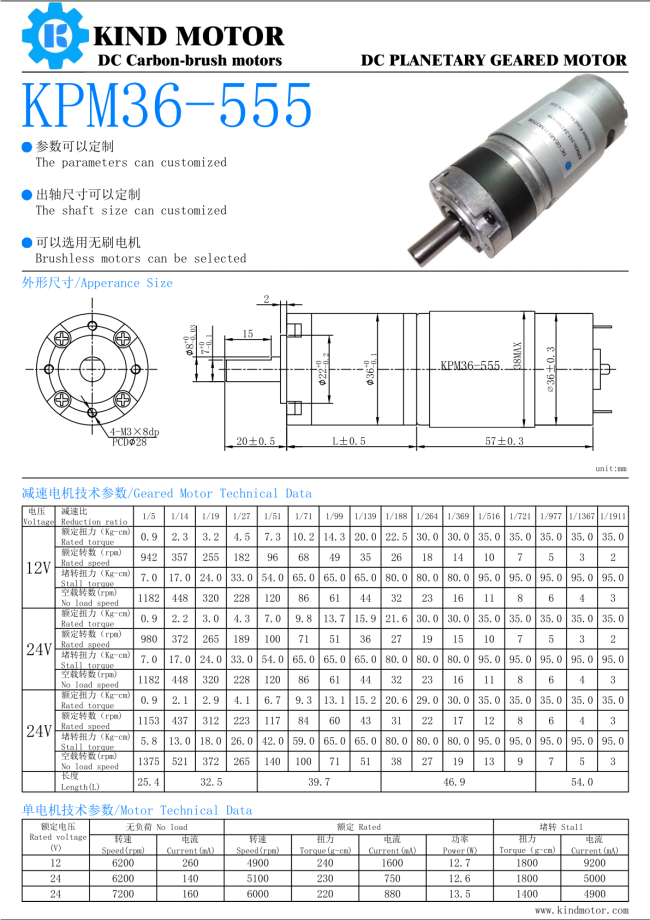

RS555 dc caron-brush motor with 36mm planetary gearbox
