0.09Nm/A 80mm 0.28NM Bldc Gear Motor 24v With Controller 2500rpm

Price Negotiable
Price: Negotiable
MOQ: 3 - 5 PCS
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Brand: HEJIE
Product Description

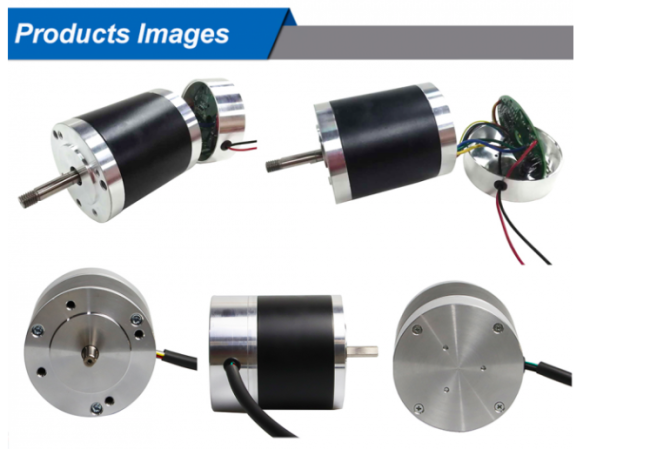

80mm Round 0.28N.m 2500rpm Option With Controller Integrated Bldc Motors



1.Production description:

Brand Name: HJMAOTOR Product Name:

Bldc motor with

integrated driver

Model Name: HJ80BLS01-16IE Number of Poles: 4
Resistance/ Phase: 0.68ohms Nominal Voltage: 24V
Speed: 2500 rpm Current: 0.8A
Rated Torque: 0.28N.m Rated Speed: 1950 rpm
Output Power: 60w Torque Constant: 0.09N.m/A
Back EMF constant: 9.6v/krpm Insulation Class: B
Size: 80x80mm Body Length: 91.5mm
