Low Noise 27dBA 33dBA DC 12V Brushless Fan Free Standing Mounting
Low Noise 27dBA 33dBA DC 12V Brushless Fan Free Standing Mounting
6020 DC 12v Axial Cooling Fan 60x60x20mm Brushless Motor Fan
What is a DC cooling fan?
DC fans also known as DC Brushless Fans are basically cooling fans engineered to meet requirements such as higher air flows at high static pressures. RENGANG manufactures Brushless DC fans in varied sizes ranging from 60 mm to 280 mm. These fans are available in the plastic blade as well as the metal blade.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
Basic Parameter:
|
Model No. |
Bearing |
Voltage |
Current |
Rated input power |
Airflow |
Air pressure |
Noise |
Speed |
||||
|
(V) |
(A) |
(W) |
(CFM) |
(m3/min) |
(inch-H2O) |
(mm-H2O) |
(dBA) |
(RPM) |
||||
|
RGD6020H12B(S) |
Ball/Sleeve |
12 |
0.16 |
1.92 |
16.71 |
0.47 |
0.13 |
3.18 |
33 |
4200 |
||
|
RGD6020M12B(S) |
0.12 |
1.44 |
15.02 |
0.42 |
0.11 |
2.80 |
31 |
3500 |
||||
|
RGD6020L12B(S) |
0.08 |
0.96 |
13.15 |
0.37 |
0.10 |
2.52 |
27 |
3000 |
||||
|
RGD6020H24B(S) |
24 |
0.13 |
3.12 |
16.71 |
0.47 |
0.13 |
3.18 |
33 |
4200 |
|||
|
RGD6020M24B(S) |
0.10 |
2.40 |
15.02 |
0.42 |
0.11 |
2.80 |
31 |
3500 |
||||
|
RGD6020L24B(S) |
0.08 |
1.92 |
13.15 |
0.37 |
0.10 |
2.52 |
27 |
3000 |
||||
All designs and specifications are for reference only and are subject to change without prior notice.
The different customer requirements and different raw materials will lead to different data.
The provider data are used for reference only. For future information, please contact us.
Warranty: 1 Year
Type: Axial Flow Fan
Customized Support: OEM, ODM.
Function(optional): FG, RD, PWM
Feature(optional ): Locked Motor Protection,Auto Restart,Polarity Protection,Soft Start
After-sales Service Provided: Free Spare Parts
Motor: DC Brushless Motor
Storage Temperature: -20℃~80℃
Operating Temperature: -10℃~70℃
Insulation Class: Class B
Applicable: Home Use, Energy & Mining, servo system, etc
How to Choose a Fan :
Fan Type, DC/AC
Case Size (Dimensions)
Speed
Air Flow
Noise
Rating Voltage, 3V/5V/12V/48V/115V/220-240V
Bearing, Sleeve/2Ball
Wire, 2 lead wires/3 lead
wires/4 lead wires
Function: RD FG PWM
Wire Length
Plug Type:

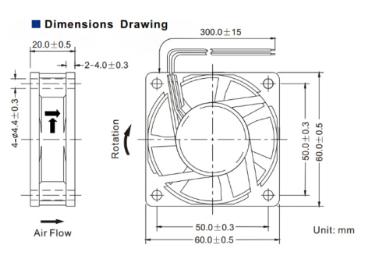

Drawing:
Characteristic Curve:
Parts:
Payment:
1.Trade Assurance: In the first order, we suggest you use Trade Assurance.
2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.
3.Western Union, Money Gram, Paypal, all available.
4.L/C: for large order.
Shipping:
1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.
2. if you have your own forwarder, please tell us the detailed information.
