92x92x38mm 9238 Dc Axial Cooling Fan 4 Pin 12v 24v 48v

92x92x38mm 9238 4-pin 12v 24v 48v Dc Brushless Axial Flow Cooling Fan

Description of  92x92x38mm 9238 4-pin 12v 24v 48v Dc Brushless Axial Flow Cooling Fan

The 92x92x38mm 9238 4-pin 12v 24v 48v DC brushless axial flow cooling fan is a type of fan designed to move air parallel to the axis of the fan. It has a square shape with dimensions of 92mm x 92mm x 38mm (length x width x height).

This particular model, the 9238, has a 4-pin connector and can operate on 12V, 24V, or 48V DC power. The 4-pin connector allows the fan speed to be controlled through pulse width modulation (PWM), which can help to reduce noise and power consumption when the cooling requirements are low.

DC brushless fans are more efficient and quieter than traditional DC fans because they use electronic commutation instead of brushes. They also have a longer lifespan and require less maintenance.

The axial flow design of this fan makes it ideal for applications that require high airflow rates and low pressure. It is commonly used for cooling electronic components such as computer processors, power supplies, and industrial equipment.

Overall, the 92x92x38mm 9238 4-pin 12v 24v 48v DC brushless axial flow cooling fan is a versatile and efficient cooling solution for a wide range of electronic applications.

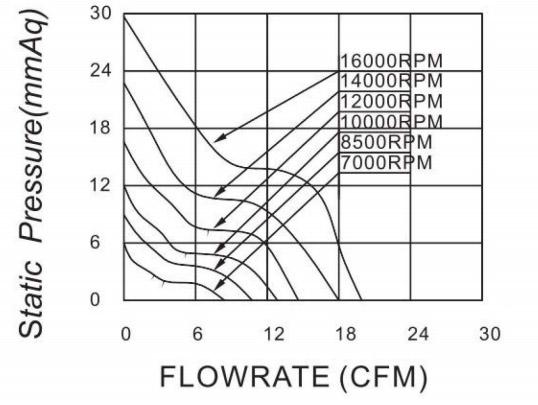

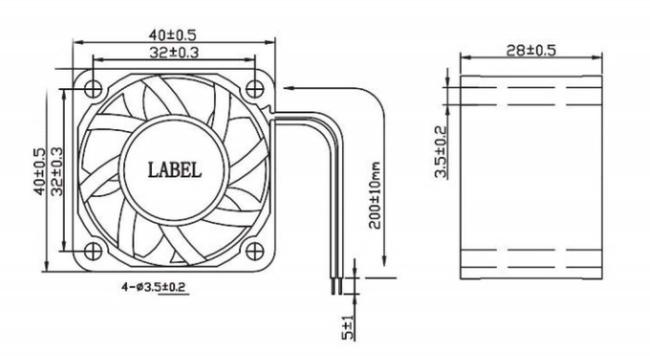

Specification of DC 4028 Axial Cooling Fan







Item		Specification/Condition
Dielectric Strength		500V/1mA/2s
Insulation Resistance		10MΩ (Ambient temperature 25℃)
Temperature Test of Run		△t=<70℃ Rated Voltage
Locked Rotor Protection		△t=<130℃ Rated Voltage
Pound resistance		It can withstand the shock from all three axis by 60g and two times per 11ms.
Vibration resistance		It can withstand the vilratiom from 5-30Hz,0.04g to 30-500Hz,2g peak to peak amplitude for 5 minutes to all three axis.
Lock Test		Locked for at least 72hrs at rated voltage,the fans run normally after lock released.
Reversal Volage Test		Test with reversal working voltage for 2~3minutes,all remain still,but all fans run normally after corrected voltage.
Environmental Specification
Item		Specification/Condition
Operating Temp. Range		Temperature:-10℃~70℃ Humidity:20%~85%RH
Storage Temperature		Temperature:-40℃~80℃ Humidity:20%~95%RH



Specification
Model	RGD9225D12B(S)
Bearing	Ball/Sleeve
Rated coltage(V)	12
Rated current(A)	0.80
Rated input power(W)	9.6
Nominal speed(RPM)	5000
Air flow(CFM)	100
Air pressure(mm-H2O)	17.36
Noise(dBA)	58
