China Compact DC110V Fan for Train Electrical Control Cabinet 200x70mm 4600RPM for sale

Compact DC110V Fan for Train Electrical Control Cabinet 200x70mm 4600RPM

Price Negotiable

Price: Negotiable

MOQ: 1PCS

Delivery Time: 5~8 working days

Brand: SURMOUNT

Product Description

Compact DC110V Fan for Train Electrical Control Cabinet 200x70mm 4600RPM

Description of Compact DC110V Fan for Train Electrical Control Cabinet 200x70mm 4600RPM

Introducing our compact DC110V fan, specifically designed for train electrical control cabinets. With a size of 200x70mm, it is perfectly suited for installation in tight spaces. The fan operates at a high speed of 4600RPM, ensuring efficient cooling and ventilation for the control cabinet. Its DC power supply of 110V ensures compatibility with train electrical systems. This fan is built to withstand the demanding conditions of train environments, providing reliable and efficient performance. Trust our fan to keep your train electrical control cabinet cool and operating optimally.

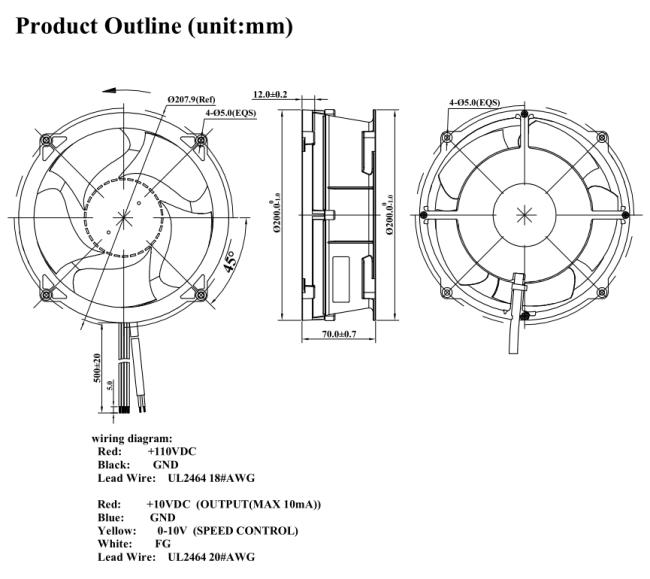

Specification of DC Axial Cooling Fan

Model : RGD20070M110B		Customer P/N:
Safety:
SPECIFICATION

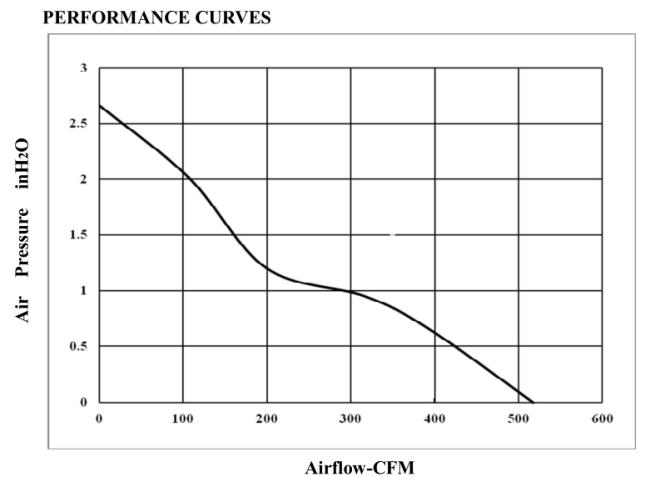

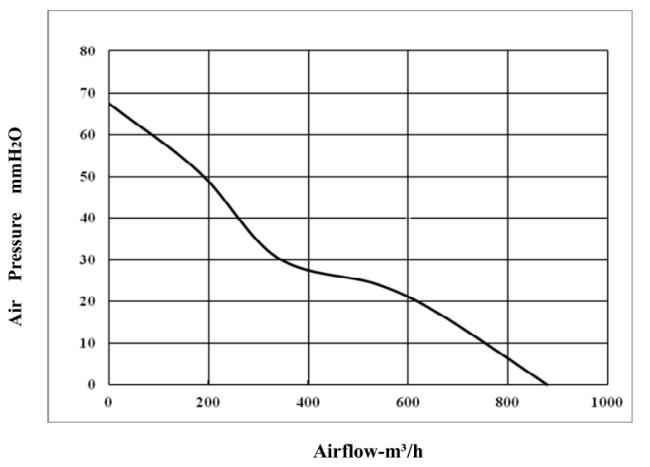

1. Dimension 2. Bearing System 3. Rated Voltage 4. Operating Voltage 5. Starting Voltage 6. Input Current 7. Input Power 8. Rated Speed 9. Rotation 10. Air Flow 11. Static Air Pressure 12. Soft Start 13. Speed Control 14. Tachometer Output 15. Auto Restart 16. Alarm Output 17. Noise Level 18. Lead Wire 19. Connector 20. Ambient temperature 21. Life Expectance 22. Insulation class 23. Operation mode 24. Type of protection 25. Number of blades 26. Dielectric Strength 27. Net Weight 28. Packing	Φ200×70 mm 2 Ball Bearing 110VDC 72~ 146VDC 72 VDC 1. 1A 121W 4600±5%RPM Counterclockwise, seen on rotor 517.7 CFM (879.5m³/h) 2.66inH2O (67.60 mm H2O) Yes PWM or 0~10VDC Open collector, 3 Pulses/Rev Yes No 69.5dB(A) UL2464, AWG20#, L=500mm NO -20~60℃ 50,000 hours continuous operating at 40℃ "B" Continuous operation (S1) IP32 5 1000VAC/60Hz, 1 min, Leakage current <=3.5 mA 1755 g Corrugated carton, /carton

Notes

1. PSCMF will not guarantee the products if the application of our products has exceeded the limitation which is specified on this specification.

2. Please do not touch the impeller with pressure and never handle the fan by the leadwires. The bearings and lead wire may be damaged.

3. PSCMF does not guarantee the product against the safety problems or failures caused by powder dust, drops of water or any object impeding the blade

4. If there is any data or related documentation different from this data sheet, this data sheet is the principal reference.

5. For the purpose of MIS, please indicate SPEC No. on every order.

6. In case the fan has no polarity protection function, wires with the same color(electrode) must be connected together during the assembly. (i.e: red+red, black+black) or the fan will be damaged immediately.

7. Please do not use the fan in the environment of corrosive gas, liquid or any detrimental gas.

8. Please do not store the fan in an environment of high/low temperature , high humidity or any detrimental gas. Please store the fan within 6 months , every 6 months there should be linkage of electrical current to the fan, even though the fan is stored in room temperature.

9. While the fan is in operation, please do not lock the fan intentionally for a long period of time, because the continuous stoppage will over-heat the IC and thus burn-out of the fan.

10. During the installation of the fan, please pay substantial attention to possible noise caused by resonance vibration.
