30mm 5V DC Axial Cooling Fan Mini Heat Dissipation For Small Devices
DC Axial Mini Cooling Fan 30x30x10mm 5V 12V Heat Dissipation For Small Devices
What is a DC cooling fan?
DC fans also known as DC Brushless Fans are basically cooling fans engineered to meet requirements such as higher air flows at high static pressures. RENGANG manufactures Brushless DC fans in varied sizes ranging from 60 mm to 280 mm. These fans are available in the plastic blade as well as the metal blade.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
DC Axial Cooling Fan RGD3010
Energy Saving Noise Reduction Soft Wind Long Lasting
Basic Parameters:
| Model No. | Bearing | Voltage | Current | Rated input power | Airflow | Air pressure | Noise | Speed | |||||
| (V) | (A) | (W) | (CFM) | (m3/min) | (mm-H2O) | (inch-H2O) | (dBA) | (RPM) | |||||
| RGD3010H5B(S) | Ball/Sleeve | 5 | 0.15 | 0.75 | 4.10 | 0.11 | 4.52 | 0.18 | 29 | 10000 | |||
| RGD3010M5B(S) | 0.12 | 0.60 | 3.27 | 0.09 | 3.57 | 0.14 | 23 | 8000 | |||||
| RGD3010L5B(S) | 0.10 | 0.50 | 2.46 | 0.07 | 2.00 | 0.08 | 18 | 6000 | |||||
| RGD3010H12B(S) | 12 | 0.12 | 1.44 | 4.10 | 0.11 | 4.52 | 0.18 | 29 | 10000 | ||||
| RGD3010M12B(S) | 0.10 | 1.20 | 3.27 | 0.09 | 3.57 | 0.14 | 23 | 8000 | |||||
| RGD3010L12B(S) | 0.08 | 0.96 | 2.46 | 0.07 | 3.00 | 0.12 | 18 | 6000 | |||||
The different customer requirements and different raw materials will lead to different data. The provider data are used for reference only. For future information, please contact us.
Applicable: Humidifier, Air Cleaner, etc
Customized Support: OEM, ODM.
After-sales Service Provided: Free Spare Parts
Operating temperature: -10℃~60℃
Storage temperature: -20℃~70℃
Warranty: 1 Year

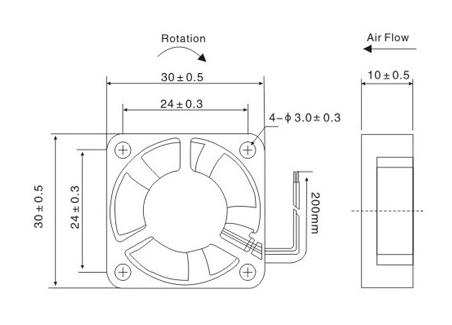

Drawing:
Performance Curve:
Payment:
1.Trade Assurance: In the first order, we suggest you use Trade Assurance.
2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.
3.Western Union, Money Gram, Paypal, all available.
4.L/C: for large order.
Shipping:
1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.
2. if you have your own forwarder, please tell us the detailed information.
FAQ
Q: What are the kinds of cooling fans or centrifugal fans supplied by your company?
A: we can provide a DC cooling fan, AC cooling fan, EC cooling fan, and blower fan.
Q: What are the kinds of information provided by the customer before inquiry?
A: Please kindly advise the size, voltage, type of bearing, the speed of the fan, or airflow.
Q: How many types bearing of our cooling fan are there in our company at present?
A: now we have two types of bearing for the fan, sleeve, and ball, working time of the sleeve is for 30,000 hours, the ball is for 50,000 hours.
Q: How to detect the data of the cooling fan in your company?
A: the speed and voltage are detected by the tachometer, airflow is found by the wind tunnel.
Q: How to control the quality of products in your company?
A: 100% total testing before each fan leaves our factory.
