Lightweight 6W 24V Brushless DC Motor Fan Used On Electrical Cabinet
DC Axial Cooling Fan 40x40x28mm 12V 24V DC Brushless Cooling Fan 4028
What is a DC cooling fan?
DC fans also known as DC Brushless Fans are basically cooling fans engineered to meet requirements such as higher air flows at high static pressures. RENGANG manufactures Brushless DC fans in varied sizes ranging from 60 mm to 280 mm. These fans are available in the plastic blade as well as the metal blade.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
DC Axial Cooling Fan RGD4028
Energy Saving Noise Reduction Soft Wind Long Lasting
Basic Parameter:
| Model No. | Bearing | Voltage | Current | Rated input power | Airflow | Air pressure | Noise | Speed | |||||
| (V) | (A) | (W) | (CFM) | (m3/min) | (inch-H2O) | (mm-H2O) | (dBA) | (RPM) | |||||
| RGD4028H12B(S) | Ball/Sleeve | 12 |
0.35 | 4.20 | 14.31 | 0.40 | 0.34 | 8.55 | 38 | 10000 | |||
| RGD4028M12B(S) | 0.25 | 3.00 | 12.88 | 0.36 | 0.30 | 7.71 | 36 | 9000 | |||||
| RGD4028L12B(S) | 0.18 | 2.16 | 11.45 | 0.32 | 0.27 | 6.85 | 34 | 8000 | |||||
| RGD4028H24B(S) | 24 | 0.25 | 6.00 | 14.31 | 0.40 | 0.34 | 8.55 | 38 | 10000 | ||||
| RGD4028M24B(S) | 0.18 | 4.32 |
12.88 |
0.36 | 0.30 | 7.71 | 36 | 9000 | |||||
| RGD4028L24B(S) | 0.12 | 2.88 | 11.45 | 0.32 | 0.27 | 6.85 | 34 | 8000 | |||||
The different customer requirements and different raw materials will lead to different data,
The provider data are used for reference only. For future information, please contact us.
Customized Support: OEM, ODM.
After-sales Service Provided: Free Spare Parts
Warranty: 1 Year
Insulation Resistance: Above 10M Between Lead Wire And Frame DC 500V
Applicable: Chiller, Electrical Cabinet, Household Appliance, etc

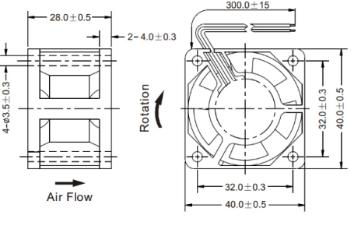

Drawing:
