4500RPM 60x60x15mm DC Axial Cooling Fan Brushless Soft Wind For Computer
DC Axial Cooling Fan 60x60x15mm 5V 12V 24V Brushless Axial Fan 6015
What is a DC cooling fan?
DC fans also known as DC Brushless Fans are basically cooling fans engineered to meet requirements such as higher air flows at high static pressures. RENGANG manufactures Brushless DC fans in varied sizes ranging from 60 mm to 280 mm. These fans are available in the plastic blade as well as the metal blade.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
DC Axial Cooling Fan RGD6015
Energy Saving Noise Reduction Soft Wind Long Lasting
Basic Parameter:
| Model No. | Bearing | Voltage | Current | Rated input power | Airflow | Air pressure | Noise | Speed | ||||
| (V) | (A) | (W) | (CFM) | (m3/min) | (inch-H2O) | (mm-H2O) | (dBA) | (RPM) | ||||
| RGD6015H5B(S) | Ball/Sleeve | 5 | 0.40 | 2.00 | 20.52 | 0.57 | 0.11 | 2.75 | 35 | 4500 | ||
| RGD6015M5B(S) | 0.25 | 1.25 | 18.10 | 0.51 | 0.09 | 2.31 | 32 | 4000 | ||||
| RGD6015L5B(S) | 0.15 | 0.75 | 16.25 | 0.46 | 0.08 | 2.15 | 27 | 3500 | ||||
| RGD6015H12B(S) | 12 | 0.17 | 2.04 | 20.52 | 0.57 | 0.11 | 2.75 | 35 | 4500 | |||
| RGD6015M12B(S) | 0.15 | 1.60 |
18.10 |
0.51 | 0.09 | 2.31 | 32 | 4000 | ||||
| RGD6015L12B(S) | 0.11 | 1.32 | 16.25 | 0.46 | 0.08 | 2.15 | 27 | 3500 | ||||
| RGD6015H24B(S) | 24 | 0.15 | 3.60 | 20.52 | 0.57 | 0.11 | 2.75 | 35 | 4500 | |||
| RGD6015M24B(S) | 0.10 | 2.40 | 18.10 | 0.51 | 0.09 | 2.31 | 32 | 4000 | ||||
| RGD6015L24B(S) | 0.08 | 1.92 | 16.25 | 0.46 | 0.08 | 2.15 | 27 | 3500 | ||||
The different customer requirements and different raw materials will lead to different data.
The provider data are used for reference only. For future information, please contact us.
Customized Support: OEM, ODM.
Type: Axial Flow Fan
Color: Black
Product Name: DC Axial Cooling Fan/DC Brushless Cooling Fan
After-sales Service Provided: Free Spare Parts
Insulation Class: Class B
Motor: DC Brushless Motor
Warranty: 1 Year
Storage Temperature: -20℃~80℃
Operating Temperature: -10℃~70℃
Applicable: Small Appliances, Small Equipment, etc

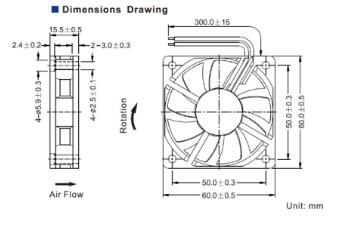

Drawing:
Characteristic Curve:
Parts:
