Rohs Certified 92x92x25mm AC Axial Cooling Fan Industrial For Welding Machine
AC Axial Cooling Fan 92x92x25mm 110V 220V Air Flow Fan For Welding Machine
What is an AC axial fan?
Axial AC fans are a type of fan that blows air along the axis of the fan—that is, the fan's curved blades force air to move in parallel with the shaft on which the blades rotate. ...
Some of the typical applications for AC cooling fans include Industrial equipment. Manufacturing machines. White goods.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
AC Axial Cooling Fan RG9225
Energy Saving Noise Reduction Soft Wind Long Lasting
Basic Parameter:
| Model No. | Bearing | Frequency | Voltage | Current | Rated Input Power | Air Flow | Static pressure | Noise | Speed | |
| (Hz) | (V) | (A) | (W) | (CFM) | (mm-H2O) | (dBA) | (RPM) | |||
| RG9225B(S)1H | Ball/Sleeve | 50/60Hz | 100~125V | 0.12/0.10 | 14/13.5 | 30/37 | 3.3/4.83 | 32/37 | 2500/2900 | |
| RG9225B(S)1M | 0.09/0.08 | 11/10 | 25/30 | 3/3.5 | 25/33 | 2300/2600 | ||||
| RG9225B(S)1L | 0.07/0.07 | 9/8 |
21/22 |
2.7/2.6 | 22/24 | 2000/2200 | ||||
| RG9225B(S)2H | 220~240V | 0.07/0.06 | 14/13.5 | 30/37 | 3.3/4.83 | 32/37 | 2550/2900 | |||
| RG9225B(S)2M | 0.06/0.06 | 11/10 | 25/30 | 3/3.5 | 25/33 | 2300/2600 | ||||
| RG9225B(S)2L | 0.05/0.05 | 9/8 | 21/22 | 2.7/2.6 | 22/24 | 2000/2200 | ||||
All designs and specifications are for reference only and are subject to change without prior notice.
The different customer requirements and different raw materials will lead to different data.
The provider data are used for reference only. For future information, please contact us.
Customized Support: OEM, ODM.
After-sales Service Provided: Free Spare Parts
Storage Temperature: -20℃~80℃
Operating Temperature: -10℃~70℃
Insulation Class: Class B
Motor: Shaded Pole Induction Motor
Waterproof Class: IP55
Applicable:
Power Connection:
Terminal
Lead Wire

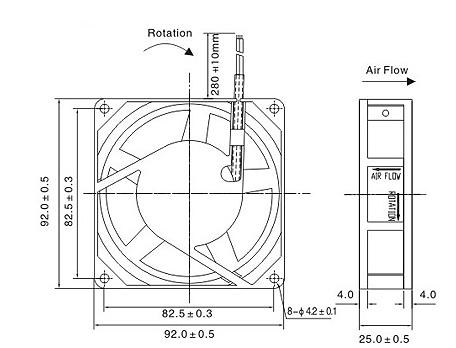

Drawing:
Characteristic Curve:
Parts:
Payment:
1.Trade Assurance: In the first order, we suggest you use Trade Assurance.
2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.
3.Western Union, Money Gram, Paypal, all available.
4.L/C: for large order.
Shipping:
1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.
2. if you have your own forwarder, please tell us the detailed information.
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V 48V 60V and72V.
AC fan is powered by AC voltage, normal voltage is 110V,220V, and 380V.
Q3:How about the lifetime of a fan?
A3:
| Bearing type | Lifetime |
| Dual Ball Bearing | 50000 hours |
| Sleeve Bearing | 20000 hours |
| Hydraulic Sleeve Bearing | 30000 hours |
Q4: What affects the quoted price for the fan?
A4:
| Specification | Example |
| 1 size of the fan | 4010 (40*40*10mm) |
| 2 Voltage | 5V12V24V |
| 3 current | 0.15A |
| 4 speed | 8000RPM |
| 5 airflow | 8.6CFM |
| 6 noise | 24dBA |
| 7 bearing type | ballsleeveHydraulic sleeve |
| 8 two-wire or three-wire | 2 wire |
| 9 cable length | 100mm |
| 10 connector type | 2 pin,2.5mm pitch |
| 11 function | FGRDPWMSoft Start ...... |
| 12 quantity | 1001000500010000 ...... |
Q5:Certificate?
A5:FCC,CE, ROSH,ISO9001,ISO14001 Approved.
Q6:What is the delivery time?
A6:Sample lead time:3-5 days
Mass production delivery lead time:2-3 weeks(Depend on the quantity)
Q7:Delivery ways?
A7:FedEx, DHL, UPS, TNT Door to Door service, By Air, By Sea, etc.
Q8:Payment terms?
A8: By T/T or Paypal.
100% payment for sample orders.
30% as deposit and 70% balance before shipment.
Q9: What is the fan used for?
A9:
| Office supplies | 3D printers |
| Industry & Scientific | Stage lighting, VR equipment, Intelligent Manicure machine, Projector, High-speed camera, Head-mounted display, Automotive industry, Cabinet industry, Power industry, UAV application, Electric forklift, LED lighting industry, Handheld air detector, Charging machine, Nebulizer. |
| Home & Kitchen | Electromagnetic oven, Humidifier, Smart toilet, Intelligent household lampblack machine, Air purifier, Car GPS, Car LED lamp, Aromatherapy machine. |
| Computer appliances | The CPU cooler, Case. |
