1000 CFM 280mm CPU Cooler Housing , High Speed Cooling Fan Aluminium Alloy
280x280x80mm 110V 220V 380V All-Metal Cooling Fan Housing High-Temperature Resistance 1000CFM AC Cooling Fan
What is an AC axial fan?
Axial AC fans are a type of fan that blows air along the axis of the fan—that is, the fan's curved blades force air to move in parallel with the shaft on which the blades rotate. ...
Some of the typical applications for AC cooling fans include Industrial equipment. Manufacturing machines. White goods.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
Overview
All-Metal Cooling Fan RGW28080B
Energy Saving, Start Fast, Noise Reduction, Soft Wind, Long Lasting
| Product Name: | DC Blower, DC Centrifugal Blower Fan |
| Brand Name: | SURMOUNT |
| Warranty: | 1 Year |
| Place of Origin: | Shenzhen, China |
| Motor: | Outer Rotor Motor |
| Life Time: | 40000 Hours |
| Customized Support: | OEM, ODM. |
| After-sales Service Provided: | Online Support |
| Storage Temperature: | -20℃~80℃ |
| Operating Temperature: | -30℃~90℃ |
| Weight: | 2830g |
| Size: | 280x280x80mm |
| Frame: | Aluminum Alloy |
| Impeller: | Aluminum Alloy |
| Insulation: | Class A |
| Bearing Type: | Dual Ball |
| Airflow: | 1341~1512CFM |
| Speed: | 2280~2570RPM |
| Rated Current: | 0.55~1.2A |
| Power: | 120W |
| Noise: | 65~70 dBA |
| Power Supply: | 110V/220V/380V |
Applicable: Garment Shops, Building Material Shops, etc

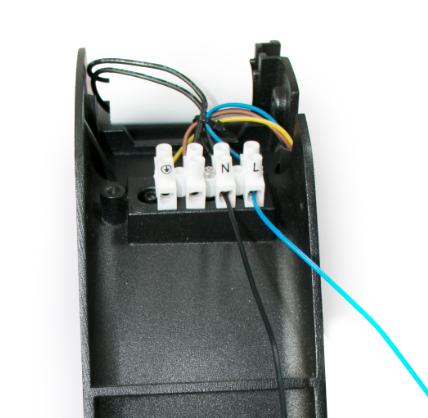

Power Connection(Optional):
Terminal
Lead Wire

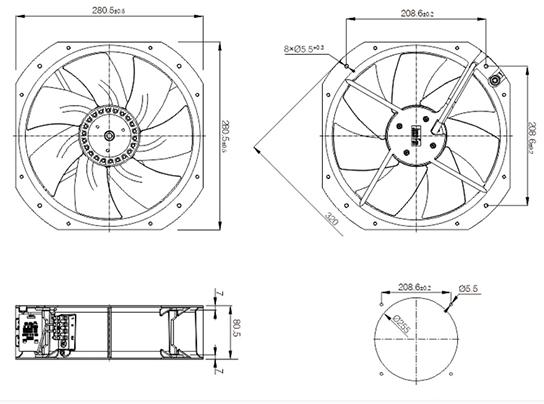

Drawing:

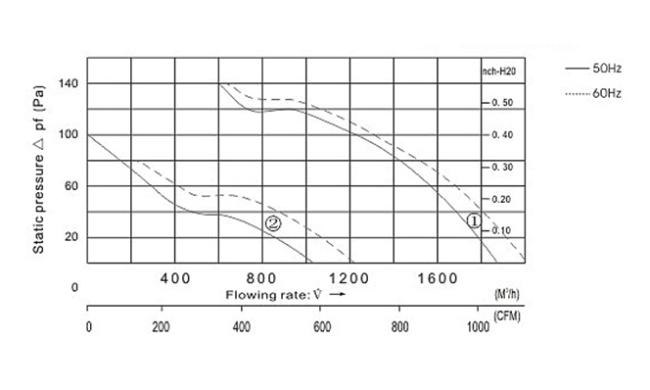

Characteristic Curve:
Parts:
Applicable: Manufacturing Plant, Machinery Repair Shops, etc
Payment:
1.Trade Assurance: In the first order, we suggest you use Trade Assurance.
2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.
3.Western Union, Money Gram, Paypal, all available.
4.L/C: for large order.
Shipping:
1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.
2. if you have your own forwarder, please tell us the detailed information.
1 What are the kinds of cooling fans or centrifugal fans supplied by your company?
Answer: we can provide a DC cooling fan, AC cooling fan, EC cooling fan, and blower fan.
2 What are the kinds of information provided by the customer before inquiry?
Answer: Please kindly advise the size, voltage, type of bearing, the speed of the fan, or airflow.
3 How many types bearing of our cooling fan are there in our company at present?
Answer: now we have two types of bearing for the fan, sleeve, and ball, working time of the sleeve is for 30,000 hours, the ball is for 50,000 hours.
4 How to detect the data of cooling fans in your company?
Answer: the speed and voltage are detected by the tachometer, airflow is found by the wind tunnel.
5 How to control the quality of products in your company.
Answer: 100% total testing before each fan leaves our factory.
