22W 120x120x38mm AC Axial Cooling Fan Soft Wind With 7 Leaves
AC Axial Cooling Fan 120x120x38mm 110V 220V High-Speed Waterproof Cooling Fan 12038 With 7 Leaves
What is an AC axial fan?
Axial AC fans are a type of fan that blows air along the axis of the fan—that is, the fan's curved blades force air to move in parallel with the shaft on which the blades rotate. ...
Some of the typical applications for AC cooling fans include Industrial equipment. Manufacturing machines. White goods.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
AC Axial Cooling Fan RG12038
Energy Saving Noise Reduction Soft Wind Long Lasting
Basic Parameter:
| Model No. | Bearing | Frequency | Voltage | Current | Rated Input Power | Air Flow | Static pressure | Noise | Speed | |
| (Hz) | (V) | (A) | (W) | (CFM) | (mm-H2O) | (dBA) | (RPM) | |||
| RG12038B(S)1H | Ball/Sleeve | 50/60Hz | 100~125V | 0.22/0.18 | 21/18 | 91/113 | 3.56/4.06 | 40/45 | 2650/2950 | |
| RG12038B(S)1M | 0.17/0.15 | 16/14 | 70/75 | 3/3.2 | 35/37 | 2200/2500 | ||||
| RG12038B(S)1L | 0.14/0.12 | 12/10.5 | 60/66 | 2.78/2.68 | 29/30 | 1800/2000 | ||||
| RG12038B(S)2X | 220~240V | 0.14/0.12 | 22/21 | 95/115 | 3.56/4.06 | 42/47 | 2700/3100 | |||
| RG12038B(S)2H | 0.12/0.11 | 20/19 | 91/113 | 3.56/4.06 | 40/45 | 2650/2950 | ||||
| RG12038B(S)2M | 0.09/0.08 | 16/14 | 70/75 | 3/3.2 | 35/37 | 2200/2500 | ||||
| RG12038B(S)2L | 0.08/0.08 | 12/10.5 | 60/66 | 2.78/2.68 | 29/30 | 1800/2000 | ||||
All designs and specifications are for reference only and are subject to change without prior notice.
The different customer requirements and different raw materials will lead to different data.
The provider data are used for reference only. For future information, please contact us.
| Product Name | AC Axial Cooling Fan |
| Warranty | 1 Year |
| After-sales Service | Free Spare Parts |
| Insulation | Class B |
| Motor | Shaded Pole Induction Motor |
| Waterproof Grade | Ip 55 |
| Certification | CE, RoHS |
| Lifetime | 30000 Hours for Sleeve Bearing, 40000 Hours for Ball Bearing |
| Customized Support | OEM, ODM |
| Storage Temperature | -20℃~80℃ |
| Operating Temperature | -10℃~70℃ |
| Power Connection | Terminal, Lead Wire |
Applicable: Manufacturing Plant, Machinery Repair Shops, etc
Power Connection:
Terminal
Lead Wire

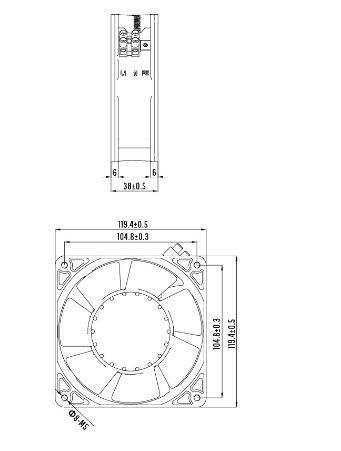

Drawing:
Characteristic Curve:
Parts:
