Black 150mm Outer Rotor Fan , 110 Volt Cooling Fans Aluminium Alloy
AC Axial Cooling Fan Capacitor Type 172x150x51mm High-Quality 220V 110V AC Axial Flow Cooling Fan 17050
What is an AC axial fan?
Axial AC fans are a type of fan that blows air along the axis of the fan—that is, the fan's curved blades force air to move in parallel with the shaft on which the blades rotate. ...
Some of the typical applications for AC cooling fans include Industrial equipment. Manufacturing machines. White goods.
What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.
AC Axial Cooling Fan Capacitor Type RGC17251
Energy Saving Noise Reduction Soft Wind Long Lasting
Basic Parameter:
| Model No. | Bearing | Frequency | Voltage | Current | Rated Input Power | Air Flow | Static pressure | Noise | Speed | |
| (Hz) | (V) | (A) | (W) | (CFM) | (Inch-H2O) | (dBA) | (RPM) | |||
| RGC17251B1HA | Dual Ball | 50Hz | 100~125V | 0.25 | 30 | 166 | 0.69 | 57 | 2850 | |
| 60Hz | 0.26 | 31 | 168 | 0.83 | 61 | 3400 | ||||
| RGC17251B2HA | 50Hz | 220~240V | 0.16 | 36 | 166 | 0.69 | 57 | 2850 | ||
| 60Hz | 0.17 | 35 | 198 | 0.83 | 61 | 3400 | ||||
All the specifications prior to the notice of election to the council is a reference only, and they are without a change in a non-subject.
The custom of the requirements of a variety of different and lead to different kinds of matter, even when he was ignorant.
Provider for reference data that they are only one. For future information, please contact us.
| Product Name | AC Axial Cooling Fan Capacitor Type |
| Warranty | 1 Year |
| After-sales Service | Free Spare Parts |
| Frame | Aluminum Alloy, Painted Black |
| Impeller | Retardant Thermoplastic In Black |
| Motor | Capacitor-Run External rotor induction |
| Waterproof Grade | IP 55 |
| Certification | CE, RoHS |
| Lifetime | 40000 Hours |
| Customized Support | OEM, ODM |
| Storage Temperature | -20℃~80℃ |
| Operating Temperature | -10℃~70℃ |
| Power Connection | Terminal, Lead Wire |
Applicable: Manufacturing Plant, Machinery Repair Shops, etc
Power Connection:
Terminal
Lead Wire

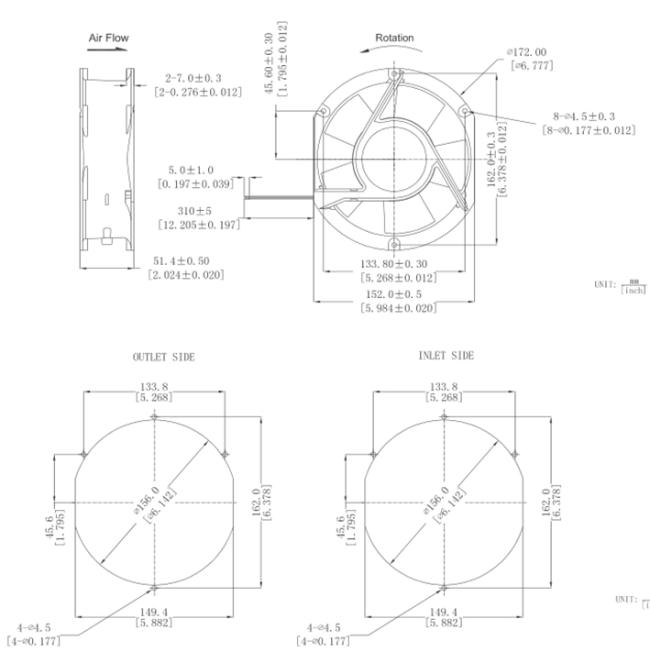

Drawing:

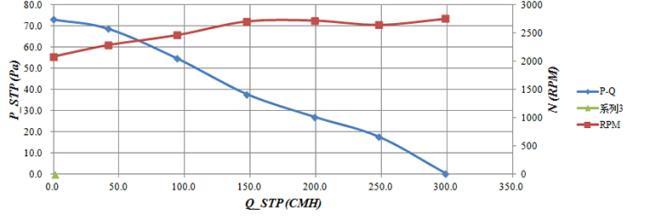

Characteristic Curve:
Parts:
