48V 190mm Centrifugal Turbine Cooling Fan Aluminium High Pressure
Customized 190x190x78mm Centrifugal Fan Frequency Converter Turbine Centrifugal Fan 19078
What is a centrifugal fan used for?
Because of the high pressure they create, centrifugal fans are ideal for high-pressure applications such as drying and air conditioning systems.
As all of their moving parts are enclosed and they also have particulate reduction properties that make them ideal for use in air pollution and filtration systems.
What is the difference between a centrifugal fan and a blower?
The casing in the center of the wheel uses centrifugal force to propel the air forward into the open.
A fan circulates air around an entire room or space. A blower circulates the air only on a specific or pointed area.
It is used less pressure to produce large amounts of gas.
DC Centrifugal Cooling Fan RG-C19078
Energy Saving, Noise Reduction, Soft Wind, Long Lasting
Basic Parameter:
| Model No. | Bearing | Voltage | Operating Voltage | Current | Rated Input Power | Air Flow | Max. Air Pressure | Noise | Speed | ||||
| (V) | (V) | (A) | (W) | (m3/h) | (CFM) | (mm-H2O) | (Pa) | (dBA) | (RPM) | ||||
| RG-C12025L24B(S) | Ball/Sleeve | 24 | 18~26.5 | 1.0 | 24.0 | 316.7 | 186.5 | 41.5 | 407.2 | 42.8 | 1900 | ||
| RG-C12025M24B(S) | 2.1 | 54.0 | 433.3 | 255.2 | 56.8 | 557.2 | 58.6 | 2600 | |||||
| RG-C12025H24B(S) | 4.7 | 112.8 | 583.4 | 343.6 | 76.5 | 750.0 | 78.9 | 3500 | |||||
| RG-C12025L48B(S) | 48 | 36~54 | 0.4 | 19.2 | 300.0 | 176.7 | 39.0 | 385.7 | 40.6 | 1800 | |||
| RG-C12025M48B(S) | 1.0 | 48.0 | 433.3 | 255.2 | 56.8 | 557.2 | 58.6 | 2600 | |||||
| RG-C12025H48B(S) | 2.5 | 120.0 | 583.4 | 343.6 | 76.5 | 657.2 | 78.9 | 3500 | |||||
The different customer requirements and different raw materials will lead to different data.
All designs and specifications are for reference only and are subject to change without prior notice.
The provider data are used for reference only. For future information, please contact us.
| Product name | DC Centrifugal Cooling fan |
| Working Voltage | DC 24V/ 48V |
| Size | 190*190*78(mm) |
| Frame Type | Aluminium Alloy |
| Impeller Type | Black PBT (UL94V-0) |
| Operation Temperature | -10 ℃ ~ 70 ℃ (Ordinary humidity) |
| Storage Temperature | -40 ℃ ~ 80 ℃ (Ordinary humidity) |
| Bearing Type | Ball Bearing/Sleeve Bearing |
Application:
* Automation Equipment
* Electric Power System
* Welding Machine
* Air purifier
* LED Outdoor Display
* Communications Equipment
* Variable-frequency Drive
* Computer Case, Laptop
* Cloud Computing
* Medical Equipment
* Home Electric Appliance
* Bitcoin Mining Machine
* Robot Sweeper
* 3D printer
* Refrigerator, freezer, Wine refrigerator
* Humidifier

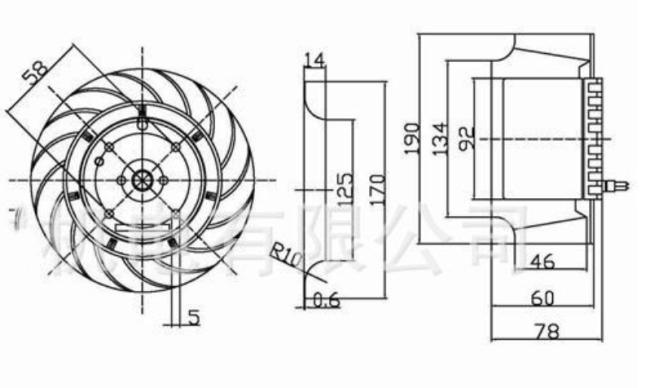

Drawing:

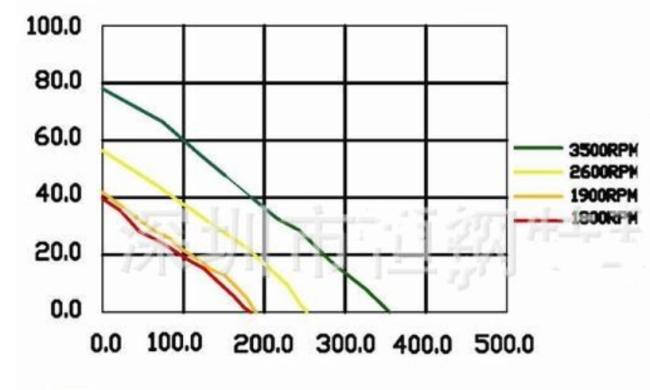

Characteristic Curve:
