AC Axial Cooling Fan 80x80x25mm 110V 220V AC Cooling Fan 8025 With Shaded Pole Induction Motor

What is an AC axial fan?
Axial AC fans are a type of fan that blows air along the axis of the fan—that is, the fan's curved blades force air to move in parallel with the shaft on which the blades rotate. ...
Some of the typical applications for AC cooling fans include Industrial equipment. Manufacturing machines. White goods.

What are axial fans used for?
In general, an axial-flow fan is suitable for a larger flow rate with a relatively small pressure gain and a centrifugal fan for a comparatively smaller flow rate and a large pressure rise. They are used to supply fresh air, suck air from return air trenches, suck air from rotary filters, exhaust air out, etc.

                                                AC Axial Cooling Fan RG8025

                          Energy Saving       Noise Reduction      Soft Wind        Long Lasting

Basic Parameter:

All designs and specifications are for reference only and are subject to change without prior notice.

The different customer requirements and different raw materials will lead to different data.

The provider data are used for reference only. For future information, please contact us.

Applicable: Manufacturing Plant, Machinery Repair Shops, etc

Power Connection:

                                           Terminal

                                        Lead Wire

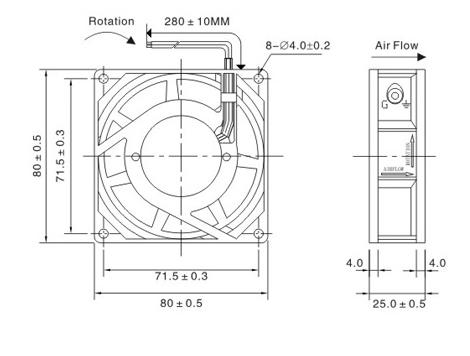

Drawing:

Characteristic Curve:

Customized

1. Nominal voltage:

DC (3V, 5V, 7V, 9V, 12V, 18V, 24V, 48V ...)

AC (100-125v, 220-240v, 380v)

2. The airflow, air pressure, speed, and rated voltage can be customized according to customer requirements.

3. Sleeve bearing: 30000 hours at 25 ° C temperature

Hypro bearing: 30,000 hours at 40 ° C temperature

Ball-bearing NMB: 50,000 hours at 40 ° C temperature

4.Parameter: speed (RPM), airflow (CFM), noise (dBA),

5. Power Joint: Terminal

Lead wire (+, -, tachometer sensor, lockout alarm, speed control)

6. Water and dust resistance: IP xx (IP 68 is the highest level)

7. Private Labeling: All axial fans can be privately labeled.

8. 2-wire, 3-wire, or 4-wire (PWM / FG / RD function) can be made if required.

Motor Protection

1. Ball-bearing and IC are imported from Japan, Germany

2. Environmentally friendly and high temperature resistant

3. Motor lock flow protection and reverse connection protection

4. Waterproof for IP68

5. PWM speed regulation

6. FG signal output

    RD alarm function

Parts:

Payment:

1.Trade Assurance: In the first order, we suggest you use Trade Assurance.

2.T/T: If stocks,100% payment before shipping; if customized order, 30% deposit before production and balance 70% should be paid before delivery.

3.Western Union, Money Gram, Paypal, all available.

4.L/C: for large order.

Shipping:

1.ln general, we use international express, DHL, UPS,FedEx,EMS,TNT, etc.Large order: by air or sea, you should choose it.

2. if you have your own forwarder, please tell us the detailed information.
